Yealink W76P User Manual

2

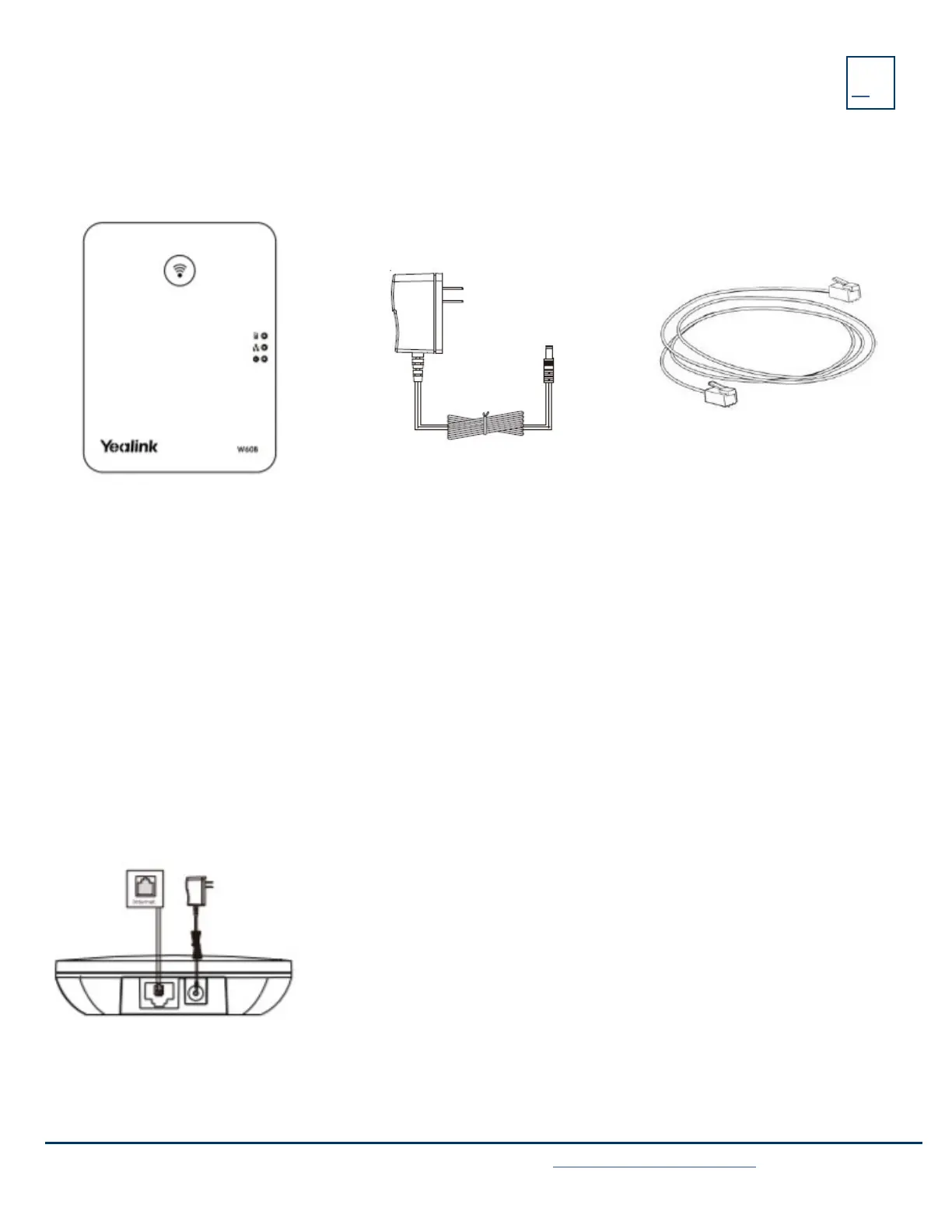

INSTALLING YOUR YEALINK W70B BASE/W56H IP DECT PHONE
YEALINK W70B BASE BASE POWER ADAPTER
ETHERNET CABLE
CONNECTING THE W70B BASE STATION
You have two options to power the base station. Your System Administrator will advise you which one to use.
+ AC power (Optional)
+ Power over Ethernet (PoE)
NOTE: Pay attention to the radio coverage of the base station. It is up to approximately 1000 feet in unobstructed
outdoor areas and up to approximately 165 feet inside buildings.
Do not set up the base station in a damp room, and keep it away from water.
AC Power (Optional)
+ Connect the DC plug on the power adapter to the DC5V port on the base station and connect the other end of the
power adapter into an electrical outlet.
+ Connect the included or any standard Ethernet cable between the Internet port on the base station and the Internet port in
your network or the switch/hub device port.
NOTE: The base station should be used with the original power adapter (5V/600mA) only. The use of a third-party
power adapter may cause damage to the base station.
Need support? Connect with us at www.northland.net/support or
Dial 4357 (HELP) or 315-671-6262 to speak to a Northland Training Representative

Yealink W76P Specifications

General

Mounting	Desk/Wall
Device lock	Yes
Handset type	Wireless handset
Product type	IP mobile phone
Product color	Gray
Wi-Fi	-
Networking standards	IEEE 802.1af
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	1.9 GHz
Lines quantity	20 lines
Phonebook capacity	1000 entries
AC adapter input voltage	100 - 240 V
Number of function keys	6
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	- pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Base dimensions	130 x 100 x 25.1 mm
Handset dimensions (WxDxH)	175 x 53 x 20.3 mm
