NeoGate TA Series Installation Guide

13/20

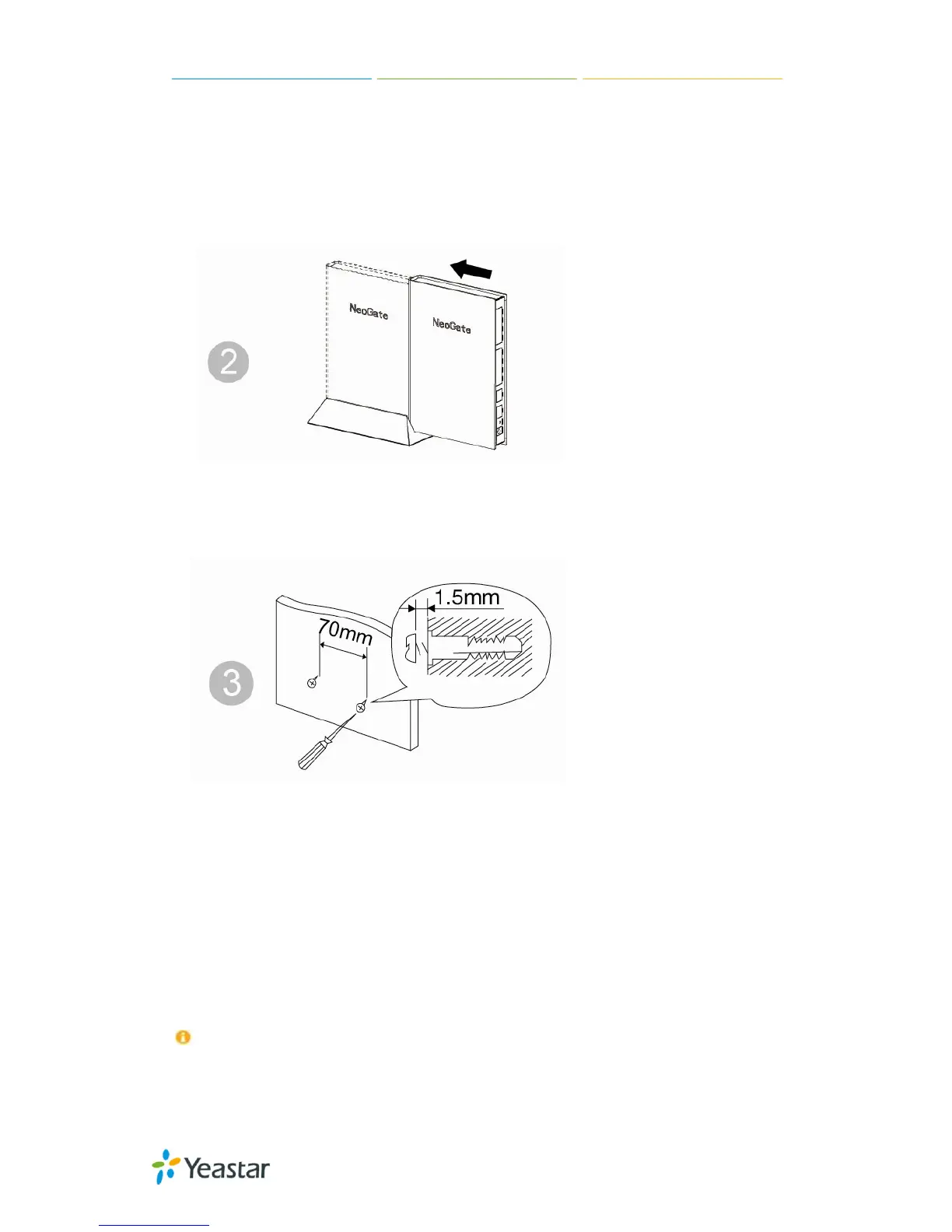

Push the NeoGate device into

the stand.

Fix two screws on the wall and

then you could mount the

stand to the wall.

3.2.2 Connection of Ethernet Ports

NeoGate TA provides one 10/100M adaptive RJ45 Ethernet LAN port.

 LAN Port Connection

Connect one end of a network cable to the LAN port of the Gateway, and the other end to any

port of company’s LAN switch/router.

If the LAN port is connected to PC directly (not via a switch), please use cross-over cable.
