24
www.yellowtec.com I info@yellowtec.com

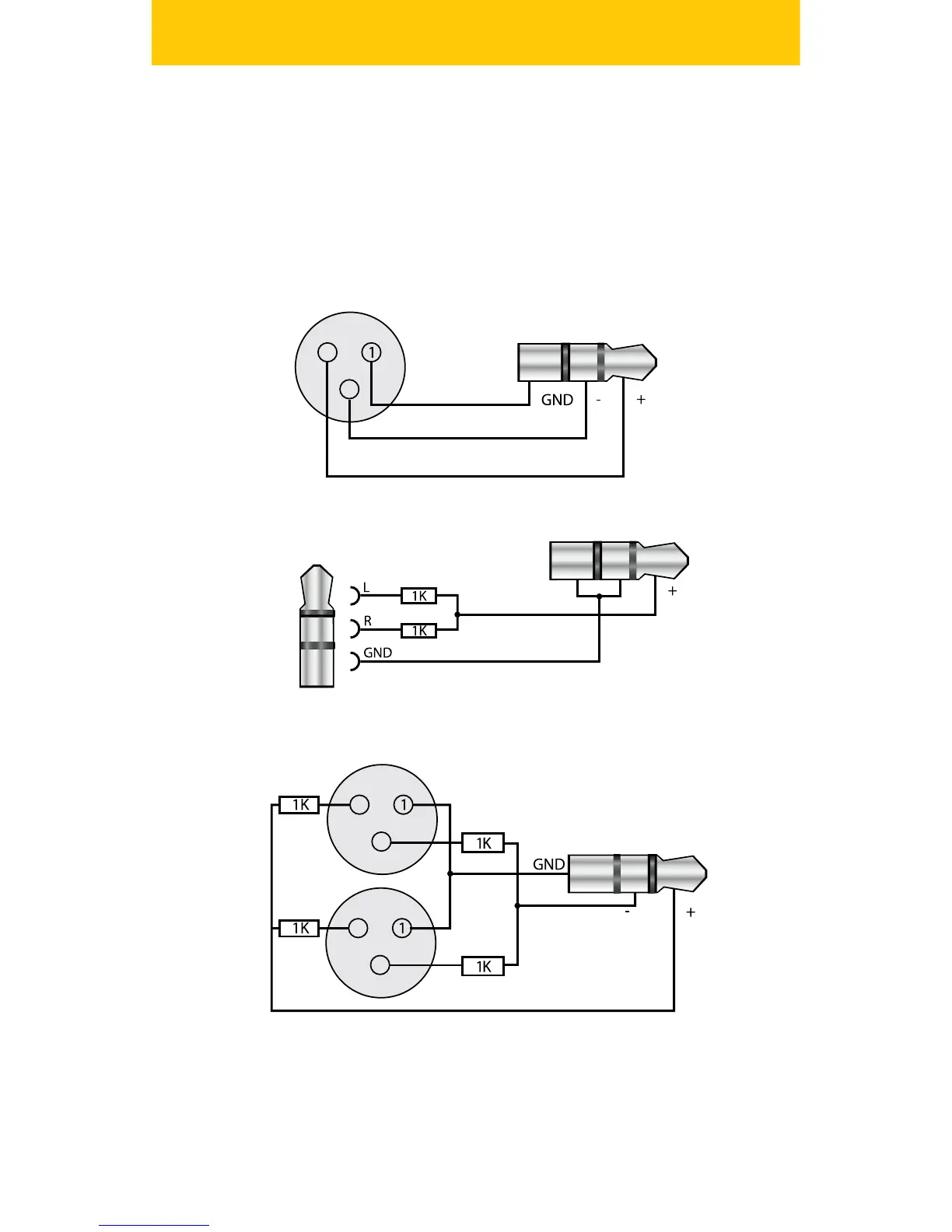

Line in
The Line Input of your iXm is a balanced mono input. The input is a
3.5mm jack marked yellow on the Port Panel. The drawings show how
to connect with the input. When your signal source is on an XLR con-
nector you will need an adapter as shown.
How do I use my line in jack?
2
3
XLR
balanced
Mono
balanced
Mono
Stereo
Mono
2
3
2
3
XLR
balanced
Stereo
balanced
Mono
