Yeti ARC User Manual

ARC | OWNER’S MANUAL
5

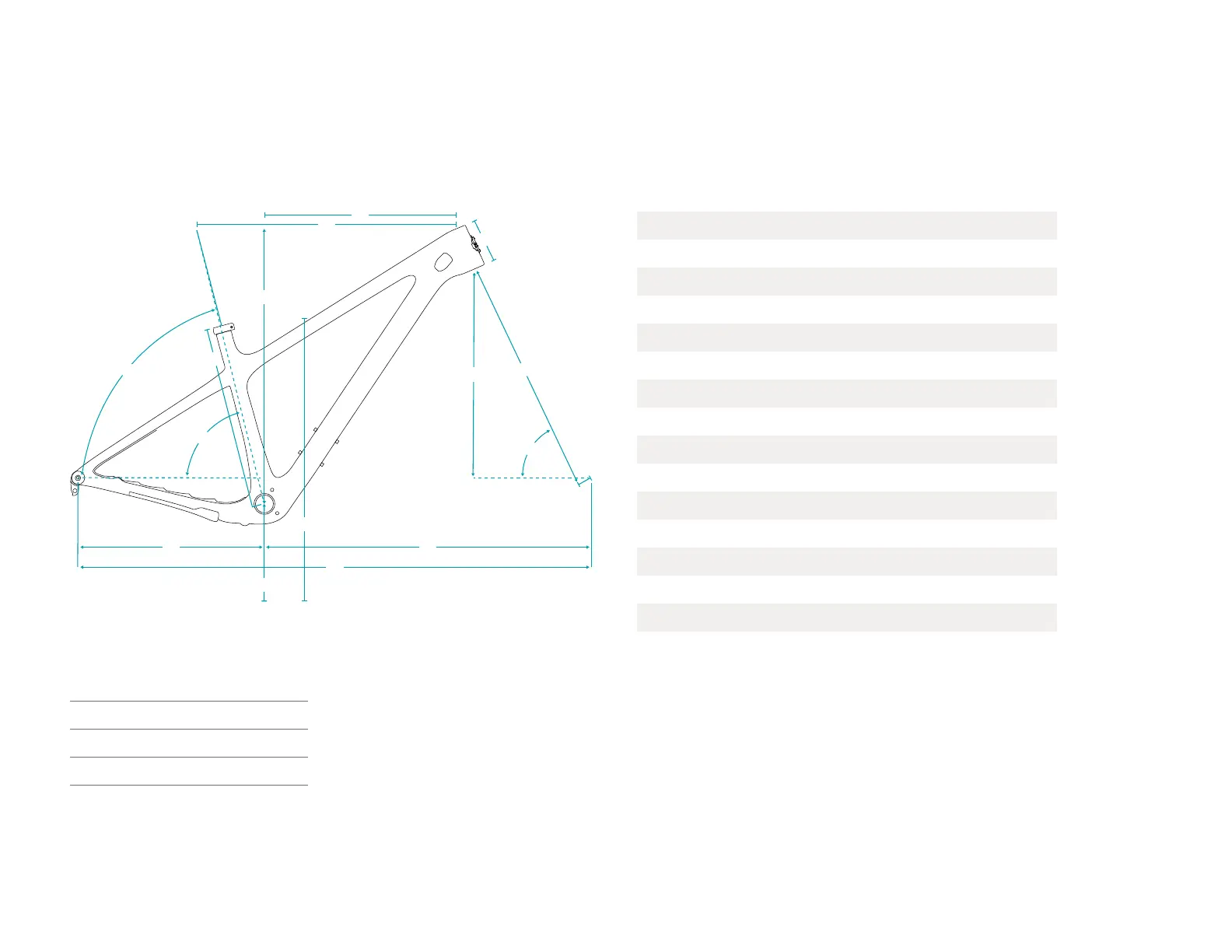

GEOMETRY ARC
FIT
SMALL
5’1” (155 CM) – 5’7” (170 CM)
MEDIUM
5'5" (165 CM) – 5'11" (180 CM)
LARGE
5'10" (178 CM) – 6'3" (191 CM)
X-LARGE
6’1” (185 CM) – 6’7” (200 CM)
B
M
A
D
N
F
G
H
I
O
P
L
J
C
K
E
A SEAT TUBE LENGTH
380 410 450 495
B EFF. TOP TUBE LENGTH
577 604 626 653
C HEAD TUBE ANGLE˚
67.0 67.0 67.0 67.0
D EFF. SEAT TUBE ANGLE˚
76.0 76.0 76.0 76.0
E ACTUAL SEAT TUBE ANGLE˚
75.0 75.0 75.0 75.0
F CHAINSTAY LENGTH
433 433 433 433
G WHEELBASE
1143 1172 1194 1223
H ESTIMATED BB HEIGHT
310 310 310 310
I STANDOVER
723 722 720 720
J HEAD TUBE LENGTH
95 103 110 120
K FORK (AXLE TO CROWN)
544 544 544 544
L FORK (OFFSET)
44 44 44 44
M STACK
632 639 645 654
N REACH
420 445 465 490
O FRONT CENTER
710 739 761 790
P VERTICAL FORK TRAVEL
120 120 120 120
130MM FORK SM MD LG XL

Yeti ARC Specifications

General

Suspension Type	Hardtail
Frame Material	Carbon
Wheel Size	29 inches
Brake Type	Disc
Drivetrain	1x12
Fork	Fox
Rear Derailleur	SRAM
Brakes	SRAM
Weight	10.5 kg
