FRAME ASSEMBLY
TOOLS NEEDED
• 2.5mm allen key
• 4mm allen key
• 8mm allen key
• Torque wrench
• Grease

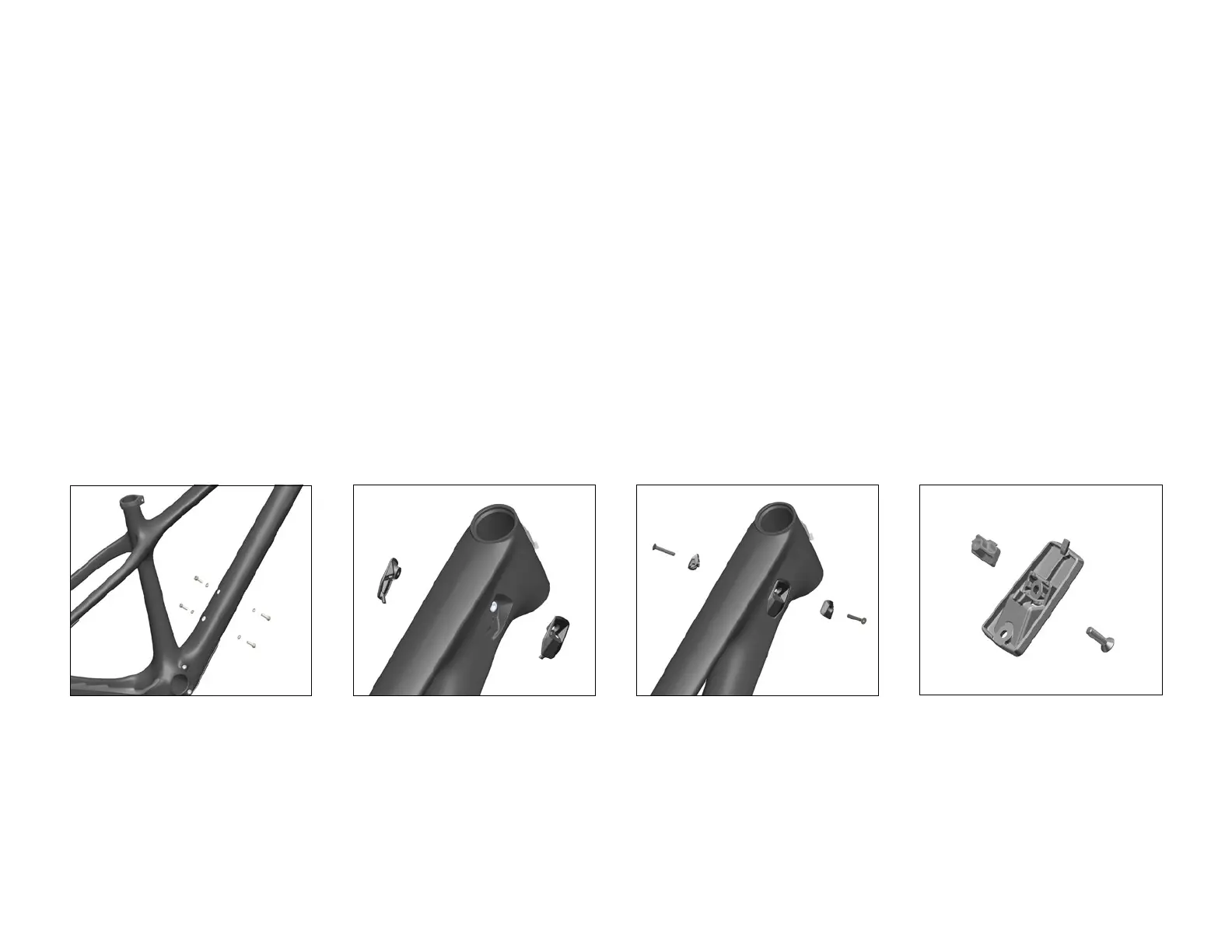

01
Grease 4x H20 Bolts (2.2) and install with
washers (2.1) to frame downtube.
Torque: 4-5 Nm
02
Place a Head Tube Cable Port Cover (2.11) into
each recess behind the head tube.
03
Place a Double Port Clamp (2.12) into the
nondrive side cover and a Single Port Clamp
(2.11) into the drive-side cover. Secure with M4
x 25L screws. Tighten until snug. Hardware can
be torqued to 2-3 Nm after housing installation.
04
Assemble a Lower Port Clamp (2.15) to the
Down Tube Port Cover (2.14) using a Flat Head
M4 x 16L screw. Hardware can be torqued to
2-3 Nm after housing installation.
YETI TIPS
Make sure your tools are in good condition.
A worn allen key can round the hex on a
bolt not allowing for proper torque.
Torque settings are listed throughout the
instructions and on page 7 of this manual.
It is important to prep all bolt threads.
The instructions denote whether to use a
Loctite compound or grease. Reference
Exploded View for assembly part locations
listed in parentheses.
WARNING: Service on Yeti bicycles requires
special knowledge and tools. Yeti Cycles
recommends that all service and repairs be
performed by an authorized Yeti Dealer.
