ARC | OWNER’S MANUAL
9
07
Install Universal Hanger (2.4) into frame. Do not
use grease. Note that hanger cap bolt is reverse
threaded.
Torque: 25 Nm
08
Note that different Port Clamps may be used for
different congurations of shifter and dropper
seatpost.
An extra single-port and blank cover are
provided depending on your needs.
FRAME ASSEMBLY IS COMPLETE
06

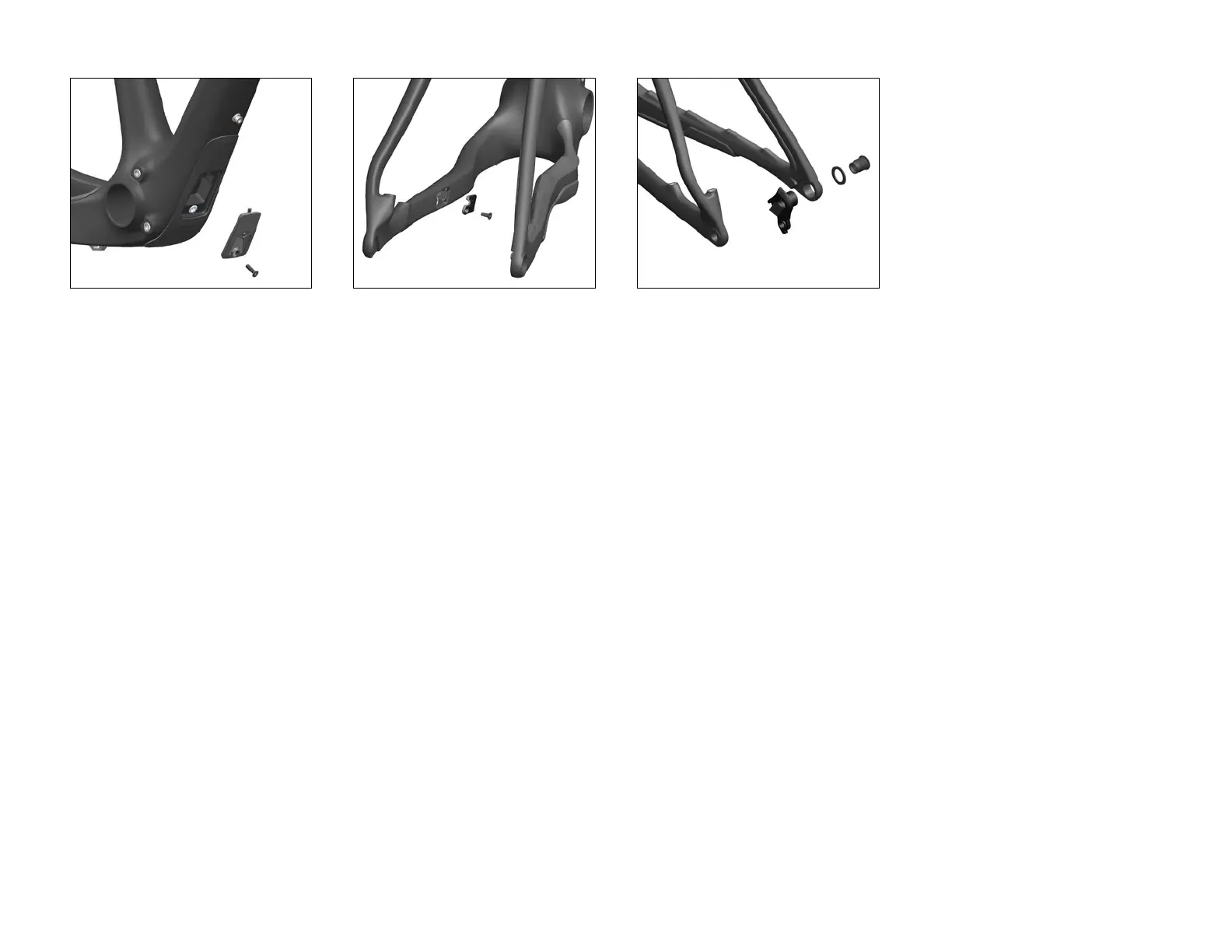

Install the Chainstay Cable Port Cover (2.7) to
the non-drive side chainstay port and secure
with Flat Head M4 x 10L. Hardware can be
torqued to 2-3 Nm after housing installation.
05
Install the Down Tube Port Cover (2.14) into the
frame with a Flat Head M4 x 16L screw (2.16).
Torque: 3 Nm
