SB160 | OWNER’S MANUAL
5

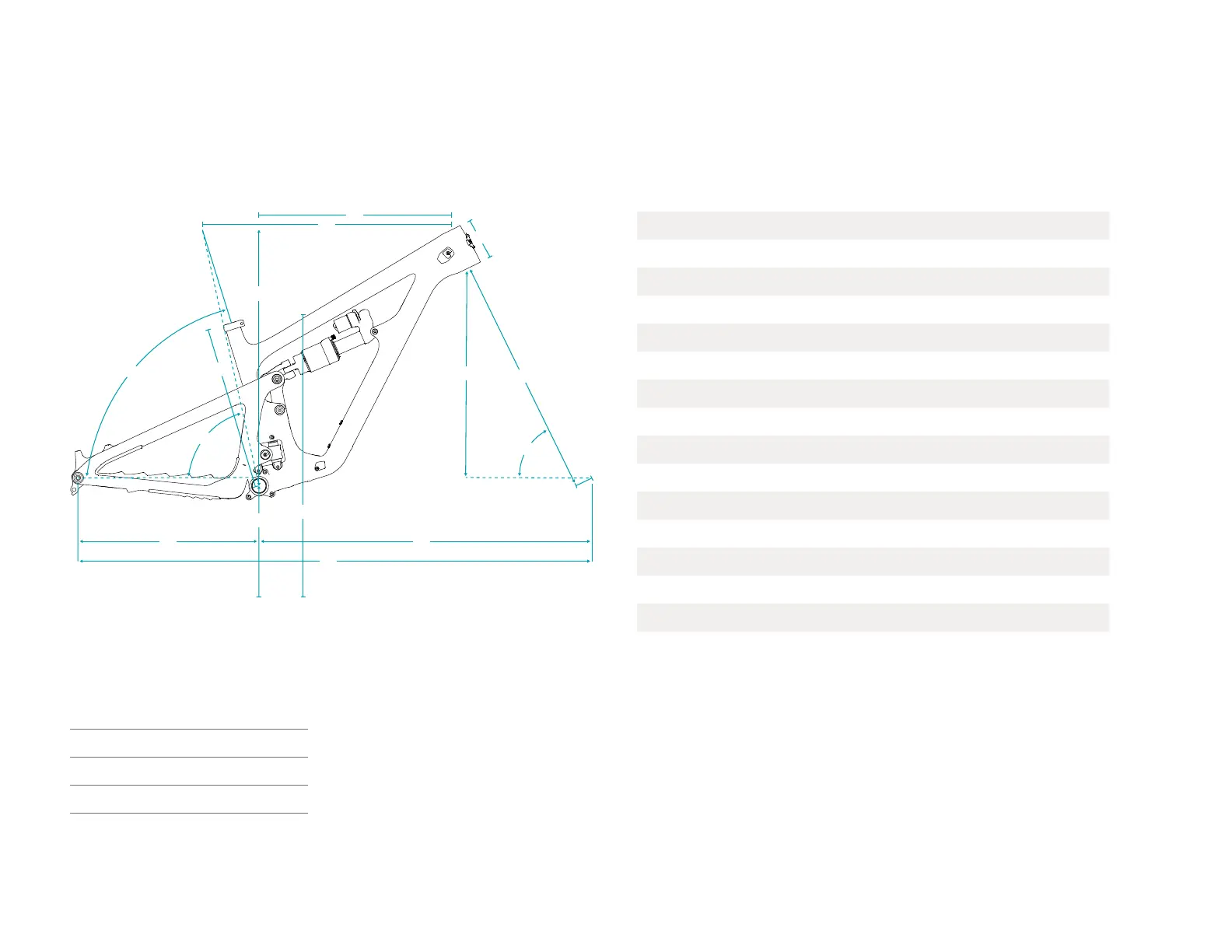

GEOMETRY SB160
FIT
SMALL
5’1” (155 CM) – 5’7” (170 CM)
MEDIUM
5'5" (165 CM) – 5'11" (180 CM)
LARGE
5'10" (178 CM) – 6'3" (191 CM)
X-LARGE
6’1” (185 CM) – 6’7” (200 CM)
XX-LARGE
6'5" (195 CM) – 6'11" (210 CM)
B
M
A
D
N
F
G
H
I
O
P
L
J
K
C
E
A SEAT TUBE LENGTH
365 400 440 470 485
B EFF. TOP TUBE LENGTH
571 602 624 651 670
C HEAD TUBE ANGLE˚
64 64 64 64 64
D EFF. SEAT TUBE ANGLE˚
77.5 77.5 77.5 77.5 77.5
E ACTUAL SEAT TUBE ANGLE˚
72.1 72.6 72.7 73.1 73.6
F CHAINSTAY LENGTH
437 439 441 443 445
G WHEELBASE
1211 1246 1270 1302 1329
H ESTIMATED BB HEIGHT
353 353 353 353 353
I STANDOVER
735 744 750 756 757
J HEAD TUBE LENGTH
95 101 107 118 140
K FORK (AXLE TO CROWN)
588 588 588 588 588
L FORK (OFFSET)
44 44 44 44 44
M STACK
615 620 625 635 655
N REACH
435 465 485 510 525
O FRONT CENTER
774 807 829 859 884
P VERTICAL FORK TRAVEL
153 153 153 153 153
170MM FORK SM MD LG XL XXL
