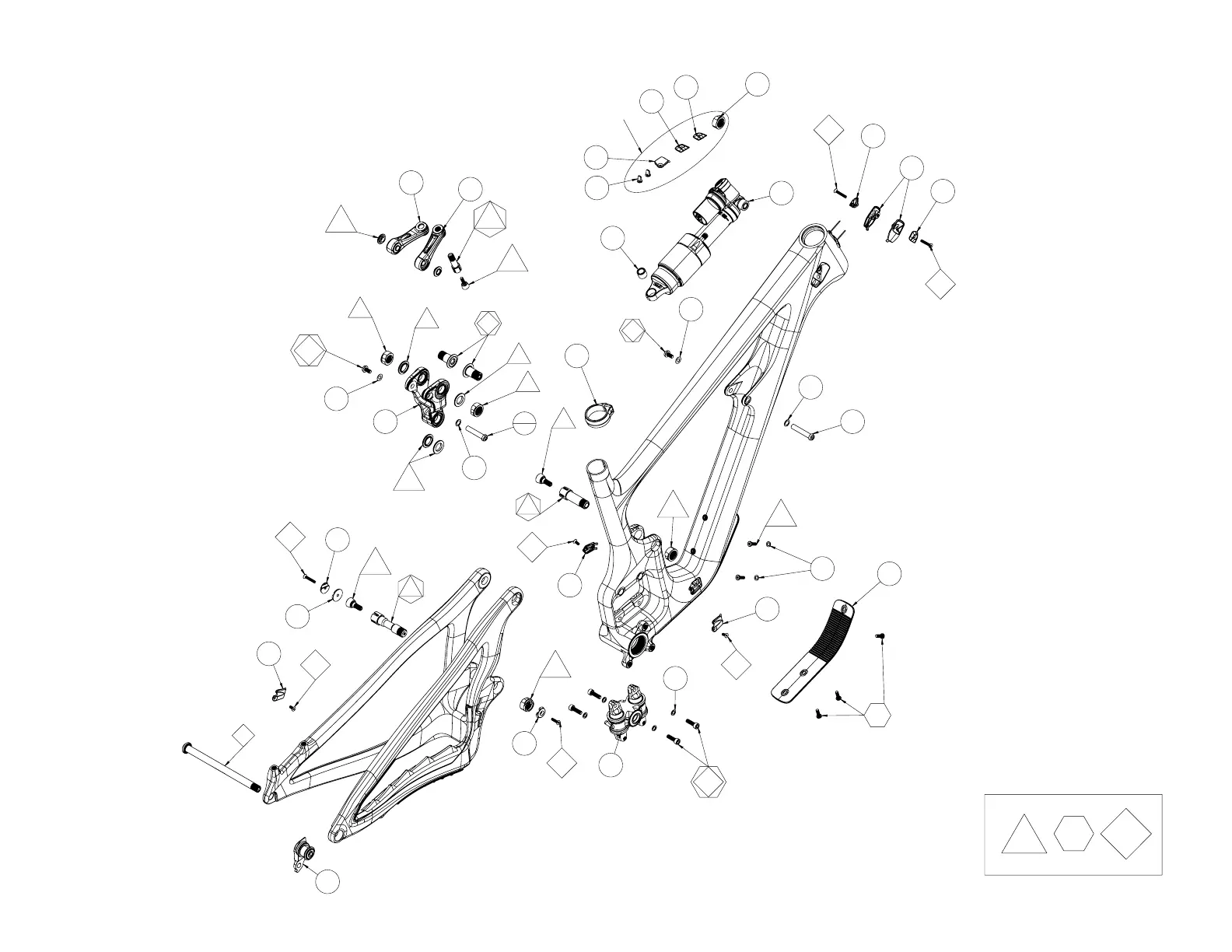

Yeti SB160 - Exploded View Diagram; Parts Identification and Key

SB160 | OWNER’S MANUAL
17
4
3.32
3.30
3.26
3.31
3.26
3.18
3.21
3.19
3.24
3.10
3.14
3.22
3.23
3.15
3.3
3.2
3.5
3.17
1
3.21
3.5
3.16
3.20
3.5
3.2
3.19
3.4
3.9
3.33
3.29
3.1
3.9
3.6
3.8
3.26
3.29
3.33
3.7
3.8
3.25
3.11
3.12
3.13
3.34
3.27
3.33
3.29
3.27
3.28
3.2
3.20
3.35
EXTRA PARTS
SUPPLIED IN KIT
3.38
3.36
3.31
3.2
3.37
3.40
3.39
NYLON
PATCH
LOCTITE
GREASE
PREP KEY
ITEM NO. STOCK CODE DESCRIPTION
TORQUE
[NM]
UNIT QTY.
1 ASSY, SB160 FT, PURCH 1
1.1 [MASTER] FRONT TRIANGLE 1
2
ASSY, SB160 RT, PURCH 1
2.1 [MASTER] SWINGARM 1
3
SMALL PARTS KIT, SB160 G1.3 1
3.1 300030361 COLLET AXLE, 15MM X 58.5L, M15X1.5 20 1
3.2 300030362 COLLET NUT, M15, 9.5 THICK, ROUND CAP 4
3.3 300030364
SHOULDER SCREW, 15 X 27.35L, M15
THREAD, SS PIVOT
20 2
3.4 300030376 COLLET AXLE 15MM, 43.5L 20 1
3.5 300030365 RACE EXTENDER, 25 X 15.1 X 3.35 4
3.6 300030366
CLAMP BASE, 23MM X 3.5T, BRAKE
HOUSING
1
3.7 300030367
COLLET NUT, M15 X 1.5, SHIFTER HOSE
CLAMP
1
3.8 300030368 CLAMP CAP, HOUSING, G1.3 2
3.9 300030378
COLLET WEDGE SUB-ASSEMBLY 15MM, M4
THREADED WEDGE BOLT
14 2
3.10 300040486 COLLET WEDGE SUB-ASSEMBLY 10MM 8 1
3.11 300030057 SHCS, M6 X 1.0, 20L 12 4
3.12 300030214 WASHER 6.3 X10.0 X 1.0 MM 4
3.13 200020422
ASSY, SWITCH INFINITY, G1.3 MECHANISM,
FACTORY SERIES
1
3.14 300030296 COLLET AXLE M10X1.0, 30.5L X 10.5T 15 1
3.15 300030375 SHOCK EXTENDER BEARING EXTENSION 2
3.16 200020409 ASSY, SB160 G1.3 LINK 1
3.16.1 300040540 LINK, 160 1
3.16.2
HNA00000BA0
0000000000
BEARING, 3802-2RS, 15 X 24 X 7 4
3.16.3 300030369 SPACER, 15.2 X 17 X 7.3L 1
3.17 300030372 BOLT, FEMALE, 8 X 41.0, M6 THREAD 1
3.18 300030371 BOLT, FEMALE, 8 X 45.0, M6 THREAD 1
3.19 300030370 SCREW, MALE, M6X12.0MM 10 2
3.20 300030062 WASHER 6.5 X 12.5 X 0.5 MM 2
3.21 300030069 WASHER 8.5 X 12.5 X 0.5 MM 2
3.22 200020323 ASSY, SHOCK EXTENDER_60MM, BOTTOM 1
3.22.1 300040503 SHOCK EXTENDER BOTTOM [60MM] 1
3.22.2 300020032 BEARING, 398 MAX DBL, 8 X 19 X 10/11 1
3.23 200020322 ASSY, SHOCK EXTENDER_60MM, TOP 1
3.23.1 300040502 SHOCK EXTENDER TOP [60MM] 1
3.23.2 300020032 BEARING, 398 MAX DBL, 8 X 19 X 10/11 1
3.24 300030374 SHOCK EYELET SPACER 1
3.25 300030174 SCREW, FH, M4 X 0.7, 16L 2.5 1
3.26 300030177 SCREW, FH, M4 X 0.7, 25L 2.5 3
3.27 300030357 SHCS, LOW PROFILE, M5 X 0.8, 16L 5 5
3.28 300030358
WASHER 5.2 X 8.8 X 1.0 MM, STAINLESS ED
BLACK
2
3.29
300040518 COVER-CABLE PORT, SINGLE, RIGHT EXIT 3
3.30 300040522 CLAMP, HT PORT DOUBLE, PA6 1
3.31 300040521 CLAMP, HT PORT SINGLE, PA6 2
3.32 300040524 CABLE PORT COVER, HEAD TUBE, 2 PIECE 2
3.33 300030173 SCREW, FH, M4 X 0.7, 10L 2.5 3
3.34 300060080 SRAM UNIVERSAL HANGER 25 1
3.35 300060078 ASSY, YETI SEAT CLAMP, BOLT ON, 31.6 1
3.36 300040523 COVER, HT PORT, BLIND, PA6 1
3.37 200020418 DT GUARD, MY23 OUTER, PA/ABS 1
3.38 300040542 COVER-CABLE PORT, BLANK, RIGHT EXIT 1
3.39 300040510 FRAME PLUG, CABLE PORT 2
3.40 100425009 AXLE, M12X1 X 174L, BOLT-ON, BLACK 15 1
4
SB160 SHOCK ASSEMBLY 1
REVISIONS
REV DESCRIPTION DATE
A INITIAL RELEASE 5/20/2022
B
ITEMS 3.39, 3.40 ADDED; ITEM 3.38 S/C WAS 300040518, IS NOW
CORRECTED TO 300040542; ITEM 3.13 STOCK CODE ADDED
5/26/2022
A A
B B
C C
D D
E E
F F
G G
H H
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS IN MILLIMETERS
SIZE:
TITLE:
DWG. NO.
D
LENGTH
<5
5-20
20-100
>100
ANGLE
SCALE: 1:3
SHEET 1 OF 1
REV
ENGINEERING
DRAWN
APPROVAL STAMP
TOLERANCES
09268_Manual
B
ALL MODIFICATIONS MUST BE APPROVED BY YETI CYCLES
TOL.
0.1
0.2
0.5
1
0.5
DATE
5/26/2022
G. ARAMAYO
P. RUSSELL
EXPL, SB160 ASSY, MANUAL
EXPLODED VIEW
3.10
3.11
3.12
3.23
3.8
3.7
3.25
3.18
3.21
3.31
3.27
3.26
3.25
3.2
1
3.27
3.31
3.4
3.9
3.20
3.19
3.16
3.15
3.22
4
3.1
3.9
3.6
3.8
3.24
3.32
3.31
3.27
3.13
3.3
3.17
3.2
3.5
3.5
3.21
3.14
3.20
3.19
3.2
3.5
3.30
3.29
3.24
3.24
3.28
1.1
2.1
3.33
3.35
EXTRA ITEMS SUPPLIED IN KIT
3.36
3.34
3.29
3.2
3.37
3.38
PREP KEY
GREASE
LOCTITE
NYLON
PATCH
ITEM NO. STOCK CODE DESCRIPTION
TORQUE
[NM]
UNIT QTY.
1
SB120 FRONT TRIANGLE ASSEMBLY
1
1.1
SB120 FRONT TRIANGLE ASSEMBLY
1
1.1.4.6.9 1
2
SB120 SWINGARM ASSEMBLY
1
2.1
SB120 SWINGARM
1
3
SB120 SMALL PARTS ASSEMBLY
1
3.1 300030361 COLLET AXLE, 15MM X 58.5L, M15X1.5 20 1
3.2 300030362
COLLET NUT, M15, 9.5 THICK, ROUND
CAP
4
3.3 300030364
SHOULDER SCREW, 15 X 27.35L, M15
THREAD, SS PIVOT
20 2
3.4 300030376 COLLET AXLE 15MM, 43.5L 20 1
3.5 300030365 RACE EXTENDER, 25 X 15.1 X 3.35 4
3.6 300030366
CLAMP BASE, 23MM X 3.5T, BRAKE
HOUSING
1
3.7 300030367
COLLET NUT, M15 X 1.5, SHIFTER HOSE
CLAMP
1
3.8 300030368
CLAMP CAP, HOUSING
2
3.9 300030378
COLLET WEDGE SUB-ASSEMBLY 15MM,
M4 THREADED WEDGE BOLT
14 2
3.10 300030057 SHCS, M6 X 1.0, 20L 12 4
3.11 300030214 WASHER 6.3 X10.0 X 1.0 MM 4
3.12 200020422
ASSY, SWITCH INFINITY,
MECHANISM, FACTORY SERIES
1
3.13 300030375
SHOCK EXTENDER BEARING
EXTENSION
2
3.14 200020420
SB120 LINK ASSEMBLY
1
3.14.1 300040539
SB120 LINK
1
3.14.2
HNA00000BA0
0000000000
BEARING, 3802-2RS, 15 X 24 X 7 4
3.14.3 300030369 SPACER, 15.2 X 17 X 7.3L 1
3.15 200020421 ASSY, SHOCK EXTENDER, SB120 1
3.15.1 300040543
SHOCK EXTENDER, SB120, 25MM
1
3.15.2 300020032
BEARING, 398 MAX DBL, 8 X 19 X
10/11
2
3.16 300030377
SHOULDER SCREW, M10 X 23L, SHOCK
EYELET
12 1
3.17 300030372 BOLT, FEMALE, 8 X 41.0, M6 THREAD 1
3.18 300030371 BOLT, FEMALE, 8 X 45.0, M6 THREAD 1
3.19 300030370 SCREW, MALE, M6X12.0MM 10 2
3.20 300030062 WASHER 6.5 X 12.5 X 0.5 MM 2
3.21 300030069 WASHER 8.5 X 12.5 X 0.5 MM 2
3.22 300030374 SHOCK EYELET SPACER 1
3.23 300030174 SCREW, FH, M4 X 0.7, 16L 2.5 1
3.24 300030177 SCREW, FH, M4 X 0.7, 25L 2.5 3
3.25 300030357 SHCS, LOW PROFILE, M5 X 0.8, 16L 5 5
3.26 300030358
WASHER 5.2 X 8.8 X 1.0 MM, STAINLESS
ED BLACK
2
3.27 300040518
COVER-CABLE PORT, SINGLE, RIGHT
EXIT
3
3.28 300040522 CLAMP, HT PORT DOUBLE, PA6 1
3.29 300040521 CLAMP, HT PORT SINGLE, PA6 2
3.30
300040524
CABLE PORT COVER, HEAD TUBE, 2
PIECE
2
3.31 300030173 SCREW, FH, M4 X 0.7, 10L 2.5 3
3.32 300060080 SRAM UNIVERSAL HANGER 25 1
3.33 300060078 ASSY, YETI SEAT CLAMP, BOLT ON, 31.6 1
3.34 300040523 COVER, HT PORT, BLIND, PA6 1
3.35 200020418 DT GUARD, MY23 OUTER, PA/ABS 1
3.36 300040542
COVER-CABLE PORT, BLANK, RIGHT
EXIT
1
3.37 300040510 FRAME PLUG, CABLE PORT 2
3.38 100425009 AXLE, M12X1 X 174L, BOLT-ON, BLACK 15 1
4
SB120 SHOCK SUB ASSEMBLY 1
REVISIONS
REV DESCRIPTION DATE
A INITIAL RELEASE 5/20/2022
B
ITEMS 3.37, 3.38 ADDED; ITEM 3.36 S/C WAS 300040518, IS NOW
CORRECTED TO 300040542; ITEM 3.12 STOCK CODE ADDED
5/26/2022
A A
B B
C C
D D
E E
F F
G G
H H
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS IN MILLIMETERS
SIZE:
TITLE:
DWG. NO.
D
LENGTH
<5
5-20
20-100
>100
ANGLE
SCALE: 1:4
SHEET 1 OF 1
REV
ENGINEERING
DRAWN
APPROVAL STAMP
TOLERANCES
09228_Manual
B
ALL MODIFICATIONS MUST BE APPROVED BY YETI CYCLES
TOL.
0.1
0.2
0.5
1
0.5
DATE
5/26/2022
G. ARAMAYO
P. RUSSELL
EXPL, SB20 ASSY, MANUAL
