Yeti SB160 - Switch Infinity V2 Bearing Assembly; Bearing Removal (V2); Bearing Installation (V2)

SB160 | OWNER’S MANUAL
12

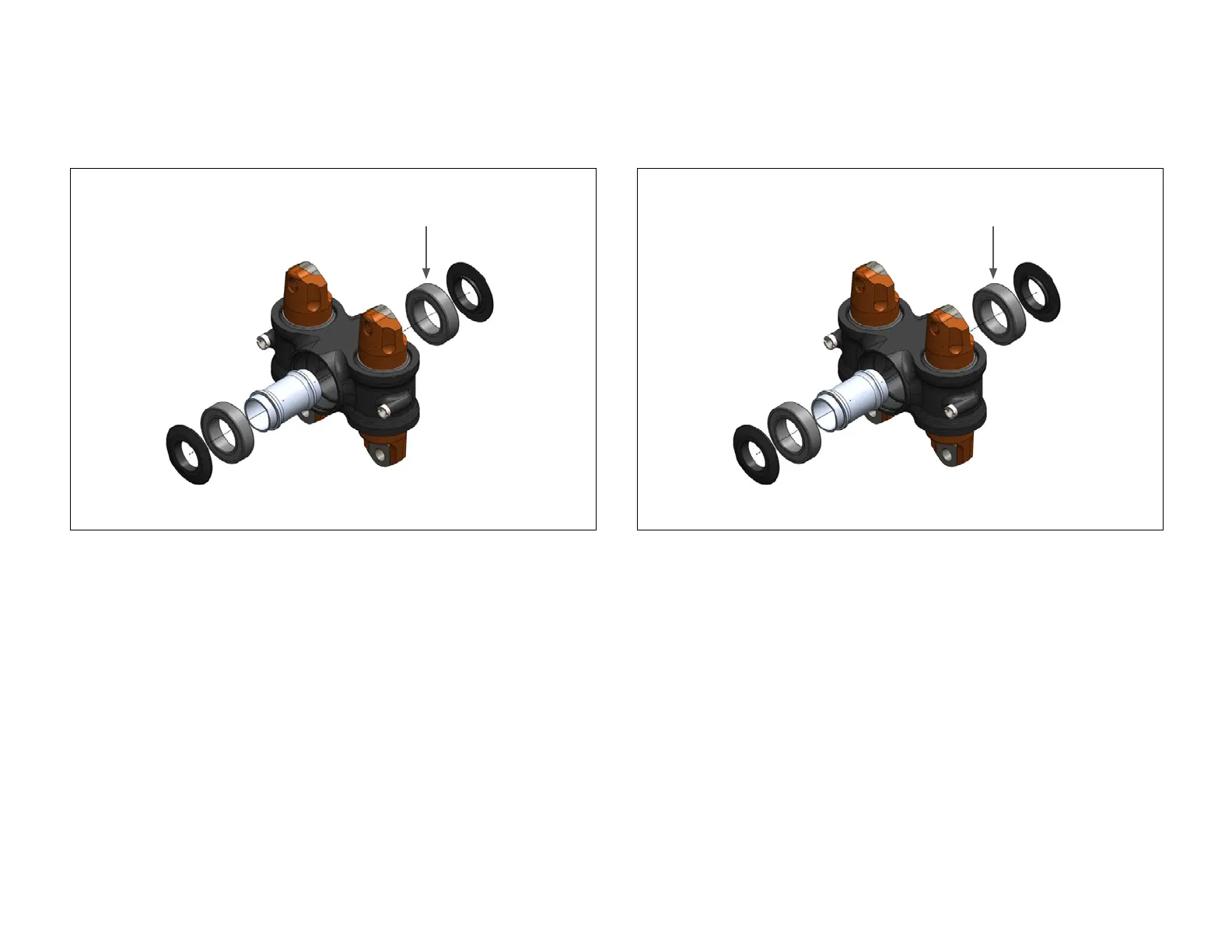

SWITCH INFINITY V2 BEARING ASSEMBLY
Remove dust caps on the outside of the bearings.
Remove non-drive side bearing.
Remove axle sleeve from drive side bearing.
Remove drive side bearing.
Press drive side bearing into Switch Innity body.
Slide axle sleeve into drive side bearing.
Press non-drive side bearing onto sleeve.
Replace bearing caps.
1 1
2 2
3 3
3
4 4
BEARING INSTALLBEARING REMOVAL
DRIVE SIDE BEARING DRIVE SIDE BEARING
3
2
1
4
1
4
2
3
4
1
