SB160 | OWNER’S MANUAL
9
09

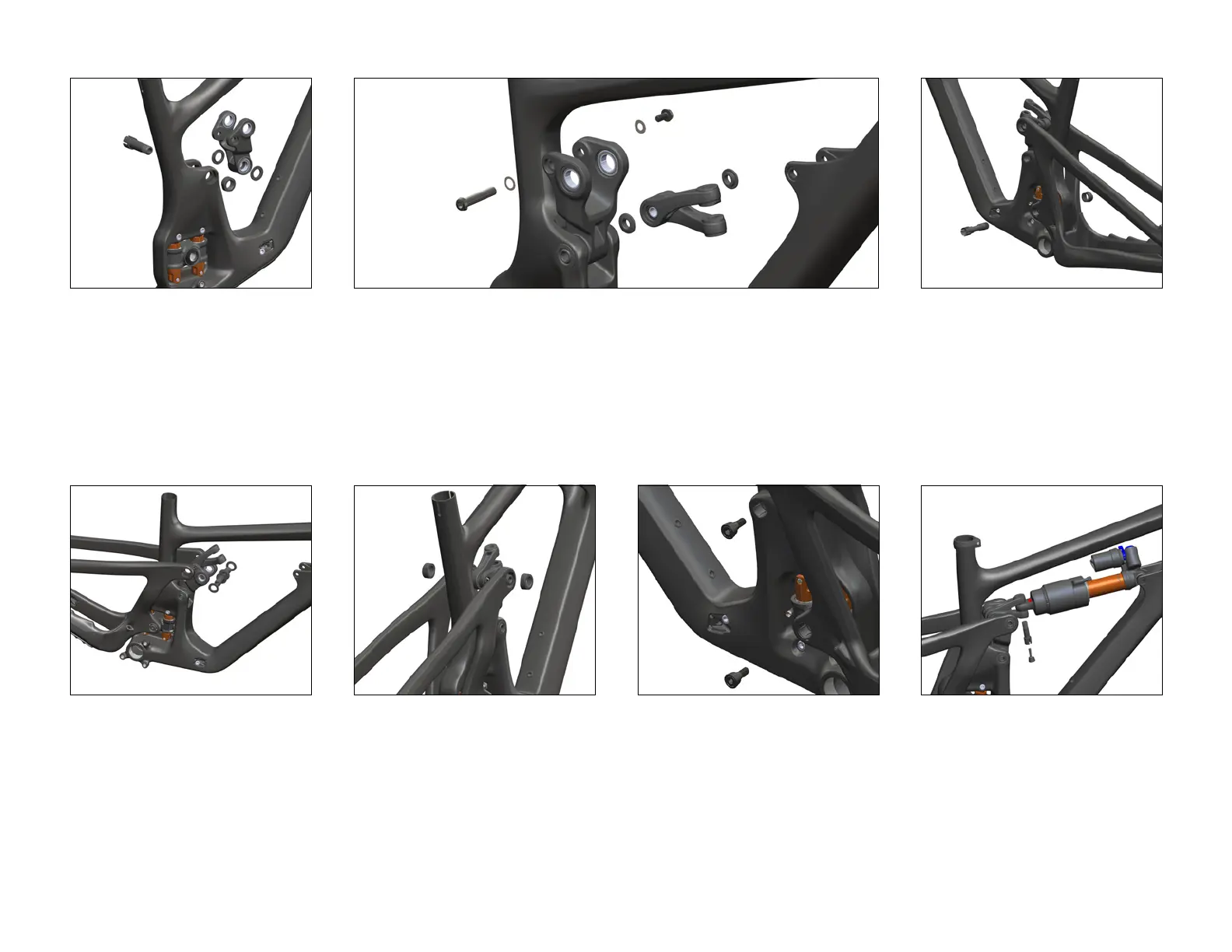

Apply grease to main pivot cavities of Rear
Triangle. Slide Rear Triangle Assembly onto
main pivot and secure with Main Pivot Collet
Axle (3.1) and Routing Collet Nut* (3.7), placing
routing feature at the top.
Torque: 25 Nm
Install a plain collet nut (3.2, at top with no
clamp feature) if kit uses a wireless drivetrain.
07
Place 2x Race Extenders (3.5) onto the lower
bearings in Link Assembly (3.16). Install into
Front Triangle using Link Pivot Collet Axle (3.4)
and plain Collet Nut (3.2).
Torque: 25 Nm
08
Assemble Upper (3.23) and Lower (3.22) Shock Extender to SB160 Link (3.16) by placing 2X Race
Extender (3.15) in the extender cavities and sliding between the Link tabs. Threaded Extender (3.23)
should be assembled on top. Secure with a Guide Pin and assemble Female 8x41mm Bolt (3.17) with
Washer (3.21) through the assembly. Secure with Male M6 Bolt (3.19) and Washer (3.20).
Torque: 10 Nm
10
Place 2x Race Extenders (3.5) onto the upper bearings in Link Assembly (3.16). Rotate Rear Triangle and
Link together, lining up SS Pivot bores.
Install 2x SS Pivot Screws (3.3) from the inside of the Link and partially into the Rear Triangle.
Place 2x plain Collet Nut (3.2) into the Rear Triangle.
Using a wrench from the outside of the Swingarm, begin tightening in the “left-hand” direction (this is
still a standard thread, but installed from the inside), tightening the SS Pivot Screw and Collet Nut.
Torque: 25 Nm
11
Install Large Collet Wedge Bolts (3.9) into 2x
Collet Axles (3.1) and (3.4).
Torque: 14 Nm
12
Install the Shock into the frame by securing front
eyelet with a Guide Pin. Install small Collet Axle
(3.14) through the lower Extender (3.22), through
the Shock, and thread into Upper Extender (3.23).
Torque: 15 Nm
Install Small Collet Wedge Bolt (3.10) into Axle.
Torque: 8 Nm
