<2. Receiving and Storage>
4
IM 01E21A01-03EN-A
2. Receiving and Storage
When the product is delivered, check visually that no
damage has occurred during transportation. Also check that
all owmeters mounting hardware shown below is included.
Integral Flowmeter
Model Part name Qty.
AXG### Centering Device (*1) 1 set
Blanking Plug 1 pcs.
Gasket (sensor side) (*2) 2 sheets
Remote Transmitter
Model Part name Qty.
AXG4A Mounting Bracket 1 set
Blanking Plug 1 pcs.
*1:
When the following process connection codes (wafer type)
have been selected, the centering device is attached. AA1, AA2
*2: When the following code is specied for “Lining”, gaskets
(sensor side) are attached. The gaskets (customer pipe
side) should be prepared by customers. - Lining code: C
2.1
Model and Specications Check
As shown in Figure 2.1 to Figure 2.3, the model, sufx
code, serial number, meter factor, uid specication,
and device information are found on the name plate
located on the outside of the housing. And, this product
can check their information from parameters. Read the
user’s manual of applicable communication type as
listed in Table 1.1 for checking device information from
parameters.
When checking the matching of model and specication
you ordered, see the applicable general specications as
listed in Table 1.1.
Be sure you have the model code and serial number
available when contacting YOKOGAWA.
The model and specication described on the nameplate
are those of the state at the time of shipment.
Note: Description on the nameplate
- Made in _______: Country of origin
- COMB No.: Serial number of the combined remote
sensor or remote transmitter

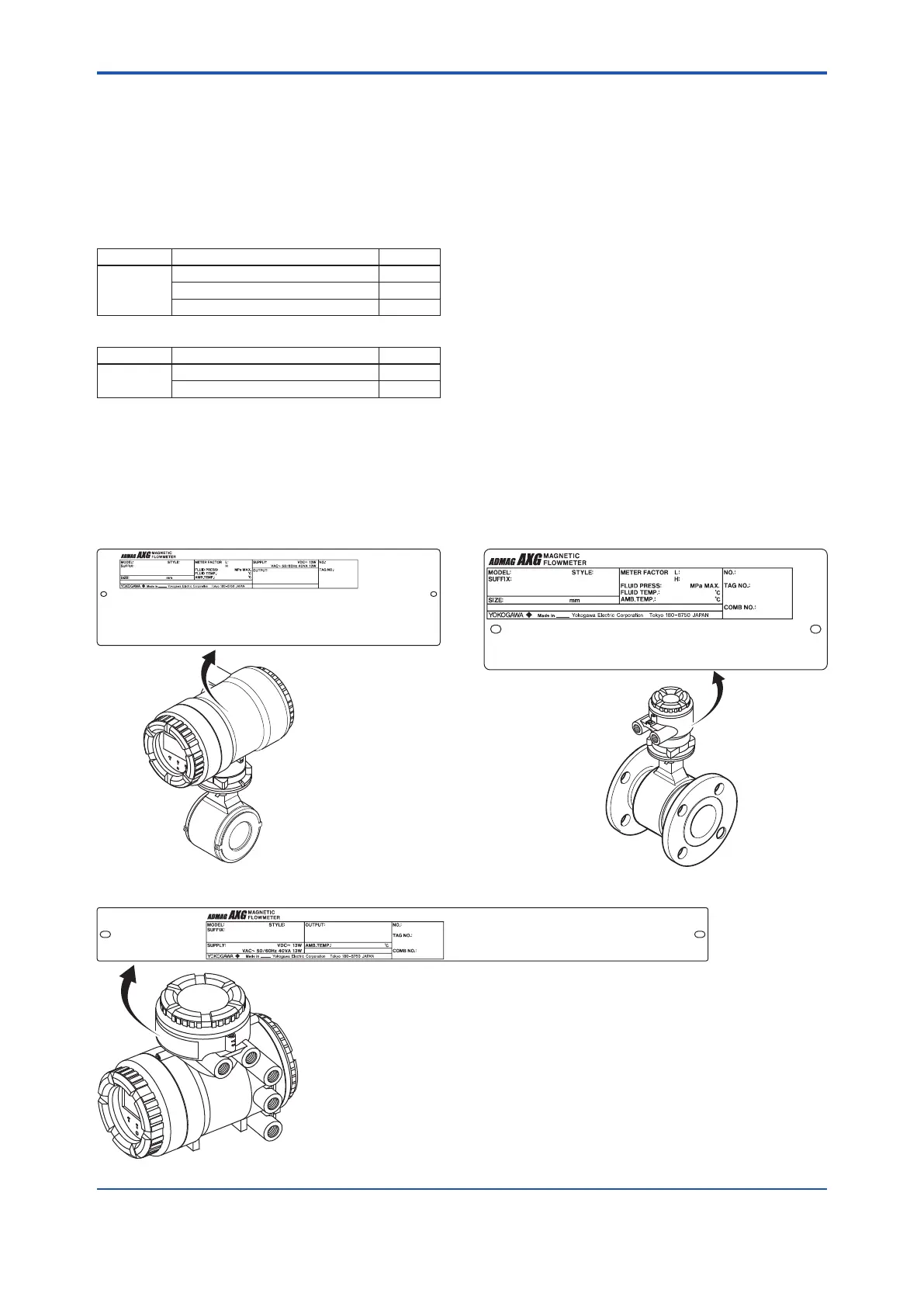

Figure 2.1 Name Plate (AXG Integral Flowmeter)
Figure 2.2 Name Plate (AXG Remote Sensor)
Figure 2.3 Name Plate (AXG4A Remote Transmitter)
2.2 Storage Precautions
(Please read the descriptions on IM 01E22A01-01EN.)
To Next Page
