Connecting the DUT (Light Source)
10.
Clean the top of the optical connector on the other end of the optical fiber with a
fiber cleaner.
11.
Connect the optical connector on the other end of the optical fiber to the optical
connector on the DUT.

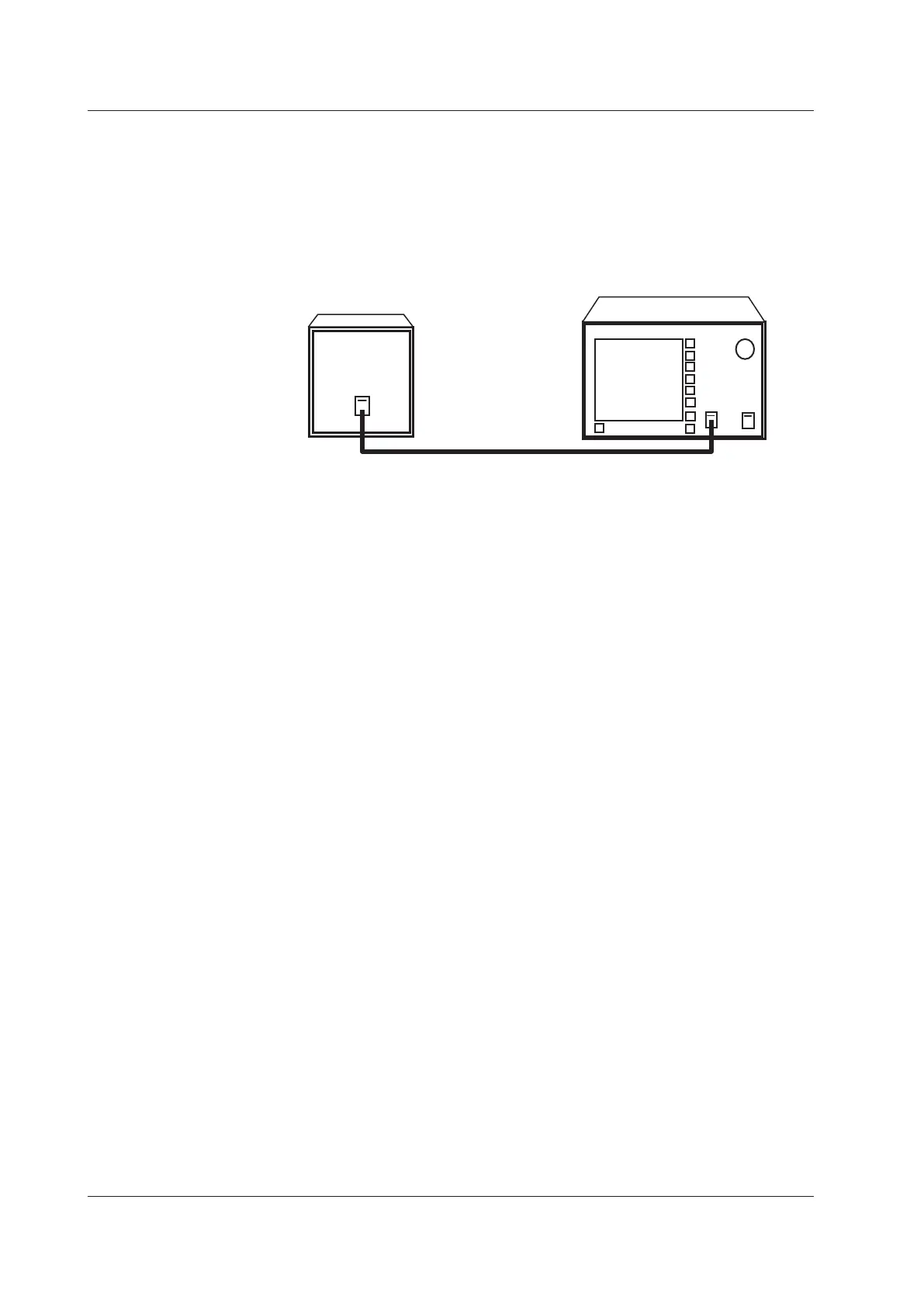

Measuring System
AQ6370D
Light source
Optical fiber
9 Connecting the DUT
