YOKOGAWA Daqstation DX2000

4-12
IM 04L42B01-01E

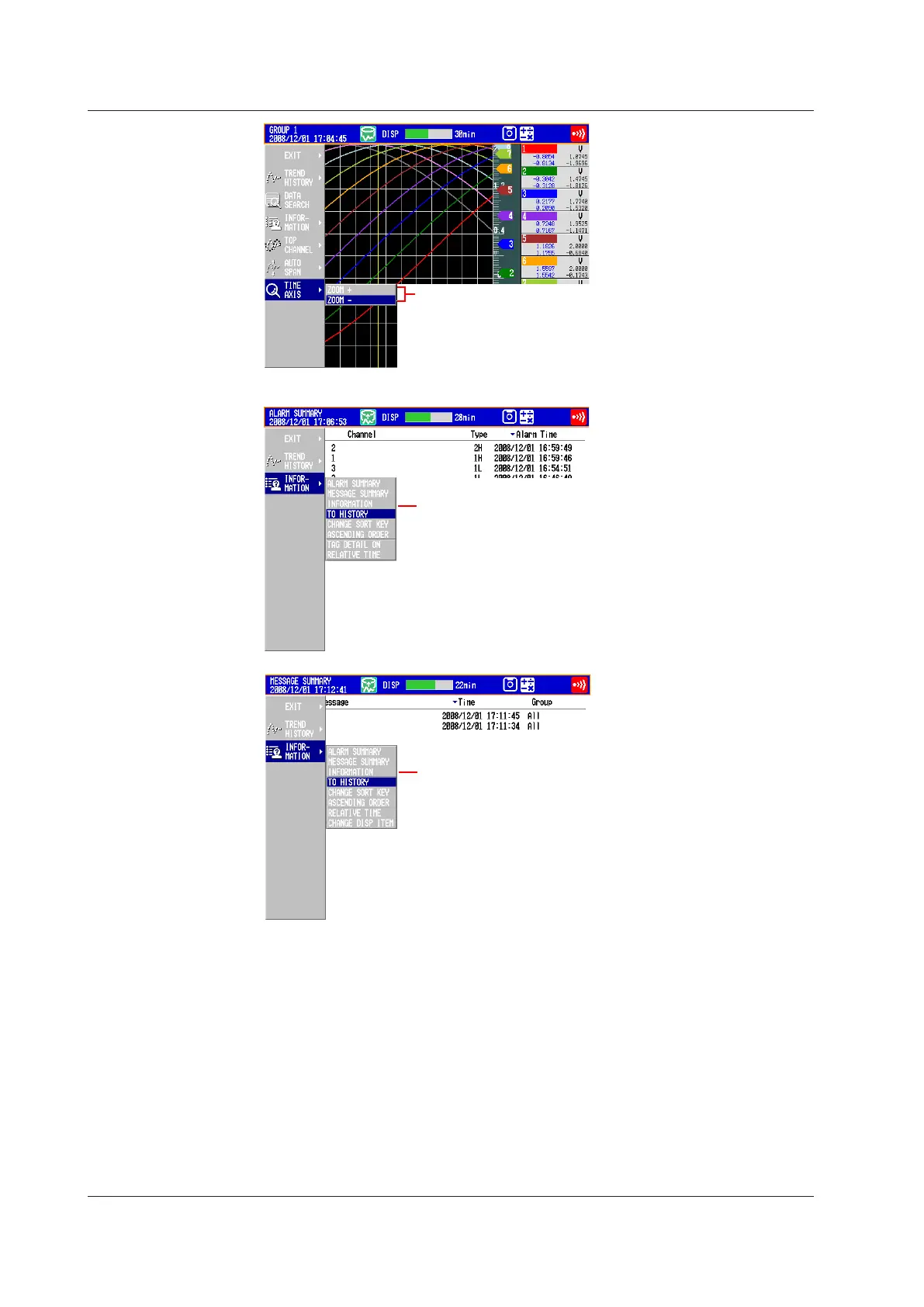

Expands or reduces the time axis
Sub menu when the alarm summary is being displayed
Sub menu when the message summary is being displayed
INFORMATION: Shows information about the measured
data that is currently displayed
For an explanation of the other menu items, see section 4.6.
INFORMATION: Shows information about the measured
data that is currently displayed
For an explanation of the other menu items, see section 4.7.
4.
Press DISP/ENTER to change the displayed contents.
To close the menu without changing the displayed contents, press the
ESC
key.
4.3DisplayingPastMeasuredData(HistoricalTrendDisplay)
