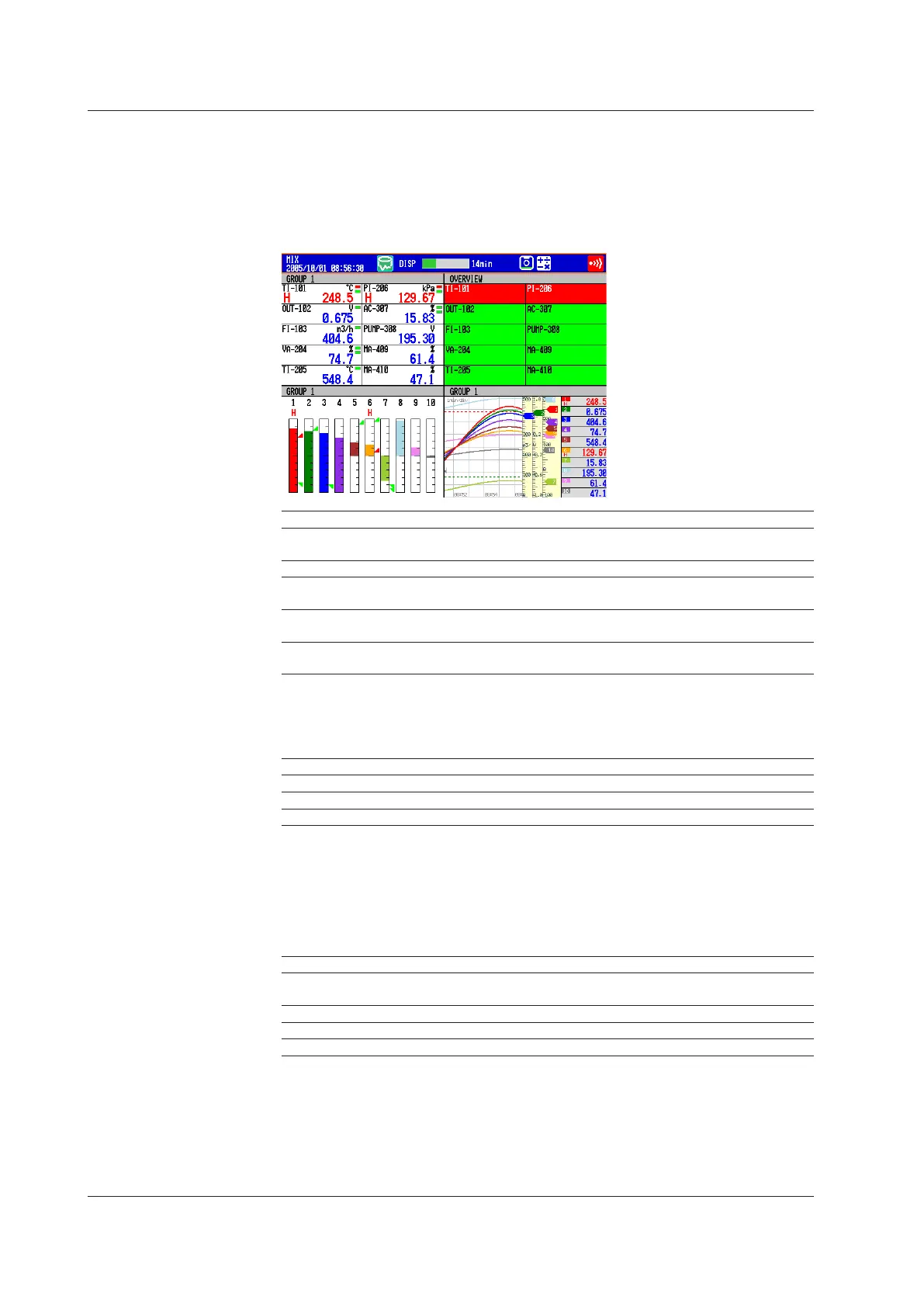

FourPanelDisplay
Displays four different display formats on a single screen. Because the size of each
screen is reduced to 1/4, there are limitations in the format, content, and operation of the
display.
For the operating procedure, see section 4.10.
DisplayableScreen Limitation
Trend No auto switching of groups. No all channel display and
message display. Number of displayed scales is 6 or less.
Digital No auto switching of groups.
Bar graph display No auto switching of groups. No numeric display. Displays
one representative alarm character.
Overview No operation. No numeric display when there are more than
261 channels.
Annunciator There are restrictions on the display characters you can use.
For more information, see section 3.12.
Alarm summary No operation using the cursor.
Message summary
Memory summary
Modbus client status display
Modbus master status display
Relay Status Display -
Report display No operation using the cursor.
Event switch display -
Stacked bar graph display -
• RegisteringScreens
You can assign a display name to the display condition of the four panel display (up
to four configurations) and register it. A registered configuration can be recalled by its
display name and displayed.
The default values are as follows:
DisplayName DisplaysShown
MIX Trend (group 1), digital (group 1), bar graph (group 1), and
overview
ALL TREND All trend displays (groups 1 through 4)
ALL DIGITAL All digital displays (groups 1 through 4)
ALL BAR All bar graph displays (groups 1 through 4)
1.3Display
