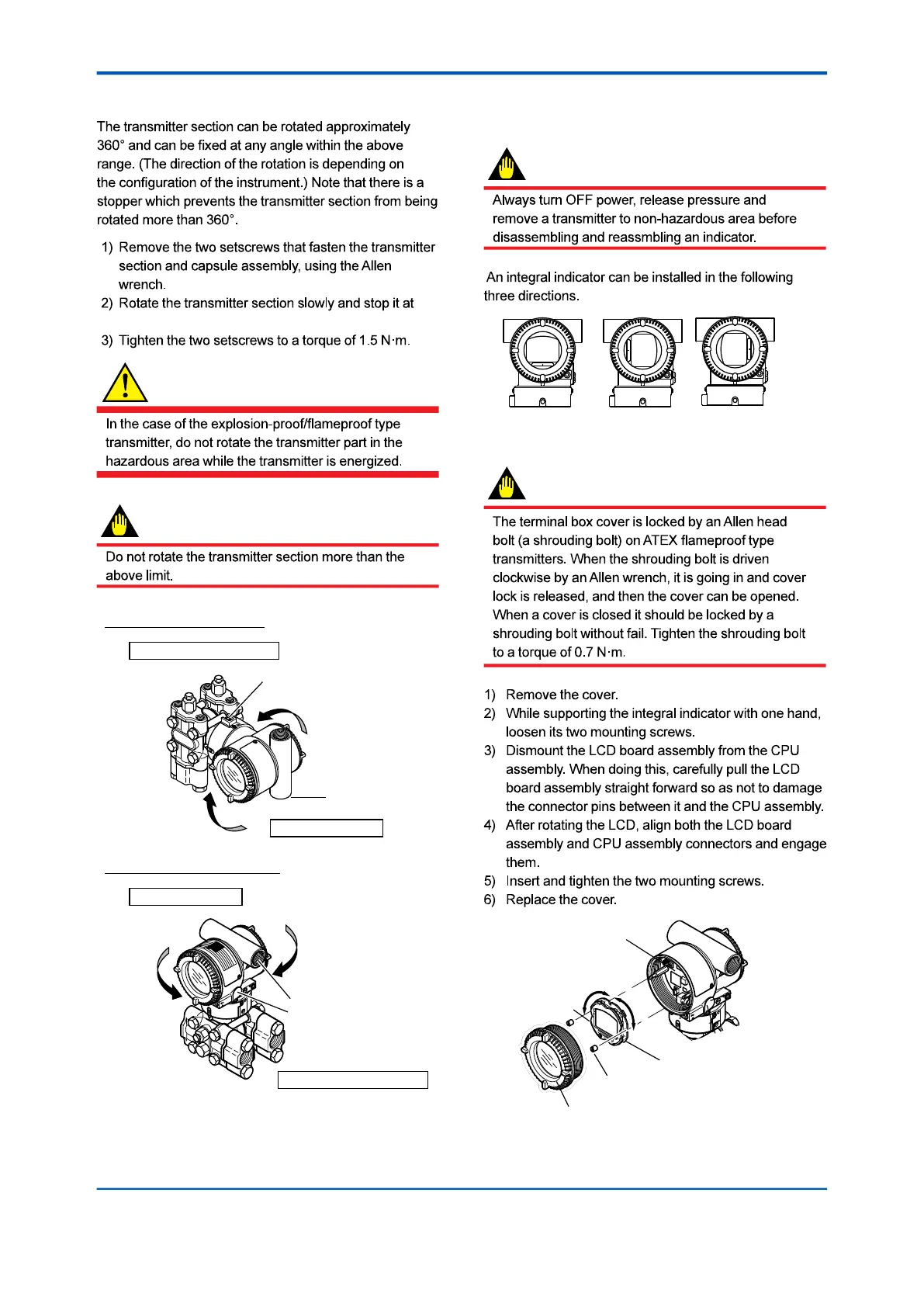

3.6 Rotating Transmitter Section
designated position.
WARNING
IMPORTANT
F0312.ai
Vertical impulse piping type
Horizontal impulse piping type
Pressure-detector section
Transmitter section
Transmitter section
Pressure-detector section
Conduit connection
Conduit connection
Zero-adjustment screw
Stopper
Figure 3.12 Rotating Transmitter Section
(Left Side High Pressure Type)
3.7 Changing the Direction of
Integral Indicator
IMPORTANT
F0313.ai
Figure 3.13 Integral Indicator Direction
IMPORTANT
90°
90°
Integral
indicator
Mounting screw
Amplifier cover
LCD board assembly
CPU assembly
F0314
.ai
Figure 3.14 Rotating Integral Indicator
