YOKOGAWA DPharp EJX Series User Manual

<2. Handling Cautions>
2-7
IM 01C25B01-01E

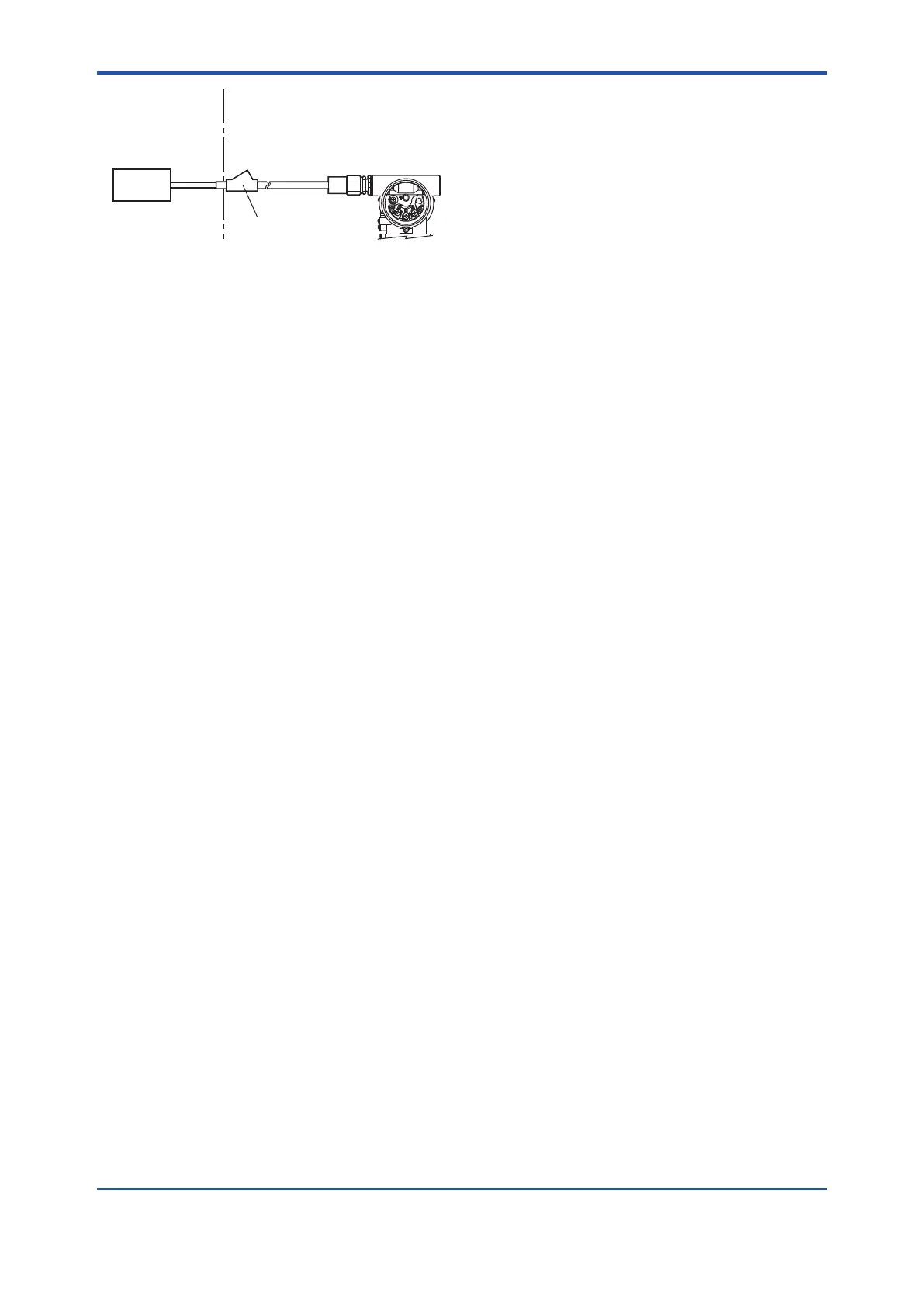

Non-Hazardous
Locations
Hazardous Locations Division 2
Non-hazardous
Location
Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Sealing Fitting
SUPPLY
PULSE
CHECK
ALARM
EJX Series
F0205-2.ai
• All wiring shall comply with local installation
requirements and local electrical code.
• In hazardous locations, the cable entry
devicesshallbeofacertiedameproof
type, suitable for the conditions of use and
correctly installed.
• Unused apertures shall be closed with
suitableameproofcertiedblanking
elements.(Theplugattachedisameproof
certied.)
Note 3. Operation
• WARNING:
AFTER DE-ENERGIZING, DELAY 5
MINUTES BEFORE OPENING.
APRÉS POWER-OFF, ATTENDRE 5
MINUTES AVANT D'OUVRIR.
• WARNING:
 WHENAMBIENTTEMPERATURE≥65°C,
USETHEHEAT-RESISTINGCABLES≥
90°C.
QUAND LA TEMPÉRATURE AMBIANTE
≥65°C,UTILISEZDESCÂBLES
RÉSISTANTESÁLACHALEUR≥90°C.
• Take care not to generate mechanical
sparking when accessing to the instrument
and peripheral devices in a hazardous
location.
Note 4. Maintenance and Repair
• Theinstrumentmodicationorparts
replacement by other than authorized
representative of Yokogawa Electric
Corporation and Yokogawa Corporation of
America is prohibited and will void Canadian
StandardsExplosionproofCertication.
c CSA Intrinsically Safe Type/CSA
Explosionproof Type
Model EJX Series pressure transmitters with
optional code /CU1 or /V1U can be selected the
type of protection (CSA Intrinsically Safe or CSA
Explosionproof) for use in hazardous locations.
Note 1. For the installation of this transmitter,
once a particular type of protection is
selected, any other type of protection
cannot be used. The installation must be in
accordance with the description about the
type of protection in this instruction manual.
Note 2. In order to avoid confusion, unnecessary
marking is crossed out on the label other
than the selected type of protection when
the transmitter is installed.
2.9.3 CENELEC ATEX (KEMA)
Certication
(1) Technical Data
a. CENELEC ATEX (KEMA) Intrinsically Safe
Type
Caution for CENELEC ATEX (KEMA)
Intrinsically safe type.
Note 1. Model EJX Series pressure transmitters
with optional code /KS2 for potentially
explosive atmospheres:
• No. KEMA 03ATEX1544 X
• Applicable Standard:
EN 50014:1997, EN 50020:2002,
EN 50284:1999, EN 50281-1-1:1998
• Type of Protection and Marking code:
EEx ia IIC T4
• Group: II
• Category: 1GD
• Ambient Temperature for gas-proof:
–50* to 60°C
*–15°Cwhen/HEisspecied.
• Process Temperature (Tp.): 120°C max.
• Maximum Surface Temperature for dust-
proof:
T85°C (Tamb.: –40* to 60°C, Tp.: 80°C)
T100°C (Tamb.: –40* to 60°C, Tp.: 100°C)
T120°C (Tamb.: –40* to 60°C, Tp.: 120°C)
*–15°Cwhen/HEisspecied.
• Enclosure: IP66 and IP67
Note 2. Electrical Data
• In type of explosion protection intrinsic
safety EEx ia IIC only for connection to a
certiedintrinsicallysafecircuitwithfollowing
maximum values:
Ui = 30 V
Ii = 200 mA
Pi = 0.9 W
Effective internal capacitance; Ci = 10 nF
Effective internal inductance; Li = 0 mH
