YOKOGAWA EXAxt 450 - Parts List

CMPL12D06D05-02E
Customer
Maintenance
Parts List
©Copyright 2007, 4thEdition:Oct.,2011(YK)
Subjecttochangewithoutnotice.
Model ISC450G [Style: S2]
Inductive Conductivity
Converter

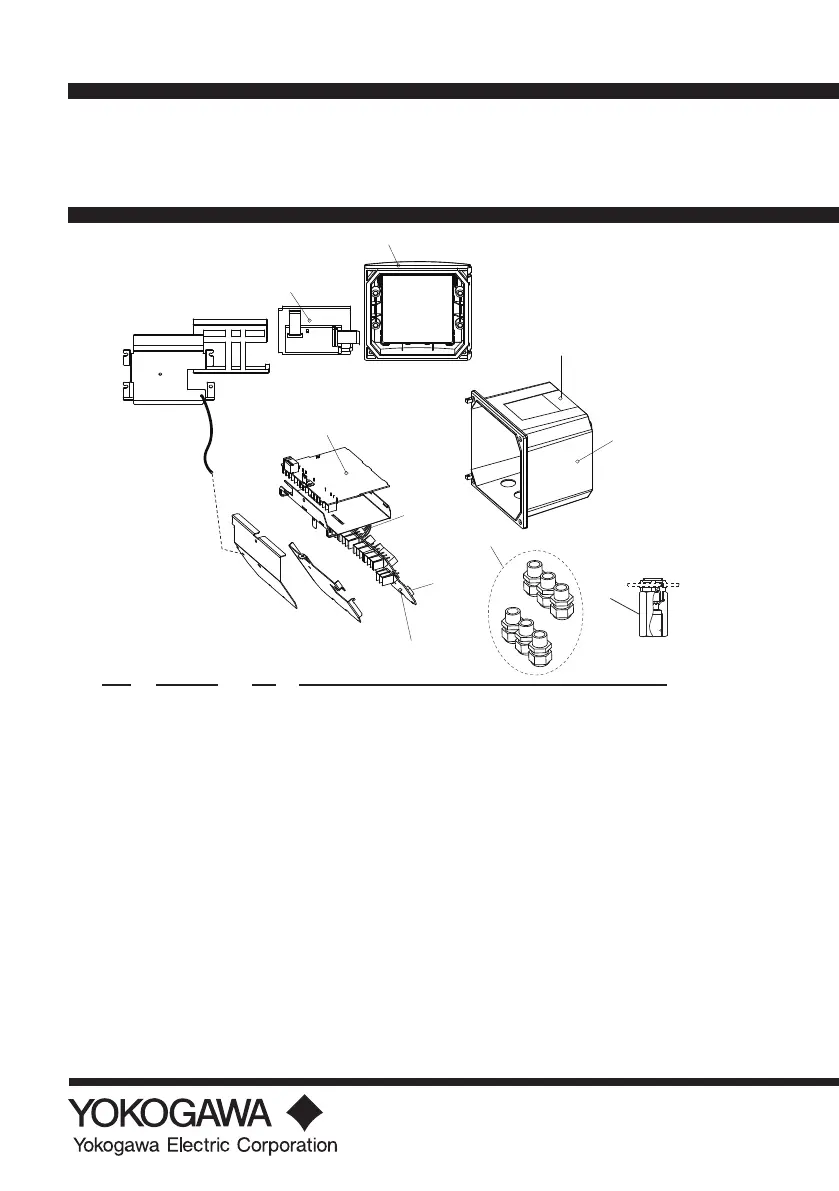

Item Part No. Qty
Description
*1a K9676GA 1 Power board assembly AC version
*1b K9676HA 1 Power board assembly DC version
*2 K9678EA 1 MainboardassemblyISCversion
*3 K9676MA 1 LCDmodule
*5a K9676MX 1 Cable assembly (3 core)
*5b K9676MW 1 Cable assembly (10 core)
*5c K9676MY 1 Cable assembly (shield)
*6a A1108EF 1 FuseACversion(1pcs.)
*6b A1111EF 1 FuseDCversion(1pcs.)
*7 K9676BE 1 Cover assembly without , screws and hingepins
8 K9676BU 1 Cable glands assembly (6 pcs. M20)
9 K9676DL 1 Stainlesstagplateblank
10 K9676BT 1 Screwassemblytofixcover(M4screws,washer,O-ring,hingepins)
*11 K9676CM 1 Housing assembly polyurethan baked finish
12 — Adapter assembly for conduit work
K9171SU 1 ForG1/2screwwhen/AFTGspecified
K9316AF 1 For1/2NPTscrewwhen/ANSIspecified
K9676BC 1 ForM20screwwhen/AM20specified
 *)Donotexchangetheseparts.Callservicepersonnel.
1a, 1b
6a, 6b
2
3
11
12
5c
7,
8
9
10
5a, 5b
