<4. Applications>
4-14
TI 11M12A01-01EAll Right Reserved Copyright © 2004, Yokogawa Electric Corporation
Mar. 14, 2017-00
4.5 Garbage Incinerator
This is a facility to handle by incineration the combustible waste generally contained in municipal
garbage.
The exhaust gas of the incinerator outlet contains large quantities of dust and corrosive gases,
and a large water vapor component.
Yokogawa should be consulted concerning the installation of the unit.
Sample point System type Detector Objective
Incinerator outlet
(gas cooler outlet)
H2, H3
Note: depending on the conditions at the
sample point, a sampling type
system may be required.
D5 Combustion monitoring
Scrubber outlet
(or stack)
L2, L3 D1, (D3) Combustion monitoring
Sewage Sludge
Measured Feed
Extraction Blower
Air Preheater
Cyclone
Scrubber
Deconsolidator
Dust
Auxiliary Blower
Pressurizing Blower
Hot Blast Furnace
Denitration
Tower
Electric
Precipitator
Control Oil Gun
Water
Water
Heavy Oil

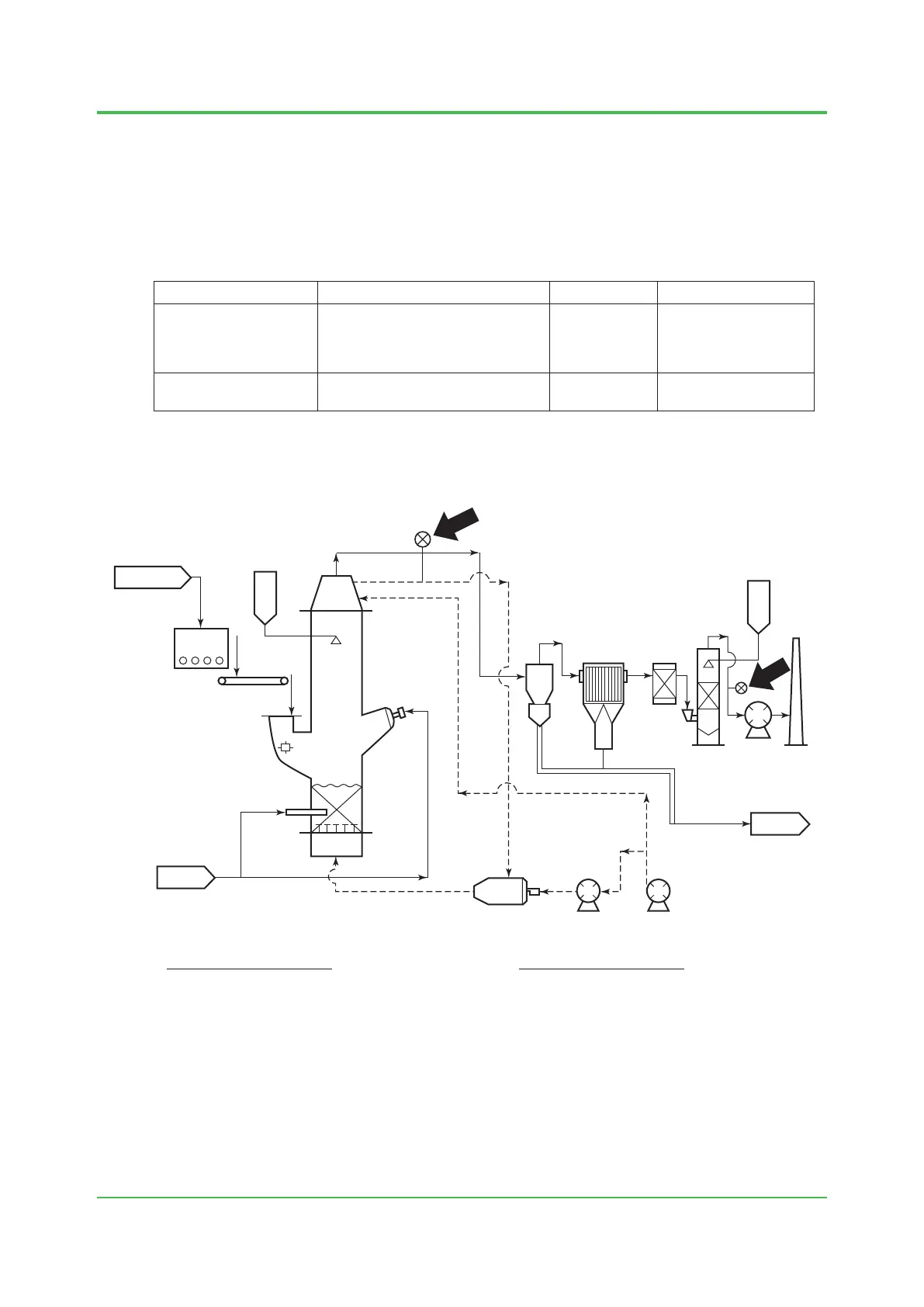

Fluidized Bed Incinerator Plant
Fluidized Bed Furnace
Startup Burner
F0414.ai
Garbage incinerator
Incinerator outlet
Exhaust gas temperature: 700 to 750°C
Dust: 20 to 30 g/Nm
3
Exhaust gas components: SOx;Several hundred ppm
HCl;100ppm
Scrubber outlet
Exhaust gas temperature: 80 to 120°C
Dust: 0.1 g/Nm
3
maximum
To Next Page
