  <3.SystemCongurations>
3-6
TI 11M12A01-01EAll Right Reserved Copyright © 2004, Yokogawa Electric Corporation
Mar. 14, 2017-00

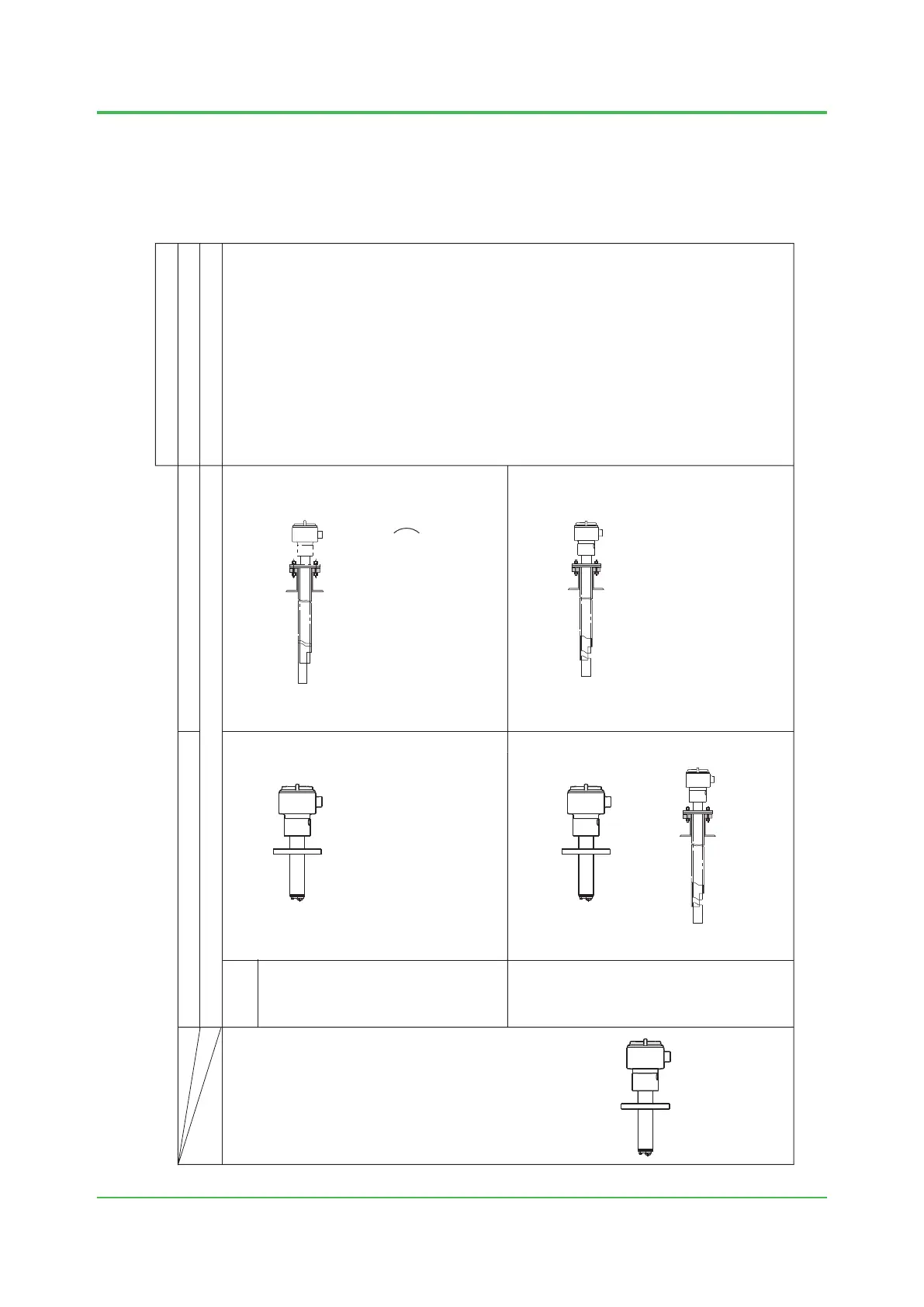

3.3 Examples of System Component Selection
Based on Sample Gas Conditions
(1) Detector and accessories
F0307.ai
2 to 3 m
[D1] [D2]
[D4] [D3]
0.4 to 2 m
ZR22G
Low (0.5 g/Nm
3
or less)
Dust level
Pressure
Temperature (ºC)
High (10 g/Nm
3
or less)
Remarks
–5 to +250 kPa (Note 1)
Insertion length
When the detector is mounted horizontally, the ZO21R probe protector is used for enhance forth.
(Note) When the probe length is 2 m or more and sample gas contains high level dust, consult us.
General-purpose detector (Vertical downward mounting)
General-purpose detector ZR22G
General-purpose detector
General-purpose detector ZR22G with probe protector ZO21R-L
(Note 2)
Dust guard protector or Dust filter
(Note 1) When the pressure in the furnace exceeds 3 kPa, it is recommended that you compensate the pressure. When the pressure in the furnace exceeds 5 kPa, you must perform pressure compensation. For 0.15 m probe, 0.5 to 5 kPa. No pressure fluctuation in the furnace should be allowed. (Note 2) When dust guard protector (K9471UA) or dust filter (K9471UC) is mounted to the ZR22G of 2 m probe length, consult us.
0 to 700
