YOKOGAWA FX1008 First Step Guide

Model
code
Suffix code
Optional
code
Description
FX1002
2ch, Shortest measurement interval:125ms
FX1004
4ch, Shortest measurement interval:125ms
FX1006
6ch, Shortest measurement interval:1s
FX1008
8ch, Shortest measurement interval:1s
FX1010
10ch, Shortest measurement interval:1s
FX1012
External
storage
medium
slot
12ch, Shortest measurement interval:1s
-0
(Note)
Without CF card slot and medium
-4
With CF card slot and medium
Language
-2
English/German/French, deg F and DST
Withstanding
voltage between
measuring input
terminals
-H
1000 VAC(50/60 Hz), 1 min
-L
400 VAC(50/60 Hz), 1 min
Options
/A1
*1
Alarm output 2 points (C-contact)
/A2
*1
Alarm output 4 points (C-contact)
/A3
*1*3
Alarm output 6 points (C-contact)
/A4A
*1*3
Alarm output 12 points (A-contact)
/C2
*2
RS-232 interface
/C3
*2
RS-422A/485 interface
/C7
Ethernet interface
/F1
*3
FAIL/Status output
/M1
Mathematical functions (including Report
functions)
/N2
*4
3 leg isolated RTD
/N3F
Extended input type (without Pt1000)
/P1
24 VDC/AC power supply
/R1
*5
Remote control 8 points
/TPS2
24VDC transmitter power supply (2
*6
loops)
/TPS4
24VDC transmitter power suply (4
*7
loops)
/USB1
USB interface (1 port)
/PM1
Pulse input 3 points, Remote control
5 points (including Mathematical func-
*8
tions)
/CC1
Calibration correction function
/LG1
Log scale
/PWR1
Power monitor (including Mathmatical
*9
functions)

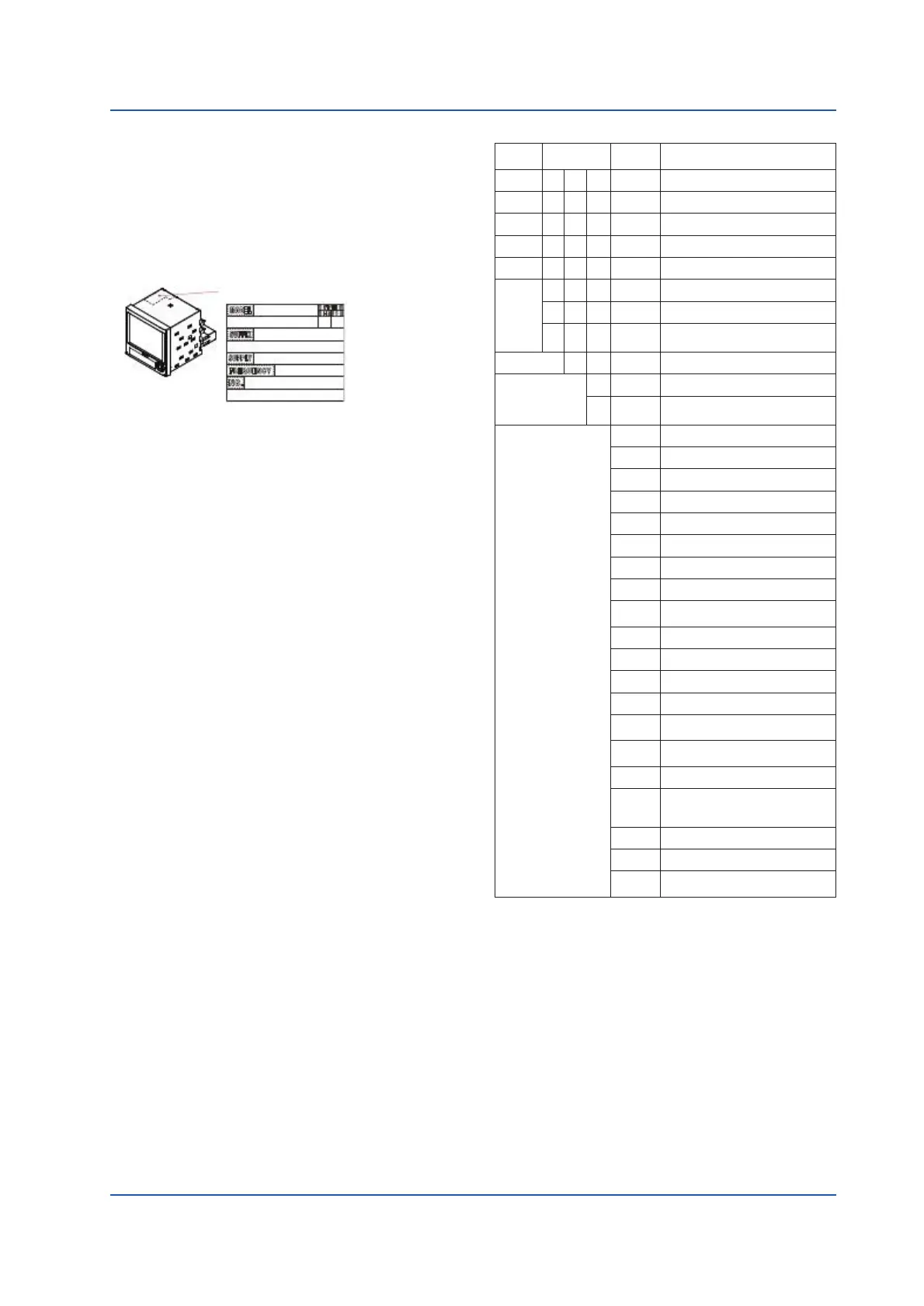

Checking the Contents of the Package
MODEL and SUFFIX Cod
Unpack the box and check the contents before operating the
instrument. If some of the contents are not correct or missing or
if there is physical damage, contact the dealer from which you
purchased them.
FX
A name plate is located on the top panel of the FX. Check that the
model name and suffix code given on the name plate match those
on your order.
name plate
NO. (Instrument Number)
When contacting the dealer from which you purchased the
instrument, please give them the instrument number.
Note: To load data, the FX must be equipped with a communication
interface (/C2, /C3 or /C7 option) or the USB interface (/USB1
option.)
*1 /A1, /A2, /A3 and /A4A cannot be specified together.
*2 /C2 and /C3 cannot be specified together.
*3 In case that /A3 or /A4A is specified, /F1 cannot be specified
together.
*4 /N2 cannot be specified for FX1002 and FX1004.
*5 In case that /R1 is specified, /A4A, /TPS2, /TPS4, /PM1 and
/PWR1 cannot be specified together.
*6 In case that /TPS2 is specified, /TPS4, /A2, /A3, /A4A, /F1, /R1
and /PM1 cannot be specified together.
*7 In case that /TPS4 is specified, /TPS2, /A1, /A2, /A3, /A4A, /F1,
/R1 and /PM1 cannot be specified together.
*8 In case that /PM1 is specified, /A4A, /M1, /R1, /TPS2, /TPS4 and
/PWR1 cannot be specified together.
*9 In case that /PWR1 is spcified, /A3, /A4A, /F1, /R1, /PM1 and
/M1 cannot be specified together.
