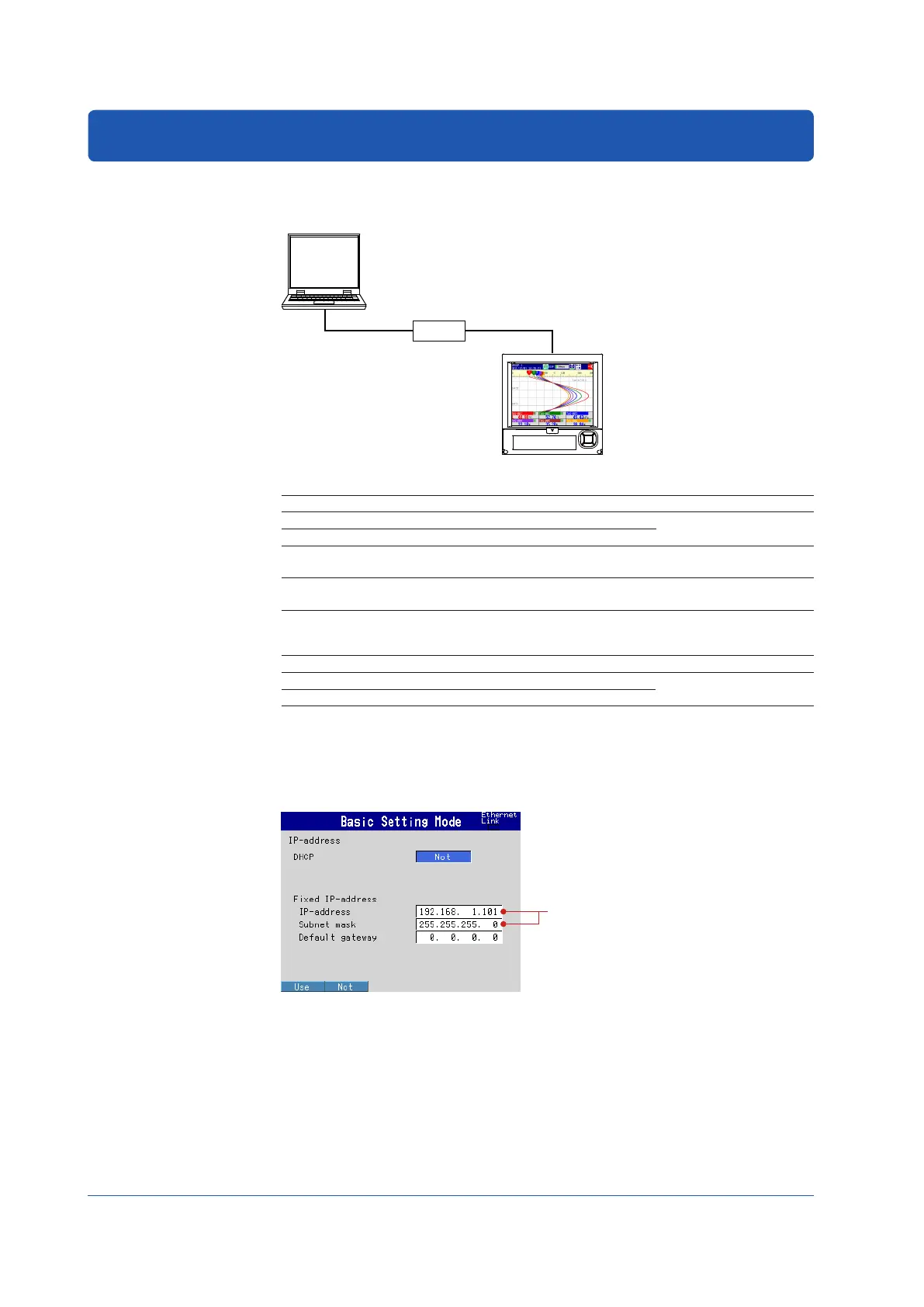

Monitoring the FX on a PC Browser (Ethernet) (/C7 Option)
In this example, we will connect the PC and the FX via hub in a one-to-one relationship
and display and monitor the FX screen on a browser on the PC.
FX
PC
Ethernet
HUB
FX
Setup Item Description Number in the Figure
IP address 192.168.1.101 1
Subnet mask 255.255.255.0
Web server function Monitor from a Web browser on the PC
using operator page.
2
Access to the FX Display the Web page and do not set
access privileges.
3
PC
Setup Item Description Number in the Figure
IP address 192.168.1.100 4
Subnet mask 255.255.255.0
(1) IP Address of the FX
Press MENU (switch to the setting mode), hold down FUNC for 3 s (switch to the
basic setting mode).
Select the Menu tab > Communication (Ethernet) > IP-address.
