YOKOGAWA FX1012 User Manual

19
IM 04L21B01-02EN

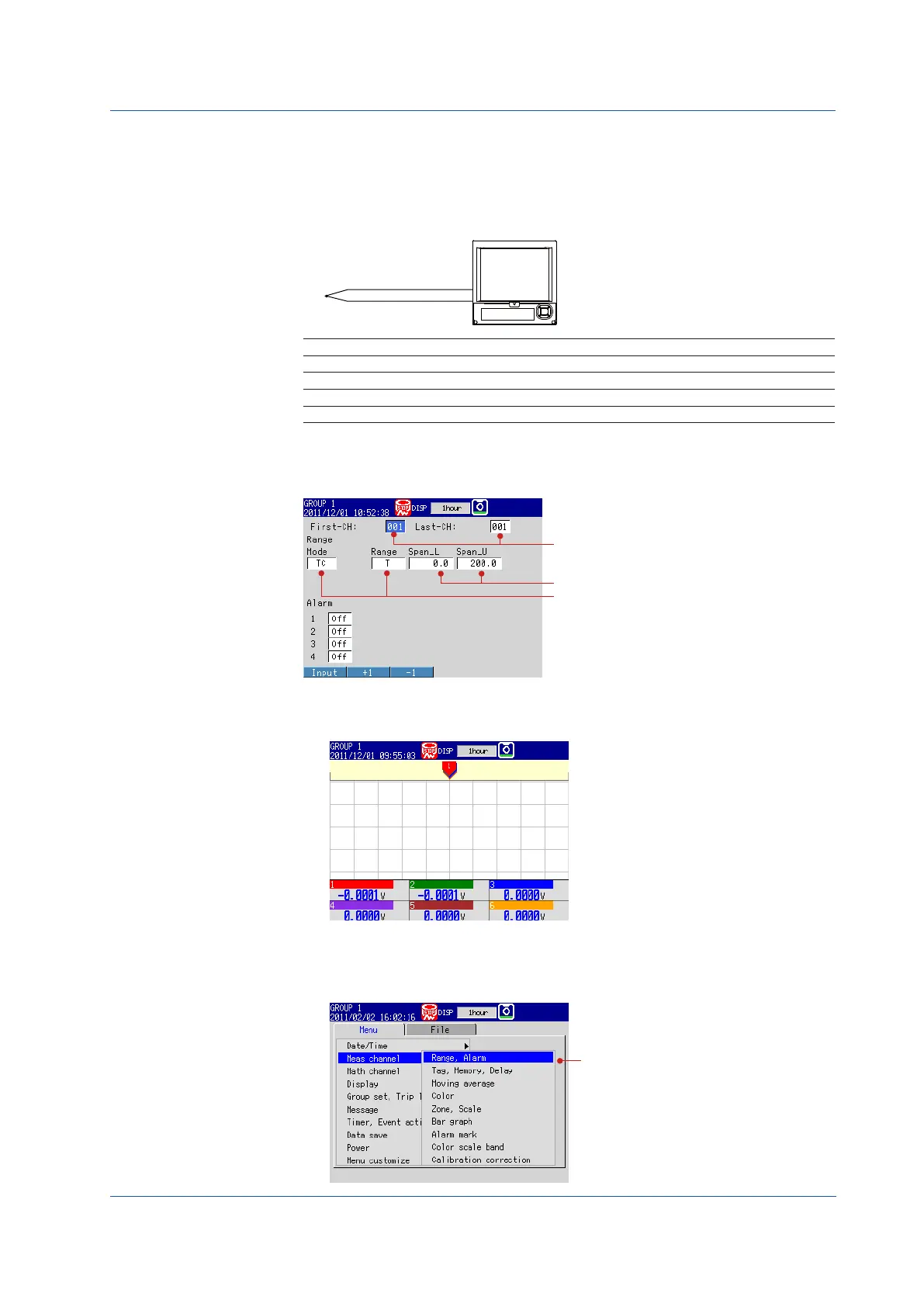

Setting the Input Range
Configure the FX so that it measures temperature on measurement channel 1 and flow
rate on measurement channel 2.
Setting the Temperature Measurement Channel, the Input Range, and the Tag
Type T
thermocouple
Channel 1
0.0 to 200.0°C
FX
Setup Item Description Number in the Figure
Channel Use channel 1. 1
Tag TI-001 2
Sensor Type T thermocouple 3
Input range 0.0 to 200.0°C 4
(1) Input Range
Press MENU (switch to the setting mode).
Select the Menu tab > Meas channel > Range, Alarm.
1
4
3
Setting Procedure
1.
Display the operation mode screen.
2.
Press MENU once to display the setting menu.
3.
Press the down arrow key twice to select Meas channel.
4.
Press the right arrow key once.
Select the Range, Alarm.
Setting the Functions and Operations
