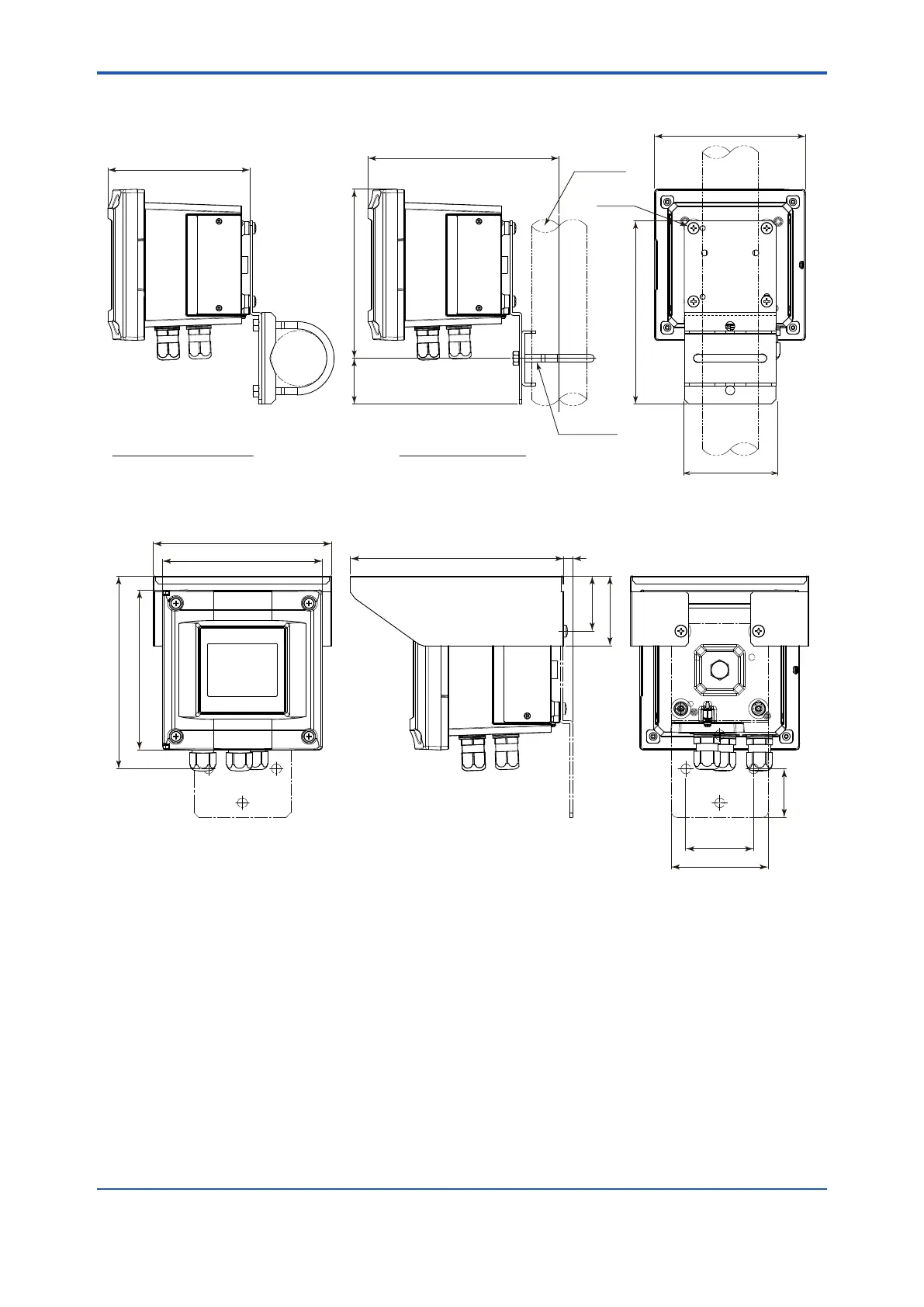

Pipe mounting hardware (Option code: /U, /UM)
155
100
200
50 184.5
165
(209)
Pipe mounting (Horizontal)
Pipe mounting (Vertical)
Pipe 50A
(ø60.5)
M8 U-bolt
4-M6 *
FB4-202_04.ai
Unit: mm
*: Tighten the four screws to a torque of 2 N•m.
Stainless steel hood (Option code: /H6, /H7, /H8)
184
220
(70)
(100)
9
165
165
72
57
(50)
199
FB4-202_05.ai
Unit: mm
