I/O Messages
Type Number Operationtype Instance ID Size Datatype
Alarm information of I/O
channel
(GX/GP expandable I/O 4)
(GM sub unit 4)
4001 to 4050,
4101 to 4150
Producer 820 200 (2 x 100) INT16
4201 to 4250,
4301 to 4350
Producer 821 200 (2 x 100) INT16
4401 to 4450,
4501 to 4550
Producer 822 200 (2 x 100) INT16
(GX/GP expandable I/O 5)
(GM sub unit 5)
5001 to 5050,
5101 to 5150
Producer 825 200 (2 x 100) INT16
5201 to 5250,
5301 to 5350
Producer 826 200 (2 x 100) INT16
5401 to 5450,
5501 to 5550
Producer 827 200 (2 x 100) INT16
(GX/GP expandable I/O 6)
(GM sub unit 6)
6001 to 6050,
6101 to 6150
Producer 830 200 (2 x 100) INT16
6201 to 6250,
6301 to 6350
Producer 831 200 (2 x 100) INT16
6401 to 6450,
6501 to 6550
Producer 832 200 (2 x 100) INT16
Alarm information of I/O
channel
(Continuous channel data
area)*
0001 to 0010,
0101 to 0110,
0201 to 0210,
0301 to 0310,
0401 to 0410,
0501 to 0510,
0601 to 0610,
0701 to 0710,
0801 to 0810,
0901 to 0910
Producer 835 200 (2 x 100) INT16
Alarm information of
computation channel
A001 to A100 Producer 836 200 (2 x 100) INT16
A101 to A200 837 200 (2 x 100) INT16
Alarm information of
communication channel
C001 to C100 Producer 838 200 (2 x 100) INT16
C101 to C200 839 200 (2 x 100) INT16
C201 to C300 840 200 (2 x 100) INT16
C301 to C400 841 200 (2 x 100) INT16
C401 to C500 842 200 (2 x 100) INT16
* The “continuous channel data area” is a special area that enables continuous reading by limiting
the number of channels of each module to 10.
For only the I/O channels on a GX/GP main unit or I/O channels on a GM main unit, this area
can be used to read data consecutively.
• There is no decimal place information.
Error code Meaning
0 No error
1 Skip
2 +Over
3 –Over
4 +Burnout
5 –Burnout
6 A/D error
7 Invalid data
16 Computation error
17 Communication error

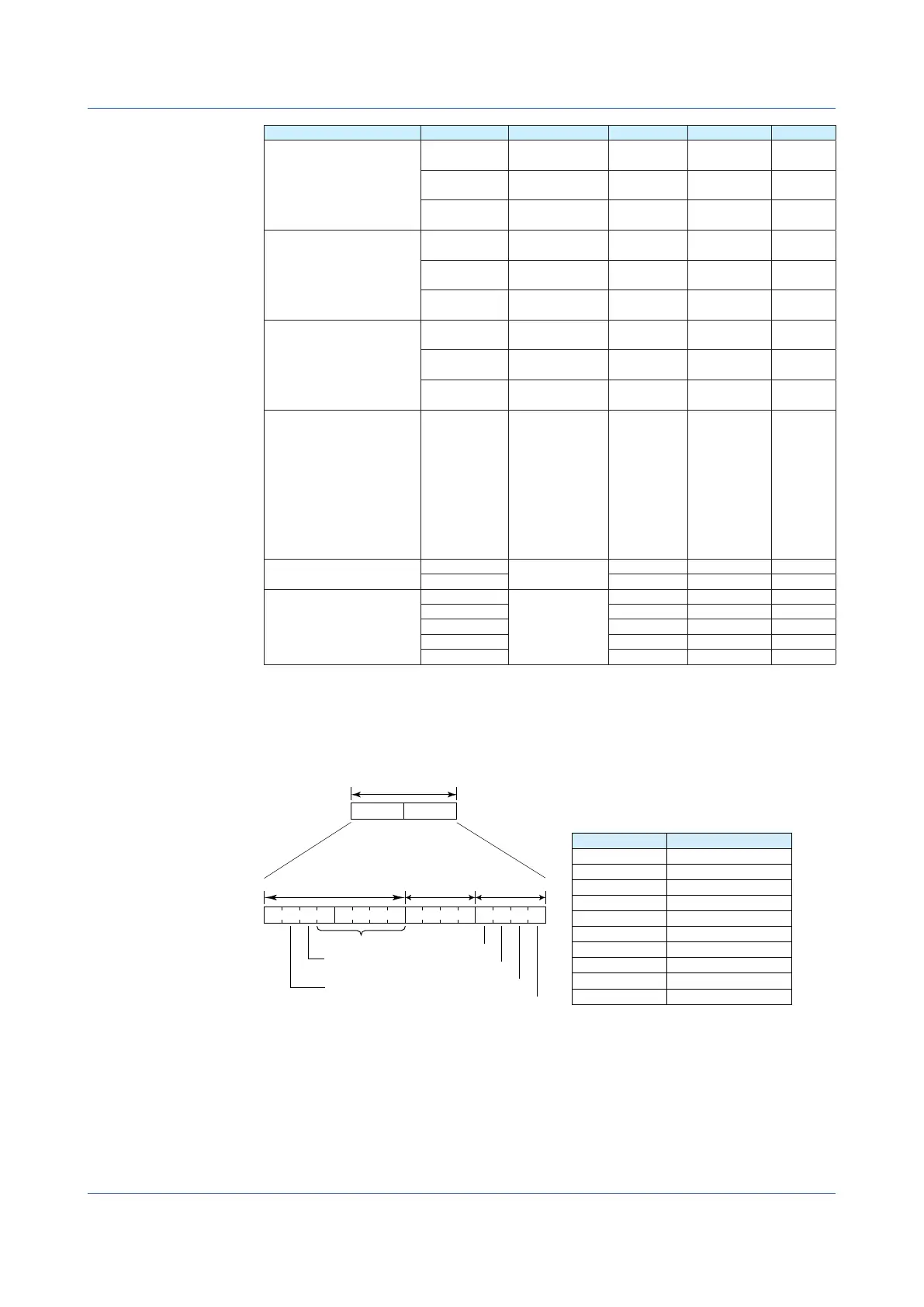

5 bits 4 bits
Status information
Alarm list
0
Reserved
area
Error code
RJC error
A/D calibration
value error
0 0 0 0
Level 1
Level 2
Level 3
Level 4
2 bytes
Higher
Lower
