2/4
This document is subject to change without notice.
TI 04L01L01-01EN 2011.12.16-00

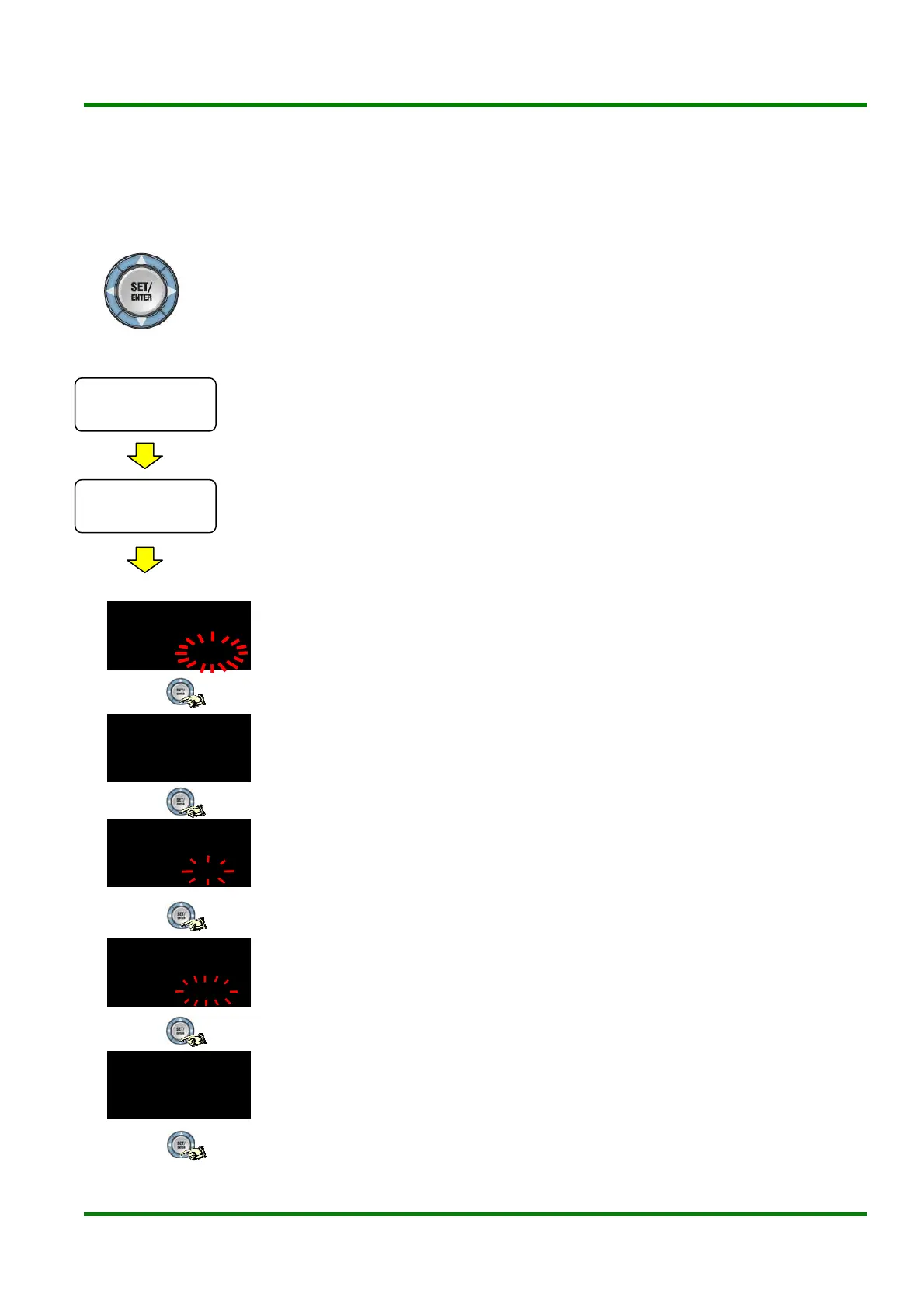

■ Settings
To set the sample PID control, input type (4 to 20 mA), and current control output (4 to 20 mA), set the
parameters below.
(1) Select the desired parameter with the UP or DOWN key
(2) Press SET/ENTER (the setting value blinks)
(3) Change the setting with the UP or DOWN key
(4) Press SET/ENTER to set the new value (the setting value stops blinking but remains
bright)
● Redoing the Quick Setting
Once functions are configured with the Quick Setting, the Quick Setting function
will not appear after you restart. However, you can redo the Quick Setting by
following the procedure below.
(1) Set the Quick Setting parameter QSM to ON, and re-engage power
(2) Set the PV input type parameter IN to OFF, and re-engage power
Press SET/ENTER to accept the "YES" option.
Quick Setting starts
First, the control type parameter CNT appears.
Set the CNT (control type) to S-PI (sample PI control).
OFF is displayed for IN (the PV input type).
Set IN (PV input type) to current signal: 4–20
(4–20 = 4.00 to 20.00 mA).
Set UNIT (PV input unit) to – (none). If necessary, use the unit label "pH."
ＳＴＡＲＴ ＱＵＩＣＫ
ＳＥＴＴＩＮＧ
QSM YES
CONTRＯＬ ＴYPE
1.
2.
CNt S-PI
PV INPUT TYPE
3.
IN OFF
PV INPUT TYPE
4.
IN 4ー20
PV INPUT UNIT
5.
UNIt ー
Power
Quick Setting
start
To Next Page
