Set RH (maximum value of PV input range) to 20.00 mA (the initial value).
Set RL (minimum value of PV input range) to 4.00 mA (the initial value).
Set SDP (PV input scale decimal point position) to 2.
Set SH (maximum value of PV input scale) to 14.00 (pH).
Set SL (minimum value of PV input scale) to 0.00 (pH).
Set OT (output type selection) to 00.02: OUT terminal (current 4 to 20 mA).
Skip this parameter (not relevant).
Finally, EXIT is displayed. Select YES and press SET/ENTER to complete the
basic function setup and return to the operating screen. Or, you can select NO
to continue with the Quick Setting.

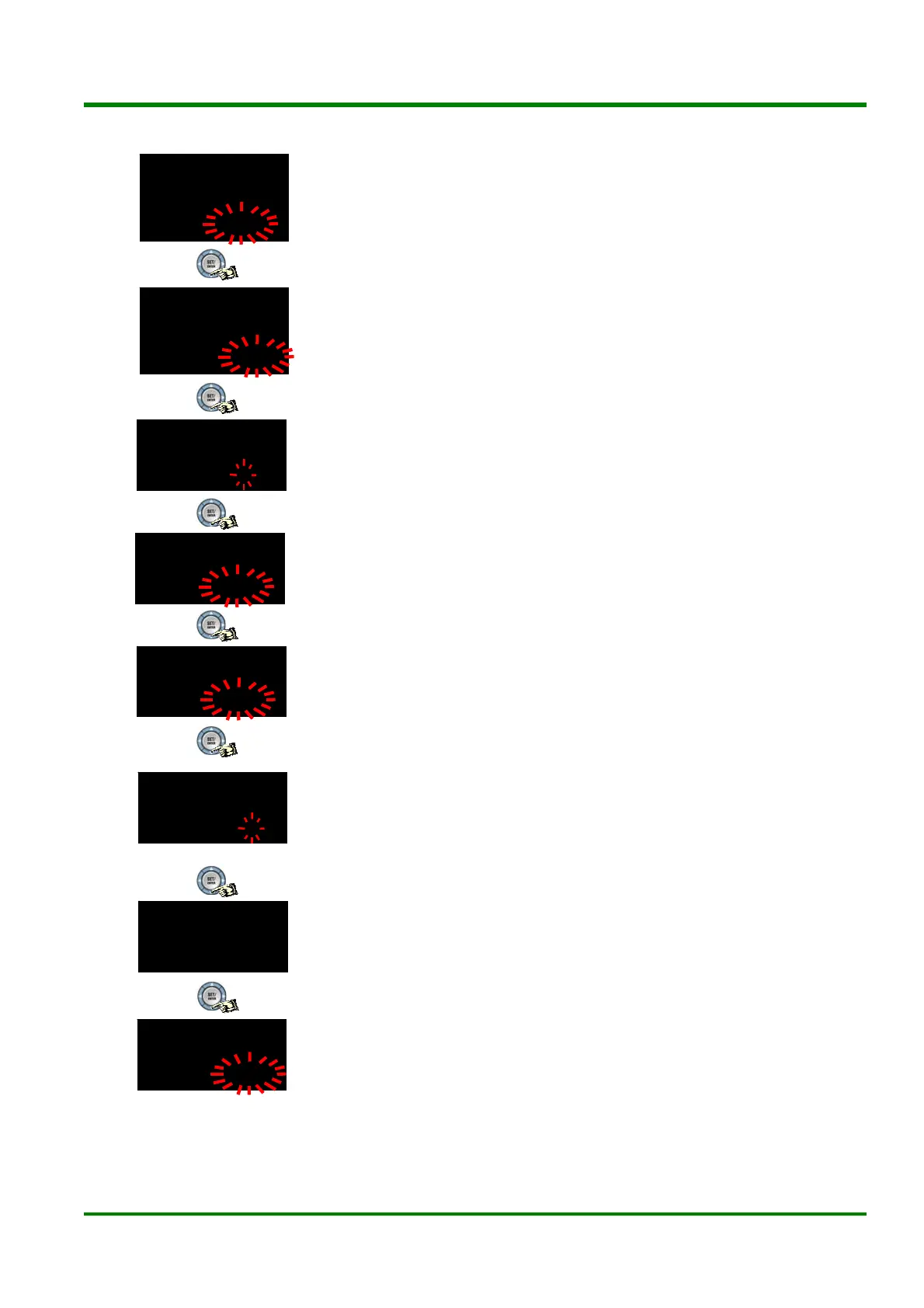

11.
13.
12.
10.
MAXIMUM
VALUE OF PV
INPUT RANGE
6.
RH 20.00
7.
FINISH
EXIt YES
MINIMUM
VALUE OF PV
INPUT RANGE
RL 4.00
CONTROL OUTPUT
CYCLE TIME
Cｔ 30.0
OUTPUT TYPE
SELECTION
8.
0ｔ 00.02
9.
SｄP2
SH 14.00
PV INPUT SCALE DECIMAL
POINT POSITION
MAXIMUM VALUE OF
PV INPUT SCALE
SL 0.00
MINIMUM VALUE OF
PV INPUT SCALE
11.
13.
12.
10.
MAXIMUM
VALUE OF PV
INPUT RANGE
6.
RH 20.00
7.
FINISH
EXIt YES
MINIMUM
VALUE OF PV
INPUT RANGE
RL 4.00
CONTROL OUTPUT
CYCLE TIME
Cｔ 30.0
OUTPUT TYPE
SELECTION
8.
0ｔ 00.02
9.
SｄP2
SH 14.00
PV INPUT SCALE DECIMAL
POINT POSITION
MAXIMUM VALUE OF
PV INPUT SCALE
SL 0.00
MINIMUM VALUE OF
PV INPUT SCALE
