■ Settings
To set PID control, thermocouple type K (range 0.0 to 1000.0°C), and position proportional output, set
the following parameters.
(1) Select the desired parameter with the UP or DOWN key
(2) Press SET/ENTER (the setting value blinks)
(3) Change the setting with the UP or DOWN key
(4) Press SET/ENTER to set the new value (the setting value stops blinking but remains
bright)

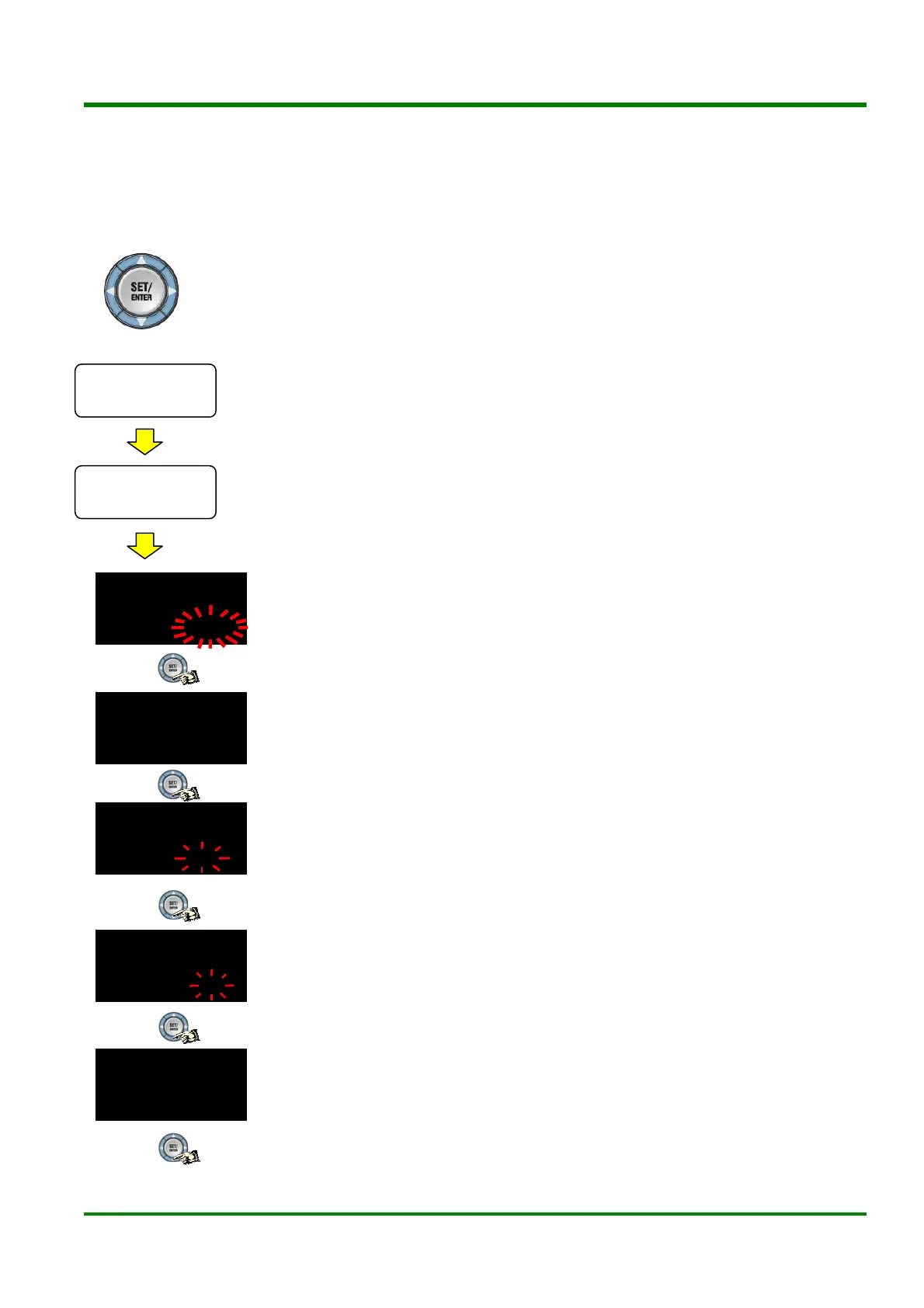

● Redoing the Quick Setting
Once functions are configured with the Quick Setting, the Quick Setting function
will not appear after you restart. However, you can redo the Quick Setting by
following the procedure below.
(1) Set the Quick Setting parameter QSM to ON, and re-engage power
(2) Set the PV input type parameter IN to OFF, and re-engage power
Press SET/ENTER to accept the "YES" option.
Quick Setting starts
First, the control type parameter CNt appears.
Set CNT (control type) to PID (initial value).
OFF is displayed for IN (the PV input type).
Set IN (PV input type) to thermocouple type K2.
（K2: -270.0 to 1000.0
°C）
Set UNIT (PV input unit) to C: Celsius (inital value)
CONTRＯＬ ＴYPE
ＳＴＡＲＴ ＱＵＩＣＫ
ＳＥＴＴＩＮＧ
1.
QSM YES
2.
CNｔ PID
PV INPUT TYPE
3.
IN OFF
PV INPUT TYPE
4.
IN K2
PV INPUT UNIT
5.
UNIｔ C
CONTRＯＬ ＴYPE
ＳＴＡＲＴ ＱＵＩＣＫ
ＳＥＴＴＩＮＧ
1.
QSM YES
2.
CNｔ PID
PV INPUT TYPE
3.
IN OFF
PV INPUT TYPE
4.
IN K2
PV INPUT UNIT
5.
UNIｔ C
Power
Quick Setting
start
