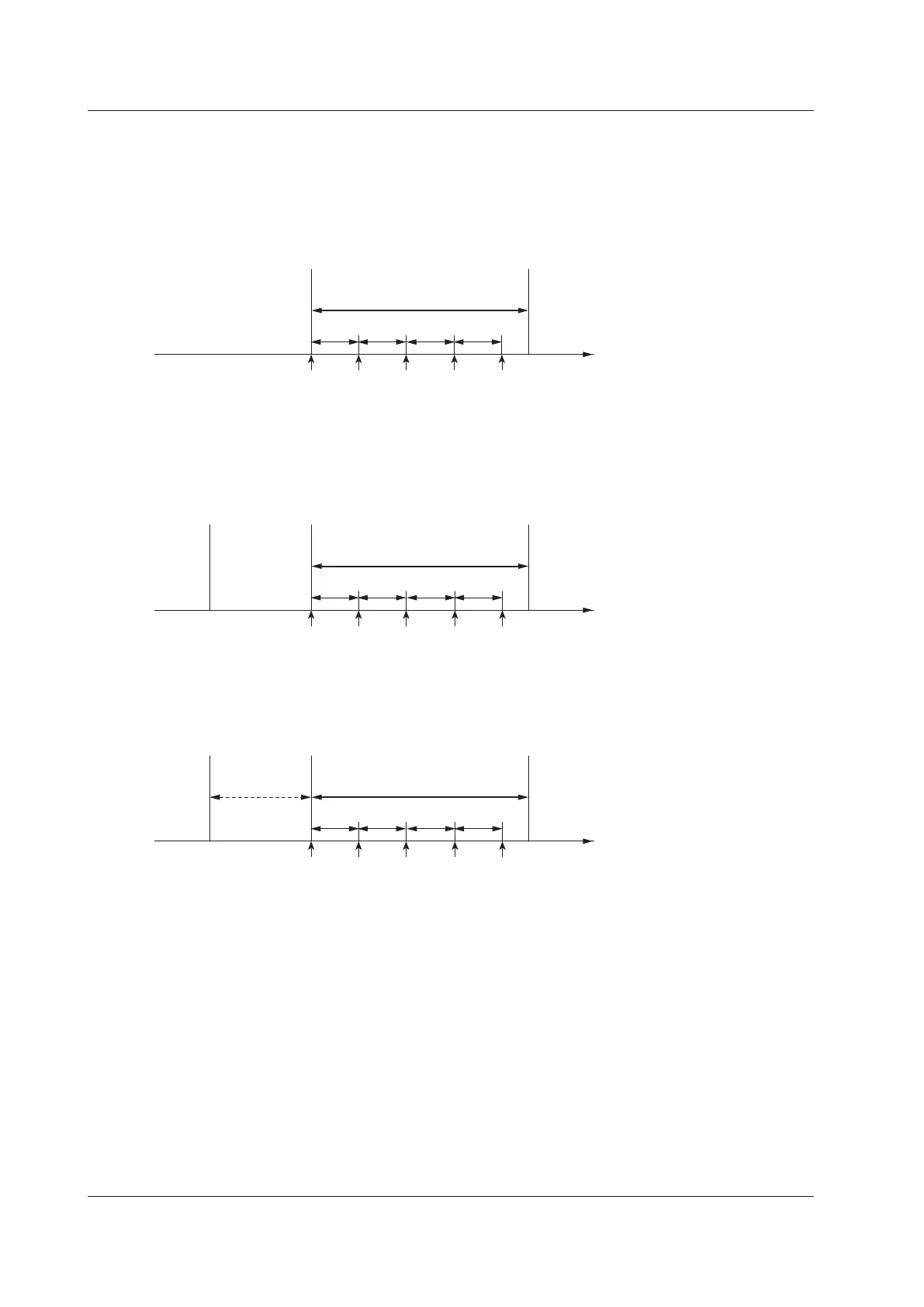

Print Timing for Different Print Modes
The timings at which automatic printing can be executed are indicated below.
Interval Print Mode
When the scheduled start time is before Auto Print ON
Time
Auto Print
ON
PRINT key
on
Auto Print
OFF
Printing
PRINT key
off
Tp: Print interval
* Data is printed if Print at Start is set to ON.
T
p
T
p
T
p
T
p
*
Real-Time Print Mode
When the scheduled start time is before Auto Print ON
Time
Start
time
Auto Print
ON
PRINT key
on
Auto Print OFF
or the ending time
Printing
PRINT key
off
Tp: Print interval
* Data is printed if Print at Start is set to ON.
T
p
T
p
T
p
T
p
*
When the scheduled start time is after Auto Print ON
Time
Start
time
PRINT key
blinking
Auto Print
ON
PRINT key
on
Auto Print OFF
or the ending time
Printing
PRINT key
off
Tp: Print interval
* Data is printed if Print at Start is set to ON.
T
p
T
p
T
p
T
p
*
20 Printing Screen Images and Numeric Data (Option)

YOKOGAWA WT1800 Specifications

General

Model	WT1800
Basic Power Accuracy	±0.1% of reading
Frequency Range	DC, 0.1 Hz to 1 MHz
Harmonic Analysis	Yes, up to 500th order
Voltage Range	1.5 V to 1000 V
Current Range	0.5 A to 50 A
Display	8.4-inch LCD
Interfaces	USB, Ethernet, GP-IB
Sampling Rate	2 MS/s
Dimensions	426 mm x 177 mm x 400 mm
