4-14
All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation TI 11M12A01-01E
4. Application<Toc> <Ind>
4.5 Garbage Incinerator
This is a facility to handle by incineration the combustible waste generally contained in municipal
garbage.
The exhaust gas of the incinerator outlet contains large quantities of dust and corrosive gasses,
and a large water vapor component.
Yo k ogawa should be consulted concerning the installation of the unit.
T0414.EPS
Sample point
Scrubber outlet
(or stack)
Incinerator outlet
(gas cooler outlet)
System type
L2, L3
Detector
D1, (D3)
D5
Objective
Combustion monitoring
Combustion monitoring
H2, H3
Note: depending on the
conditions at the sample
point, a sampling type
system may be required.
Sewage Sludge
Measured Feed
Extraction Blower
Air Preheater
Cyclone
Scrubber
Deconsolidator
Dust
Auxiliary Blower
Pressurizing Blower
Hot Blast Furnace
Denitration
Tower
Electric
Precipitator
Control Oil Gun
Water
Water
Heavy Oil

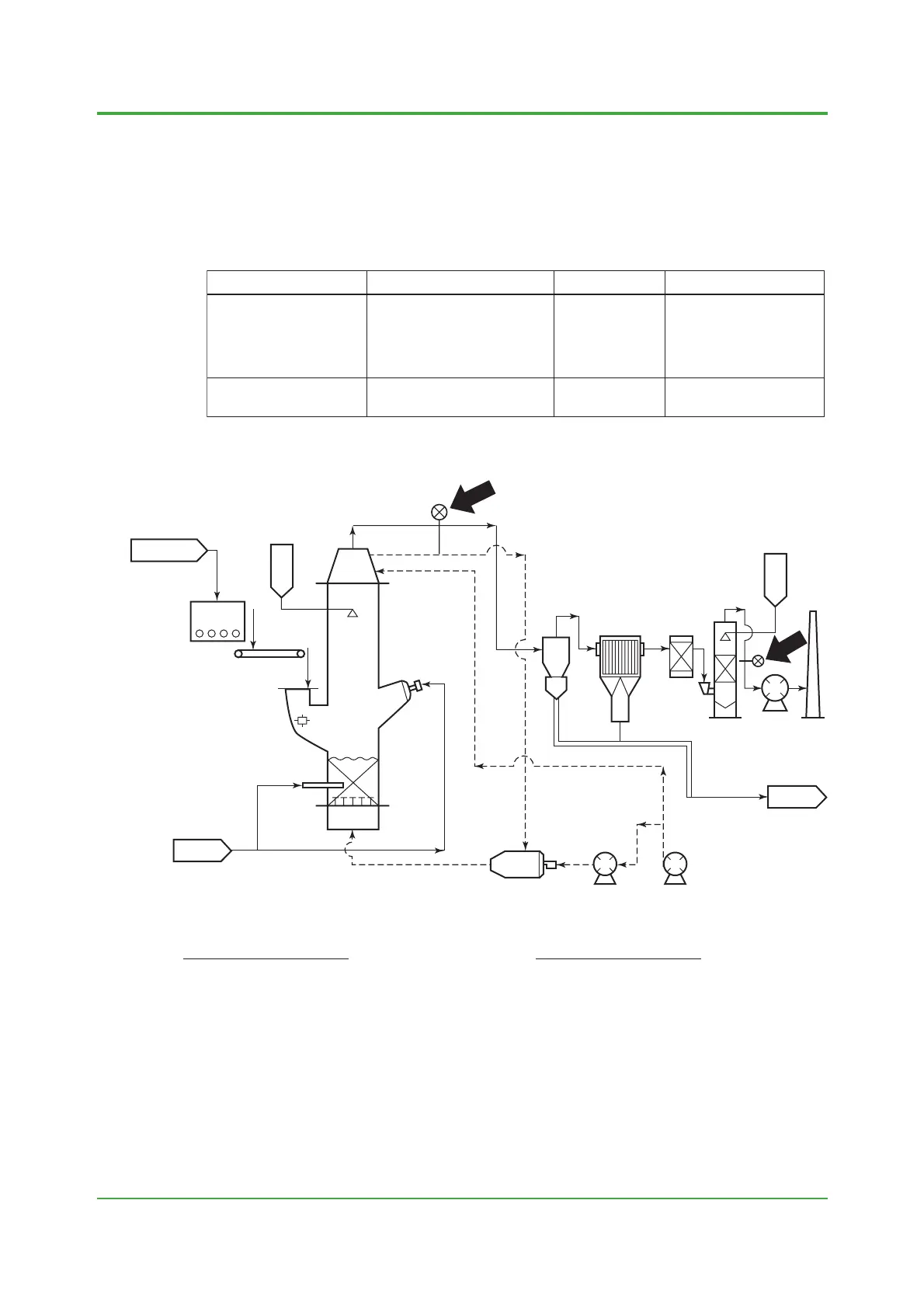

Fluidized Bed Incinerator Plant
Fluidized Bed Furnace
Startup Burner
F0414.EPS
Garbage incinerator
Incinerator outlet: 700 to 750°C
Exhaust gas temperature: 700 to 750°C
Dust: 20 to 30 g/Nm
3
Exhaust gas components: SOx Several hundred ppm
HCl 100ppm
Scrubber outlet
Exhaust gas temperature: 80 to 120°C
Dust: 0.1 g/Nm
3
maximum
May 31, 2004-00
To Next Page
