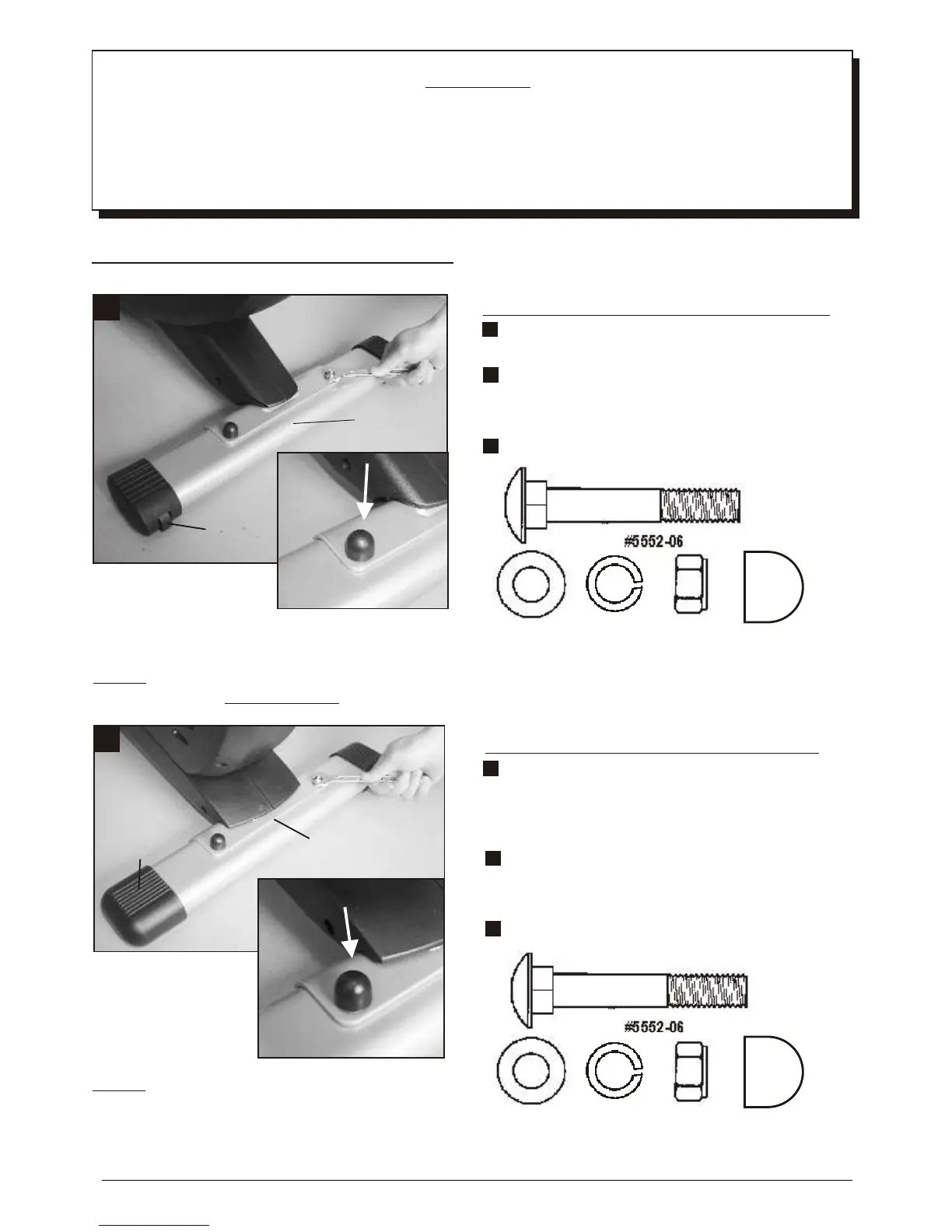

GENERAL
ASSEMBLY INSTRUCTION
REMOVE ALL THE PARTS OF YOUR YORK C520 FROM THE CARTON AND PLACE
THEM ON THE FLOOR CAREFULLY.
FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT WILL MAKE IT EASIER
FOR YOU TO ASSEMBLE YOUR YORK C520 CYCLE.
X2
X2
ATTACH THE FRONT STABILIZER
The front stabilizer has moving wheels near
each end.
The rear stabilizer has end caps with an
adjustable knob fitted under neath that can
vary in height to enable you to level the cycle
on uneven floors.
ATTACH THE REAR STABILIZER
#5552-06
#5552-07
#5552-08 #5552-09
NOTE: Make sure you fasten the nuts and
bolts securely for your safety and
comfort when cycling.
NOTE: This equipment has been supplied with some Nylon
Locknuts. It is essential that the
nuts are fully tightened onto the bolts, so that the bolt penetrates through the nylon insert.
Fix the front stabilizer to the main frame
and secure, using two carriage bolts,
washers, spring washers and nylon locknuts.
Fix the plastic caps onto the locknut heads.
#5552-22
Fix the rear stabilizer to the main frame and
secure, using two carriage bolts, washers,
spring washers and nylon locknuts.
Fix the plastic caps onto the locknut heads.
X2
X2
#5552-06
#5552-07
#5552-08 #5552-09
#5552-22
YORK C520 / 03
