REMOVAL PROCEDURE

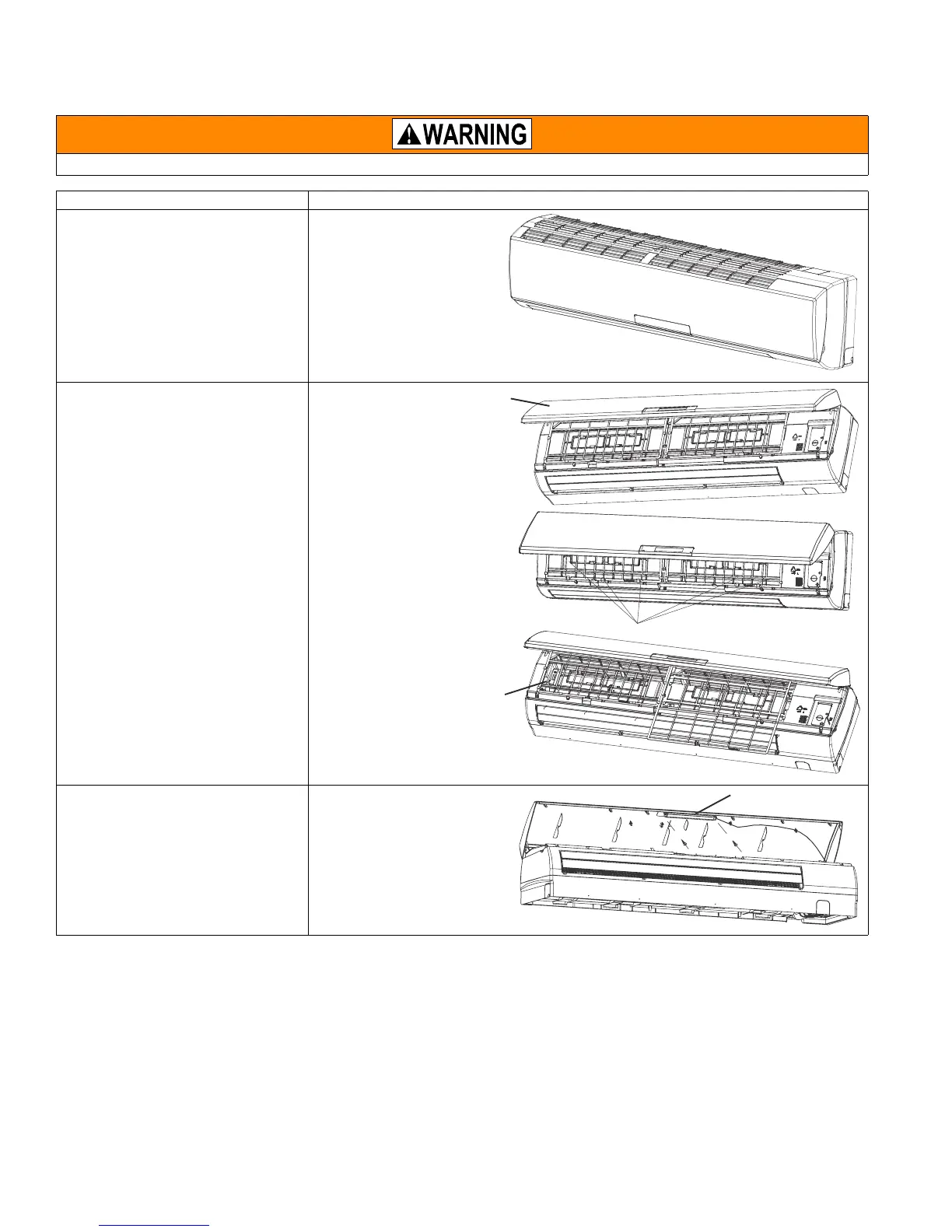

Removal Procedure of Indoor Unit
Be sure to wait for a minimum of 10 minutes after turning off all power supplies before disassembly.
STEPS PROCEDURES
1. Before disassembly of the unit
2. Remove filter
3. Remove display
Axonometric drawing for the
complete unit.
panel
filter
a. Open the panel.
b. Loosen the clasps
on the filter.
c. Draw out two
pieces of filter.
Display
Remove 2 screws fixing display,
and then remove the filter.
To Next Page
