4. Remove panel
5. Remove horizontal louver
6. Remove top cover of electric box

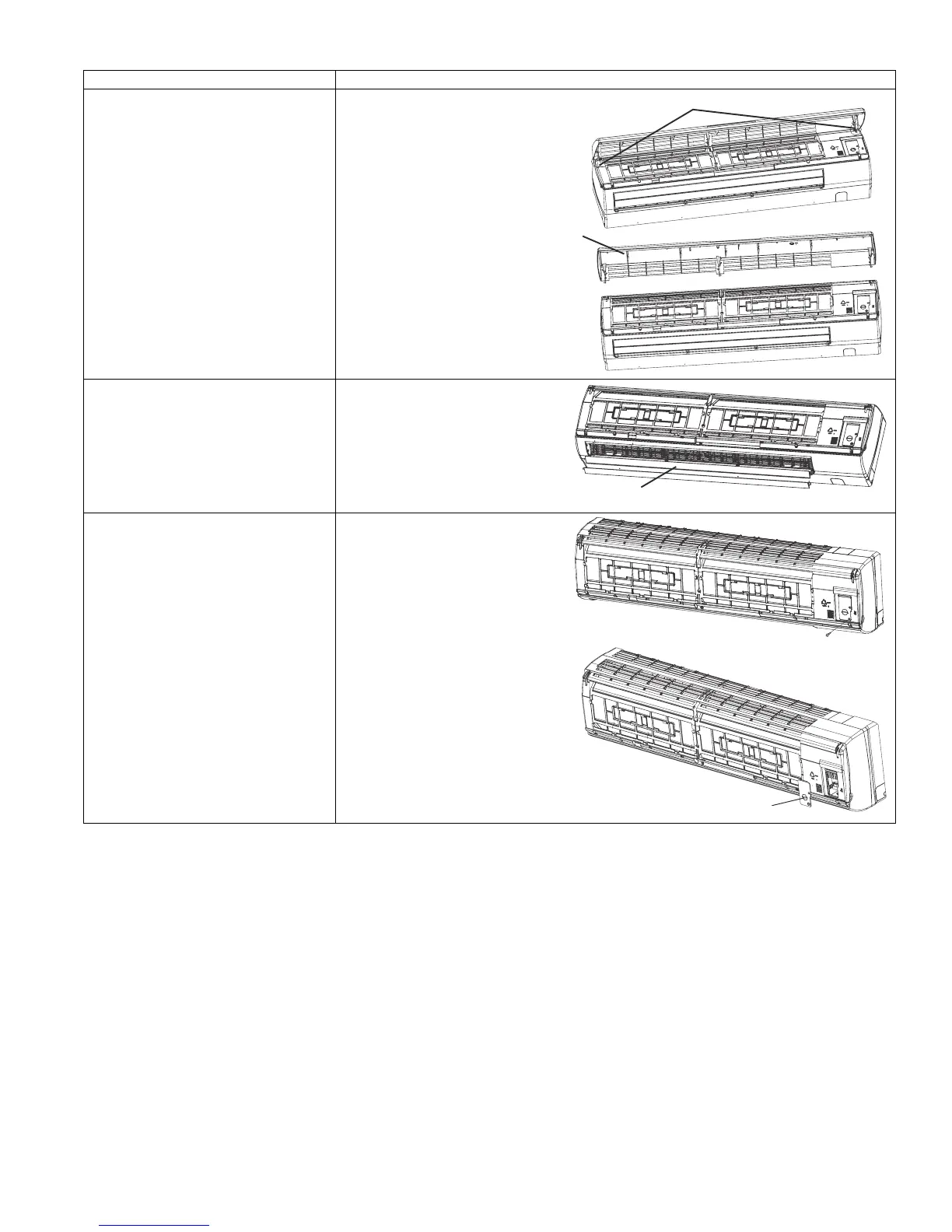

STEPS PROCEDURES
Clasp
Panel
Pull the clasps at both sides slightly,
and then remove the panel.
horizontal louver
Remove the axial bush on the
horizontal louver, and then
remove the horizontal louver.
Screw
Top cover of electric box
a. Remove screws fixing the
top cover of electric box.
b. Remove the top cover of
electric box.
