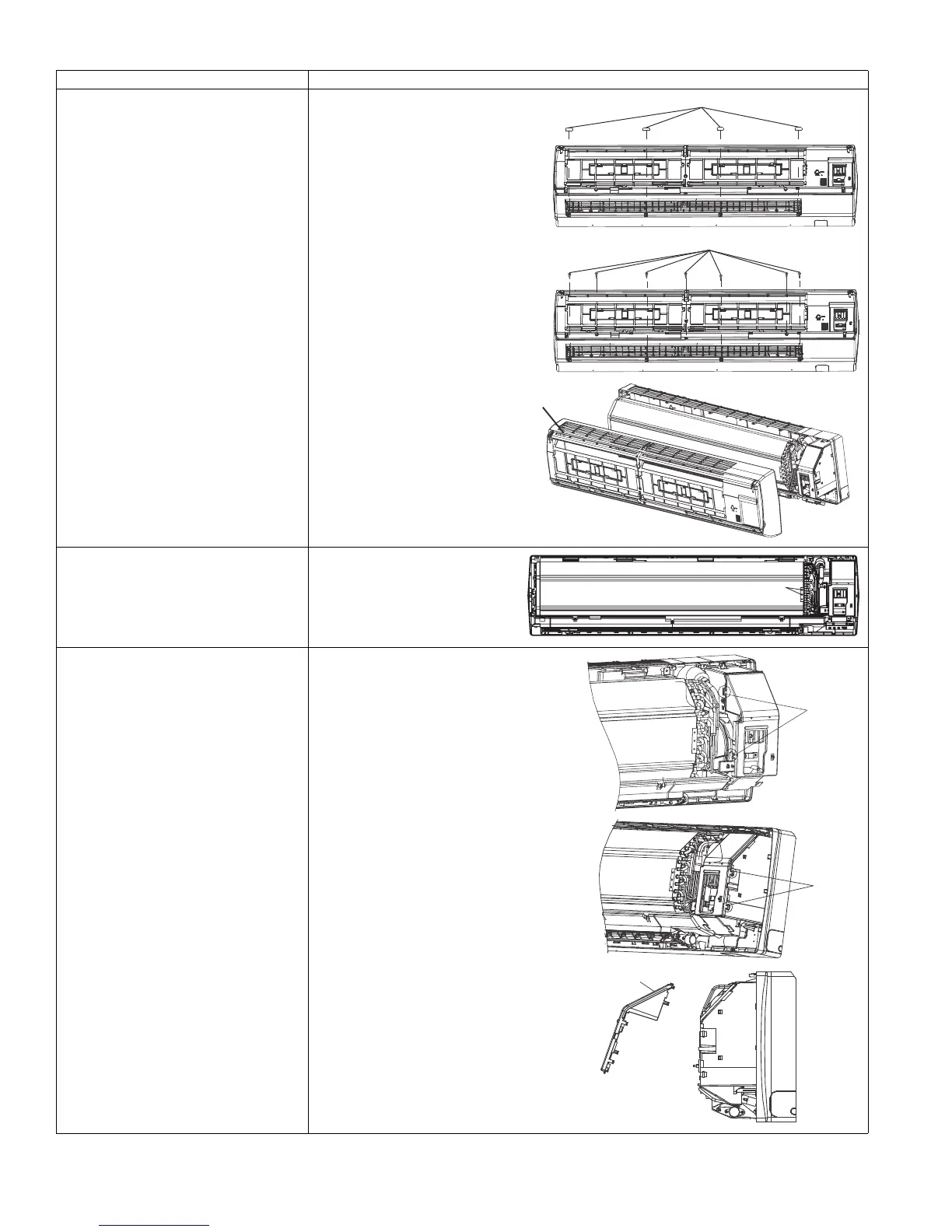

7. Remove front case
8. Remove earthing wire
9. Remove electric box cover
STEPS PROCEDURES
Screw Cap
Screw
Front Case
a. Remove the screw caps on front case.
b. Remove screws connecting
the front case.
c. Remove the front case.
screw
Remove earthing screws, and
then remove the earthing wire.
Clasp
Clasp
electric box cover
a. Loosen clasps at the left side of
electric box.
b. Loosen clasps on the right side of
electric box.
c. Remove electric box cover.
