10. Remove temperature sensor
11. Remove electric box
12. Remove water tray
13. Remove connection pipe between
indoor and outdoor units

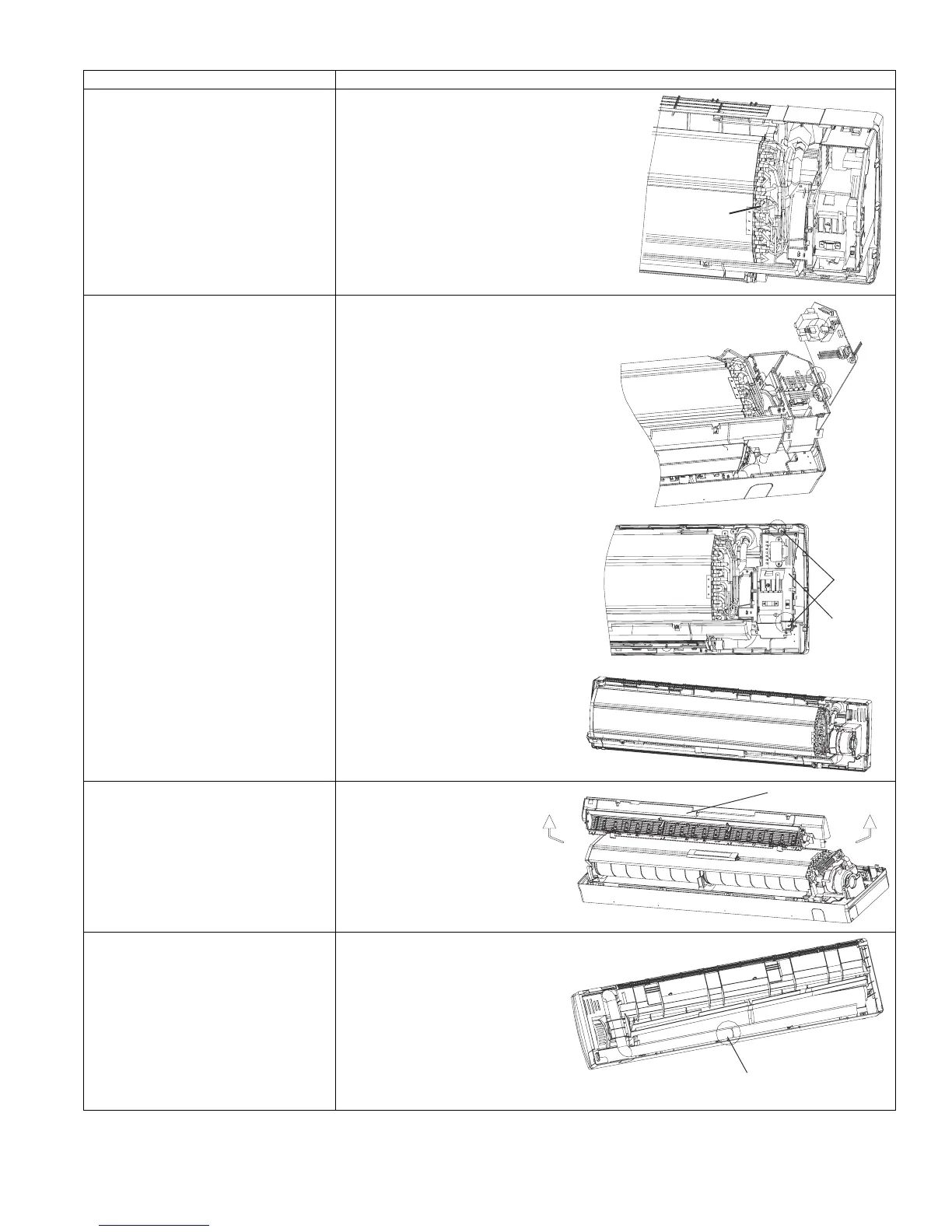

STEPS PROCEDURES
temperature sensor
Pull out the indoor temperature sensor.
Screw
Electric
Box
a. Pull out 6 sockets on PCB board.
b. Pull out two screws on electric box.
c. Remove the electric box.
Water Tray
Pull the water tray upwards,
and then remove the water tray.
Connection position for indoor and
outdoor units' connection pipe
Separate the connection pipe
between indoor and outdoor units.
