4. Remove guard grille
5. Remove handle
6. Remove right side plate
7. Remove electric box

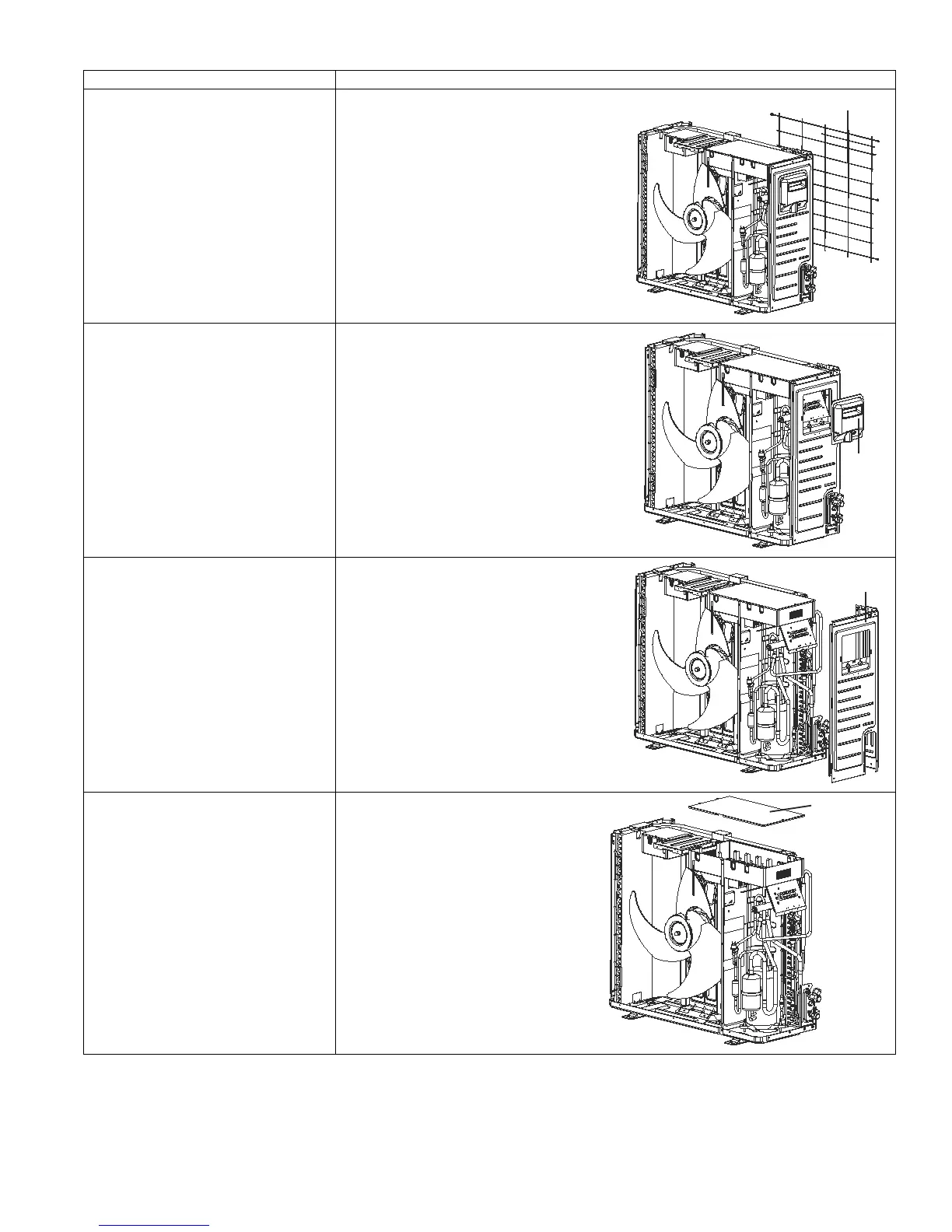

STEPS PROCEDURES
Twist off the screws fixing the guard grille
and then remove the guard grille.
Guard Grille
Twist off the screws fixing the handle
and then remove the handle.
Handle
Twist off the screws connecting the right
side plate and chassis, valve support and
condenser, and then remove the right
side plate.
Right
Side Plate
a. Twist off the screws on electric box
cover with screwdriver, and then
remove the electric box cover.
Electric Box
Cover
