York MAXE OPTIVIEW YK User Manual

FORM 160.54-M1(503)
13
YORK INTERNATIONAL

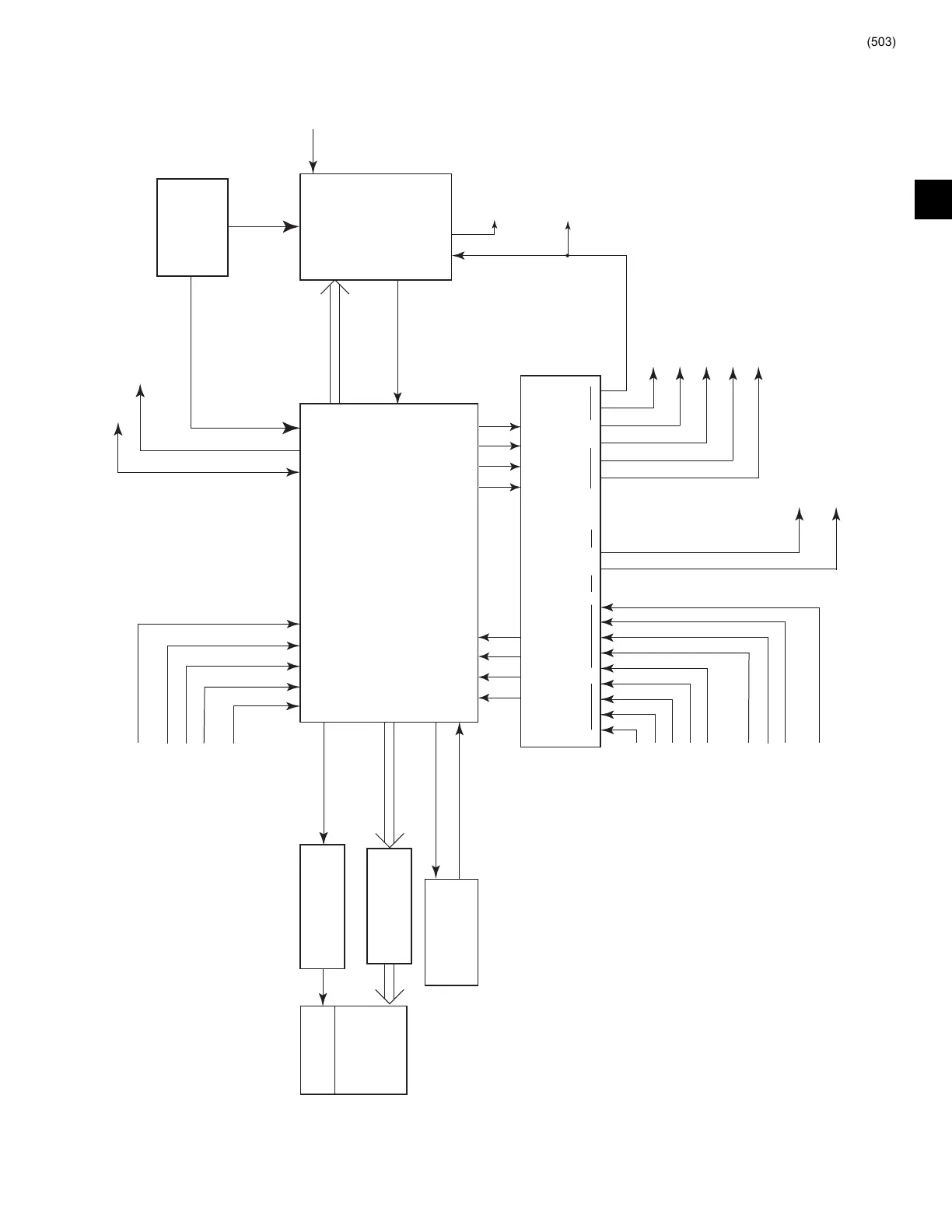

FIG. 1 – OPTIVIEW CONTROL CENTER - ELECTRO-ME CHAN I CAL STARTER APPLICATIONS
LD09036
2
POWER
SUPPLY
DIGITAL
IN
MICROBOARD
I / O BOARD
TRIAC
OUT
RELAY
OUT
KEYPAD
DISPLAY
INTERFACE
BOARD
LIQUID
CRYSTAL
DISPLAY
LAMP
BACKLIGHT
INVERTER
BOARD
LAMP
CONTROL
ROW IN
COLUMN OUT
DISPLAY DATA
VANE MOTOR SWITCH
REMOTE CYCLING
HIGH PRESSURE SAFETY
LOCAL START / STOP SWITCH
CHILLED & CONDENSER WATER FLOW SWITCHES (STYLE "E" AND
EARLIER CHILLERS; OPTIONAL STYLE F AND LATER CHILLERS WITH
FLASH MEMORY CARD VERSION C.MLM.01.08.XXX OR LATER VERSIONS)
OIL PUMP VSD CYCLING STATUS
MOTOR CONTROLLER SHUTDOWN
REMOTE LEAVING CHILLED WATER TEMP & CURRENT
LIMIT SETPOINTS (CONTACT CLOSURE)
HIGH SPEED THRUST BEARING LIMIT SWITCH ("P" COMPRESSORS AND
STYLE "F" AND LATER CHILLERS WITH "G" AND "H5-8" COMPRESSORS)
VARIABLE ORIFICE CONTROL
PRE-ROTATION VANE CONTROL
STATUS / ALARM CHILLER SOLENOID VALVES OIL PUMP STARTER OIL HEATER ON/OFF CHILLED & CONDENSER WATER PUMP STARTERS
COMPRESSOR
MOTOR START
TO STARTER
MOTOR CONTROLLER SHUTDOWN TO I/O BOARD
MULTIPLEXED DATA
ADDRESS
CM-2
CURRENT
MODULE
COMPRESSOR MOTOR CURRENT
+ 24 VDC
+12 / -12 / +5 VDC
OIL PUMP VSD SPEED CONTROL
RS-232 / RS-485 SERIAL DATA
FACTORY-MOUNTED CHILLED AND CONDENSER LIQUID THERMAL-TYPE
FLOW SENSORS (STYLE "F" AND LATER CHILLERS)
CHILLER TEMPERATURES & PRESSURES
CONDENSER REFRIGERANT LEVEL
HIGH SPEED THRUST BEARING POSITION (NOT APPLICABLE TO "P" COMPRESSORS
AND STYLE "F" AND LATER CHILLERS WITH "G" AND "H5-8" COMPRESSORS)
REMOTE LEAVING CHILLED WATER TEMP &
CURRENT LIMIT SETPOINTS (0-20mA, 4-20 mA / 0 - 10 VDC, 2-10VDC)
