FORM 160.54-M1(503)

YORK INTERNATIONAL

LIQUID CRYSTAL DISPLAY

LG SEMICON LP104V2-W

MOUNTING

PLATE

DISPLAY INTERFACE

BOARD 031-01765-001

DISPLAY CABLE

031-01769-000

INVERTER CABLE

031-01770-003

BACKLIGHT

INVERTER

BOARD

031-01789-000

LABEL

BACKLIGHT BULB

025-34564-000

4564

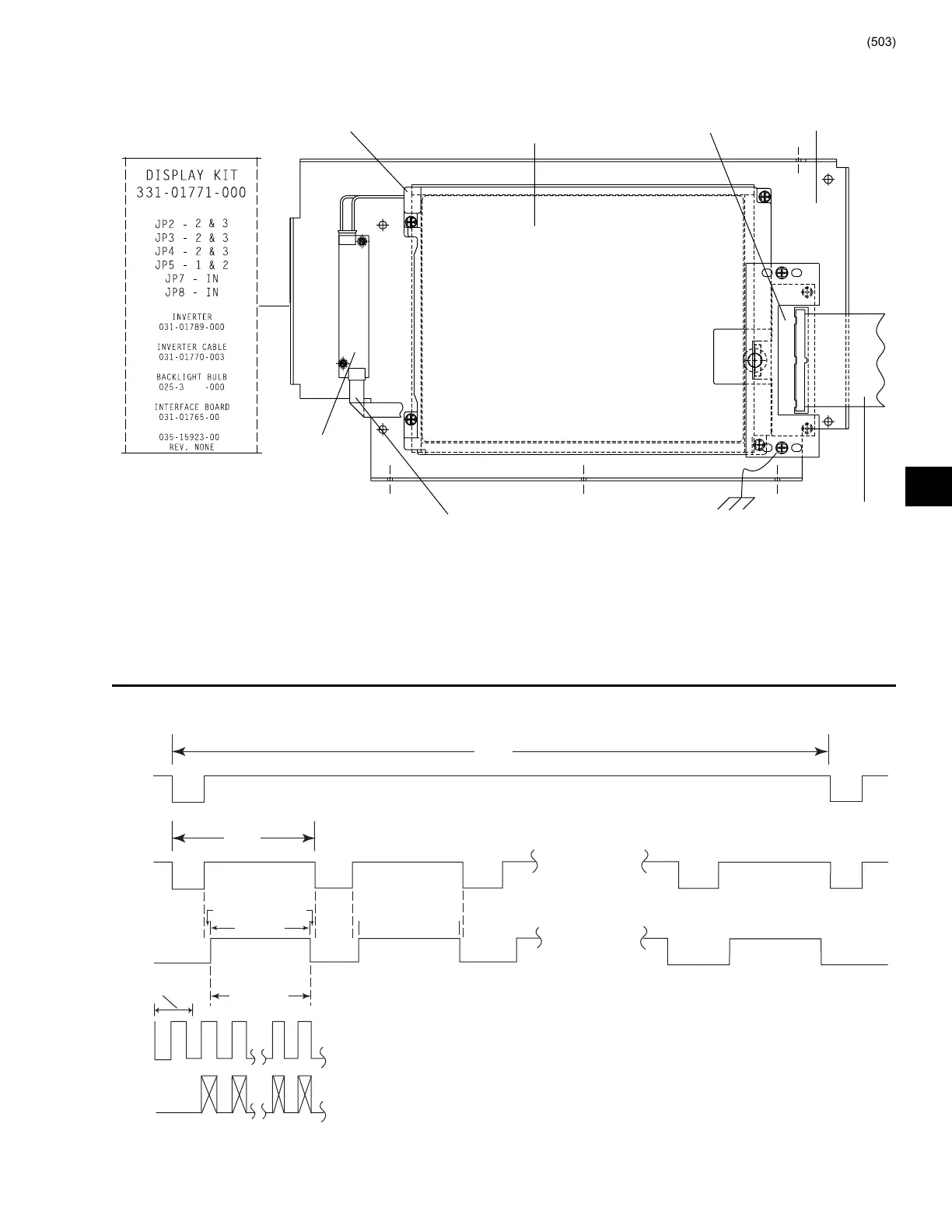

FIG. 22 – LIQUID CRYSTAL DISPLAY ASSEMBLY - LG SEMICON LP104V2-W

LD05525

NOTE:

1. Conﬁ gure Microboard Program Jumpers per label.

640 CLKS

640

COLUMNS

31US

VSYNC

480 ROWS

16MS

ROW 480

ROW 1

ROW 2

BP FP

DISPLAY

PERIOD

DISPLAY

PERIOD

DISPLAY

PERIOD

HSYNC

ENABLE

CLK

(25.18

MHz)

RGB

39.72 NS

FIG. 23 – LIQUID CRYSTAL DISPLAY TYPICAL CONTROL SIGNAL TIMING

LD04066

NOTES:

1. BP = Back Porch = 4-48 CLKS

2. FP = Front Porch = 2-16 CLKS
