York MILLENNIUM YS - Overall Dimensions - English, S0 Thru S3 Compressor

14 YORK INTERNATIONAL
LD00068
S0 and S1 COMPRESSOR S2 COMPRESSOR S2 and S3 COMPRESSOR
SHELL CODES (Cooler – Condenser)
B-B B-C C-B C-C B-B B-C C-B C-C C-D D-C D-D
A – TUBE SHEET WIDTH 4'–2-7/8" 5'–2-1/2" 5'–2-1/2"
A
1
– OVERALL WIDTH 4'–6-3/4" 4'–6-1/4" 4'-6-3/4" 4'–6-1/4" 5'–3-3/4" 5'–3-3/4"
B – OVERALL HEIGHT
3
5'–8-5/8" 5'–11-1/2" 5'–10-1/4" 5'–11-1/2" 5'–11-1/4" 6'–3-1/4" 6'–3-1/4" 6'–3-1/4" 6'–7-5/8" 6'–8-3/4" 6'–9-3/8"
C – COOLER C/L 1'–1-7/8" 1'–5" 1'–5"
D – CONDENSER C/L 0'–11-5/8" 1'–2-1/4" 1'–2-1/4"

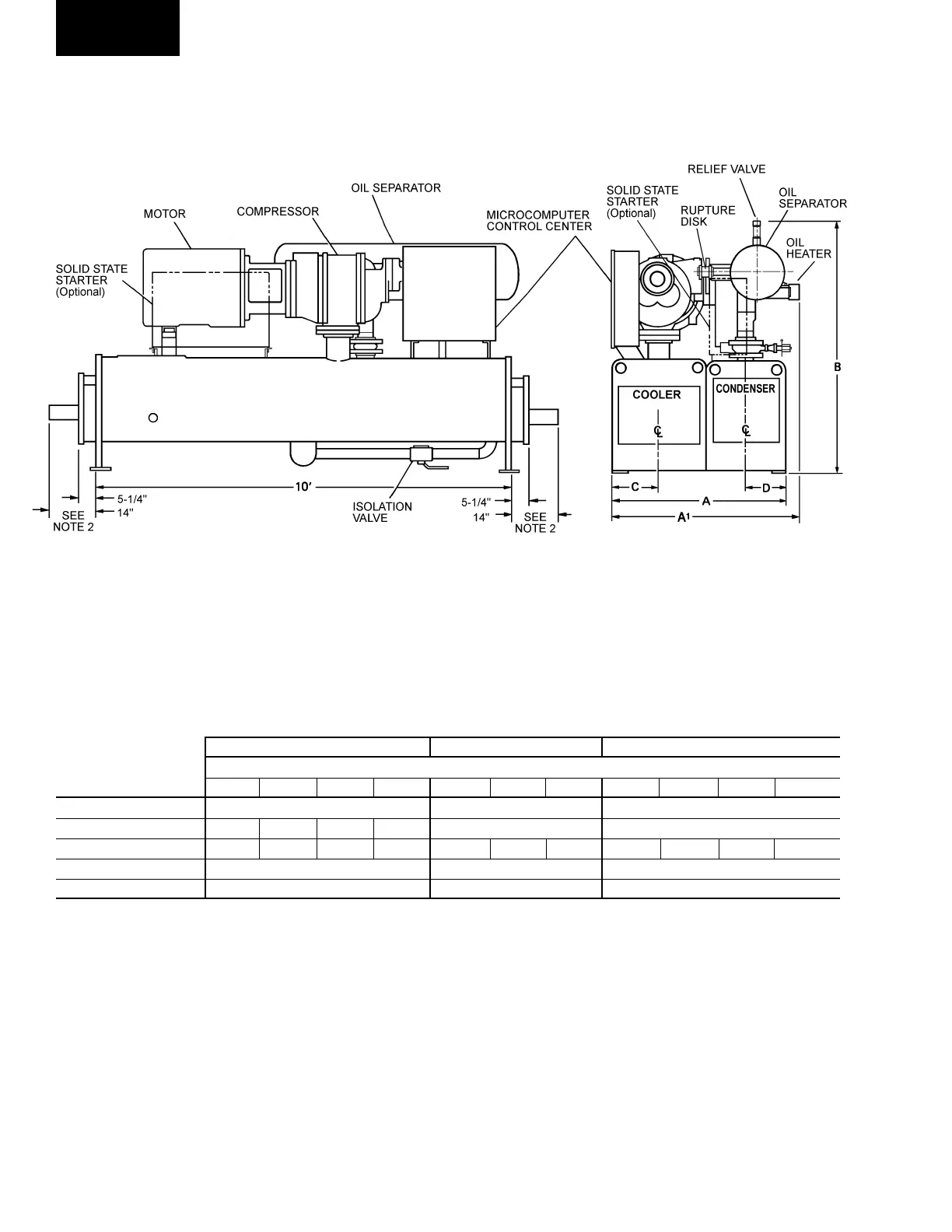

FIG. 4 – OVERALL DIMENSIONS - ENGLISH, S0 THRU S3 COMPRESSOR
Installation
