York PHG6A24 - Dimensions and 4 Point Load Weights

5322625-UIM-A-0417
Johnson Controls Unitary Products 5

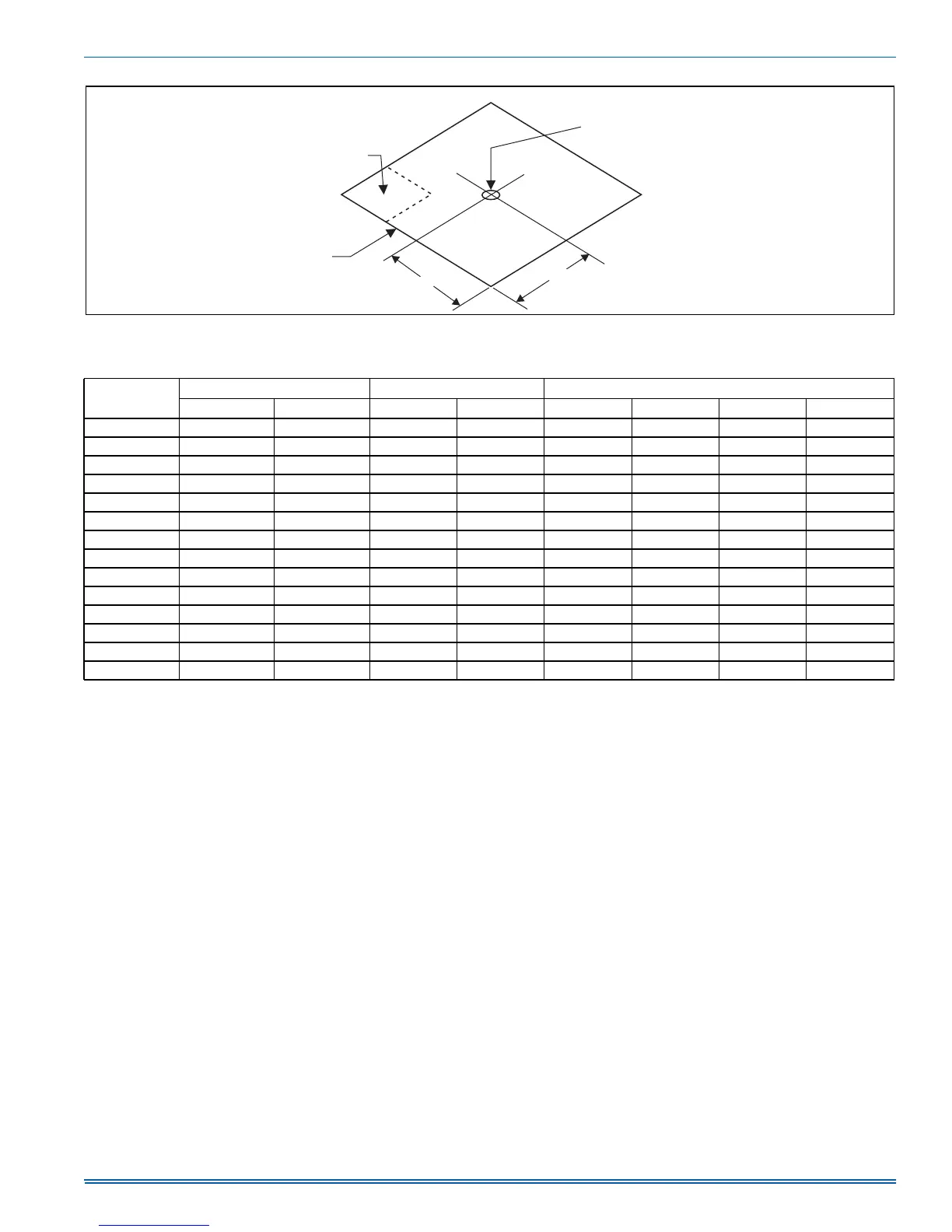

FIGURE 2: Dimensions and 4 Point Load Weights
Table 2: Weights, Dimensions, and 4 Point Load Weights
Model Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
Shipping Operating X Y ABCD
PHG6A24050 399 394 28 15 131 101 86 76
PHG6A24075 409 404 28 15 135 103 86 80
PHG6A30050 454 449 28 15 155 108 96 90
PHG6A30075 458 453 28 15 161 102 90 100
PHG6B36065 503 498 29 14 176 122 104 96
PHG6B36100 510 505 29 14 178 123 109 95
PHG6B42065 537 532 29 14 190 132 112 98
PHG6B42100 539 534 29 14 191 133 109 101
PHG6B48065 556 551 28 14 199 137 106 109
PHG6B48100 564 559 28 14 194 141 117 107
PHG6B48125 569 564 29 14 193 146 126 99
PHG6B60065 582 577 29 14 199 151 127 100
PHG6B60100 586 581 28 14 201 152 123 105
PHG6B60125 593 588 27 15 202 151 125 110
X
CENTER OF
GRAVITY
FRONT
OF UNIT
Y
"D"
"C"
"B"
"A"
A0295-001
COMPRESSOR
