127421-YIM-C-0606
Unitary Products Group 9

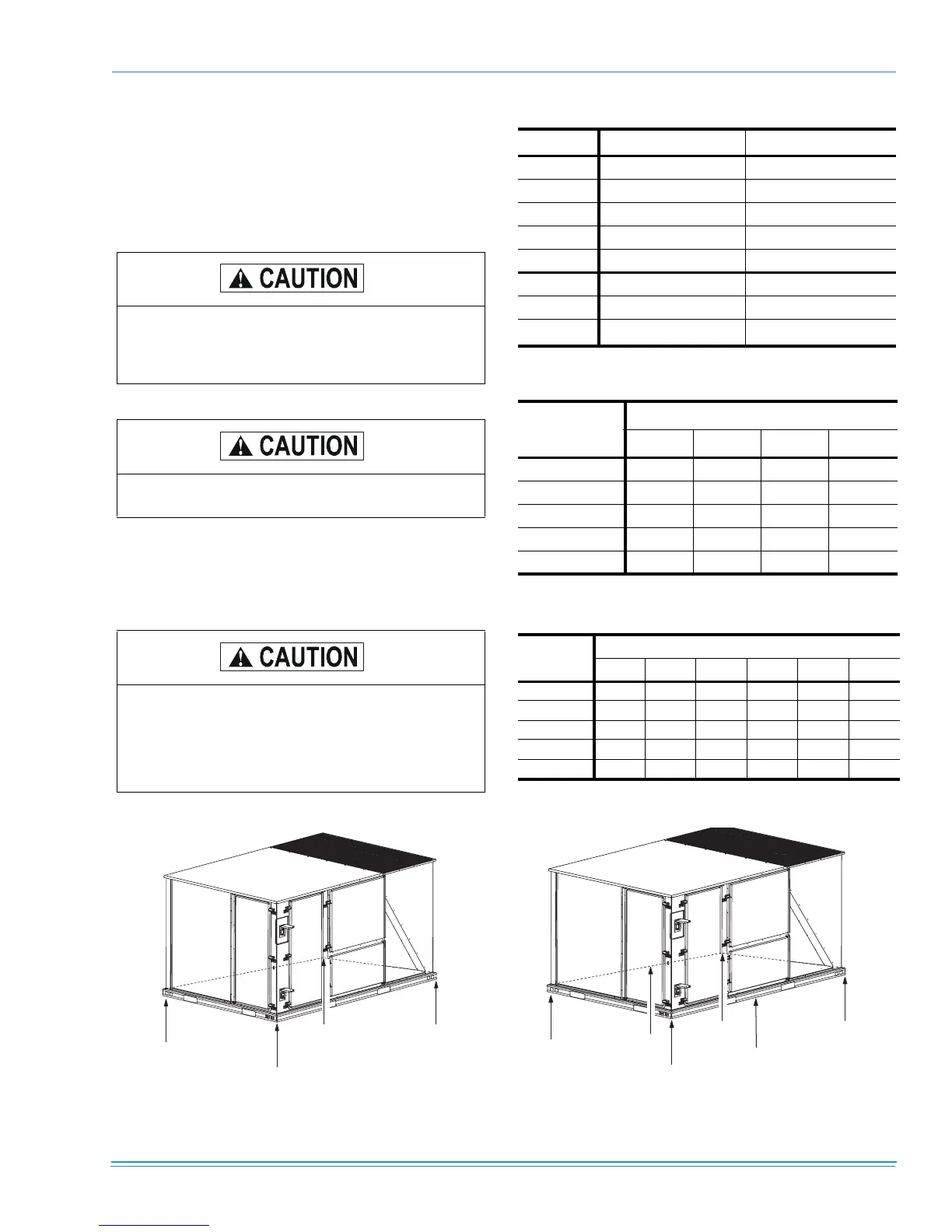

RIGGING AND HANDLING
Exercise care when moving the unit. Do not remove any
packaging until the unit is near the place of installation. Rig
the unit by attaching chain or cable slings to the lifting holes
provided in the base rails. Spreader bars, whose length
exceeds the largest dimension across the unit, MUST be
used across the top of the unit.
Units may be moved or lifted with a forklift. Slotted openings
in the base rails are provided for this purpose.
LENGTH OF FORKS MUST BE A MINIMUM OF 60
INCHES.
If a unit is to be installed on a roof curb other than a
YORK roof curb, gasketing must be applied to all
surfaces that come in contact with the unit under-
side.
Before lifting, make sure the unit weight is distrib-
uted equally on the rigging cables so it will lift evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils should be protected from rig-
ging cable damage with plywood or other suitable
material.
FIGURE 5 - UNIT 4 POINT LOAD
D
A
CB
L E F T
F R O N T
TABLE 3: UNIT WEIGHTS
Model Shipping Weight (lb.)
Operating Weight
(lb.)
BP078
1104 1099
BP090
895 890
BP102
1178 1173
BP120
1212 1207
BP150
1202 1197
Econ.
85 84
w/ PE
150 148
Elec. Heat
*
49 49
*.
54kW heater.
TABLE 4: 4 POINT LOAD WEIGHT
Model
Location (lbs.)
ABCD
BP
078
241 206 300 352
BP090
199 148 232 311
BP102
257 220 321 375
BP120
265 226 330 386
BP150
263 224 327 383
TABLE 5: 6 POINT LOAD WEIGHT
Model
Location (lbs.)
ABCDEF
BP078 165 148 134 195 216 241
BP090
139 113 94 147 128 218
BP102 176 158 143 208 231 257
BP120
181 163 147 214 237 264
BP150
180 161 146 213 235 262
FIGURE 6 - UNIT 6 POINT LOAD
D
A
C
B
E
F
L E F T
F R O N T
