107
YORK INTERNATIONAL
FORM 201.19-EG4

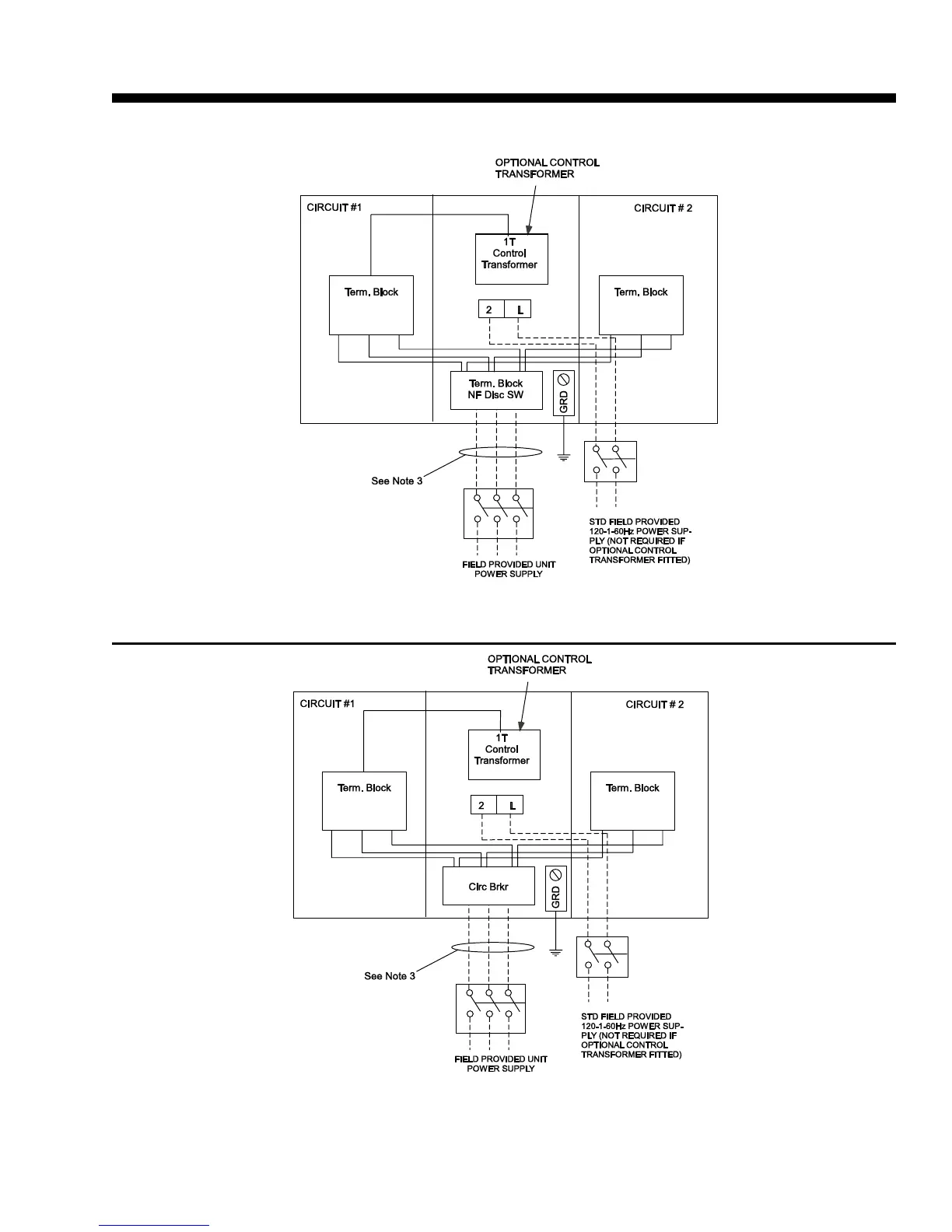

FIG. 4 – OPTIONAL SINGLE POINT POWER SUPPLY CONNECTION TO FACTORY CIRCUIT BREAKER
NOTES:
1. – – – – – – – Dashed Line indicates Field Provided Wiring.
2. The above recommendations are based on the National Electric Code and using copper connectors only.
Field wiring must also comply with local codes.
FIG. 3 – OPTIONAL SINGLE POINT POWER SUPPLY CONNECTION WITH
FIELD SUPPLIED CIRCUIT PROTECTION
To Next Page
