FORM 201.19-EG4
NOTES:
1. Placement on a level surface free of obstructions (including snow, for winter operation) or air recirculation ensures rated performance, reliable
operation and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable air ow
patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high pressure safety cutout;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higher than on spring isolators. Recommended minimum clearances: Side to wall - 2m; rear to wall - 2m; control panel end to wall - 1.2m; top
- no obstructions allowed; distance between adjacent units - 3m. No more than one adjacent wall may be higher than the unit.

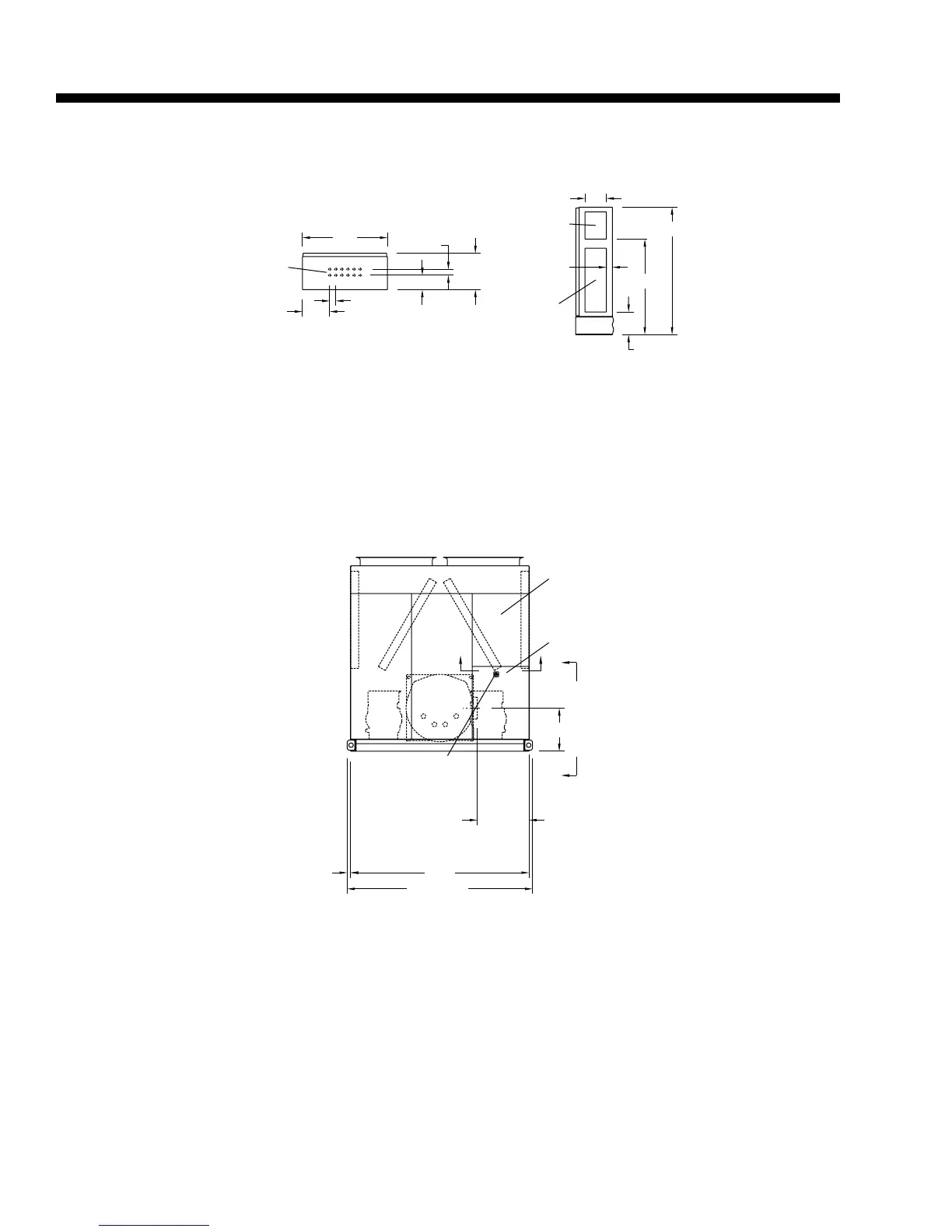

Dimensions – YCAS0398EB-YCAS0418EB (SI)
LD06135
C
B
543
C
B
2235
2331
48
1067
800
51
178
191
(12) 13
305
711
51 TYP.
229
51
120
MICROCOMPUTER
CONTROL CENTER
OPTIONS PANEL
645 (EDGE OF
BASE TO COOLER
CONNECTION)
VIEW A-A
OPENING
(229 HIGH)
OPENING
(533 HIGH)
CONTROL
POWER
VIEW C-C
CONTROL ENTRY
CONDUIT K.O.'S
VIEW B-B
CONTROL
SERVICE SWITCH
TRANSFORMER
All dimensions are in mm unless
otherwise noted.
