FORM 201.19-EG4
TYPE & SIZE
MAX LOAD DEFL.
lbs. kg in. mm
AWMR-1-530 1150 453.6 2 51
AWMR-1-531 1276 521.6 2 51
AWMR-1-532 1500 680.4 2 51
AWMR-1-551 1676 760.2 2 51
AWMR-1-552 1900 861.8 2 51
AWMR-1-553 2200 997.9 2 51
AWMR-1-531 2552 1157.6 2 51
TABLE 2 – SEISMIC ISOLATORS
TYPE & SIZE
MAX LOAD DEFL. SPRING
lbs. kg in. mm COLOR
CP-2-26 1200 408.2 1.22 30.7 Red
CP-2-27 1500 680.4 1.06 26.9 Orange
CP-2-28 1800 816.4 1.02 25.9 Green
CP-2-31 2200 997.9 0.83 21.0 Gray
CP-2-32 2600 1179.3 0.74 18.7 White
TABLE 3 – 1" SPRING ISOLATORS

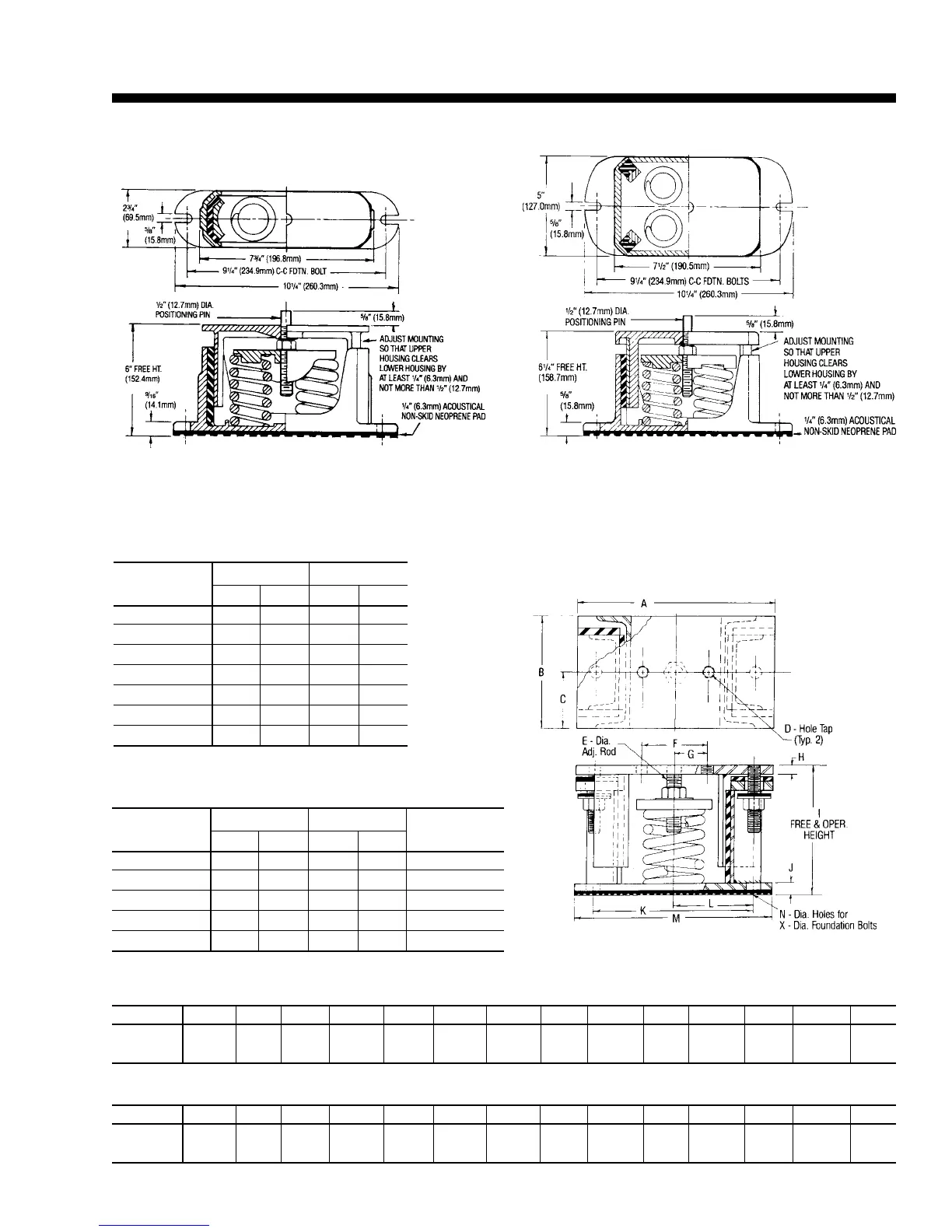

1" ISOLATOR DETAILS
LD01089
CP-2-XX
LD01168
CP-4-XX
A B C D E F G H I J K L M N/X
AWMR-1
10-1/2 6 3
5/8
3/4 3-1/2 1-3/4 1/2 9 5/8 8-1/2 4-1/4 10-1/2
3/4
50-553 11NC 5/8
TABLE 4 – DIMENSIONS: Inches
A B C D E F G H I J K L M N/X
AWMR-1
267 152 76
16
19 89 44 13 229 16 216 108 267
19
50-553 11NC 16
TABLE 4A – DIMENSIONS: MM
LD02973
AWMR-1-XXX
SEISMIC ISOLATOR DETAILS
