York SUNLINE 2000 BCH 036 - Four and Six Point Loading; Center of Gravity (All Models); Bch 4 Point Loads Weight Distribution; Bch 6 Point Loads Weight Distribution

177820-YIM-A-0506
Unitary Products Group 13

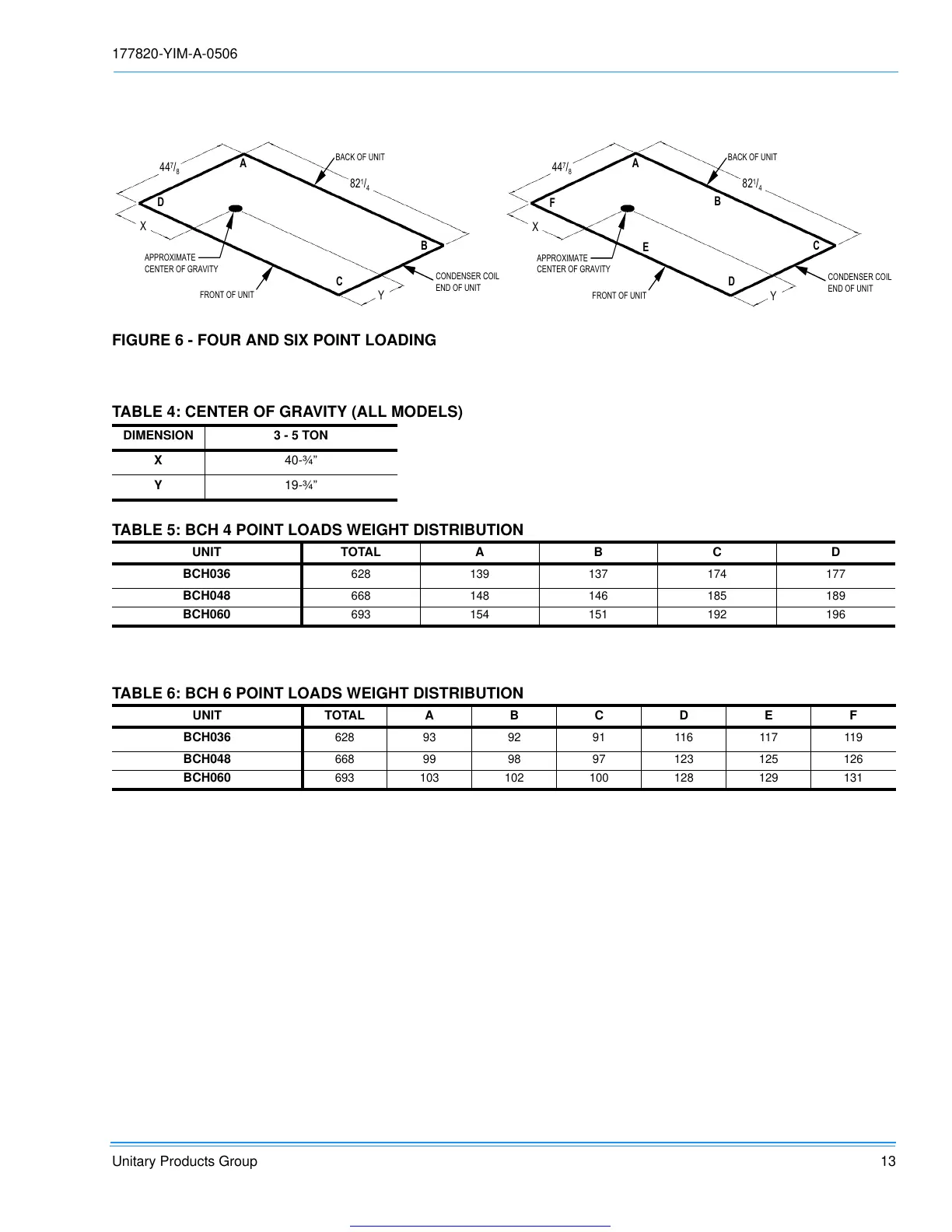

FIGURE 6 - FOUR AND SIX POINT LOADING
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 4: CENTER OF GRAVITY (ALL MODELS)
DIMENSION 3 - 5 TON
X 40-¾”
Y 19-¾”
TABLE 5: BCH 4 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTALABCD
BCH036
628 139 137 174 177
BCH048
668 148 146 185 189
BCH060
693 154 151 192 196
TABLE 6: BCH 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL A B C D E F
BCH036
628939291116117119
BCH048
668 99 98 97 123 125 126
BCH060
693 103 102 100 128 129 131
