All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of mounting feet to top of unit.
Overall length and width include mounting feet and screw heads.

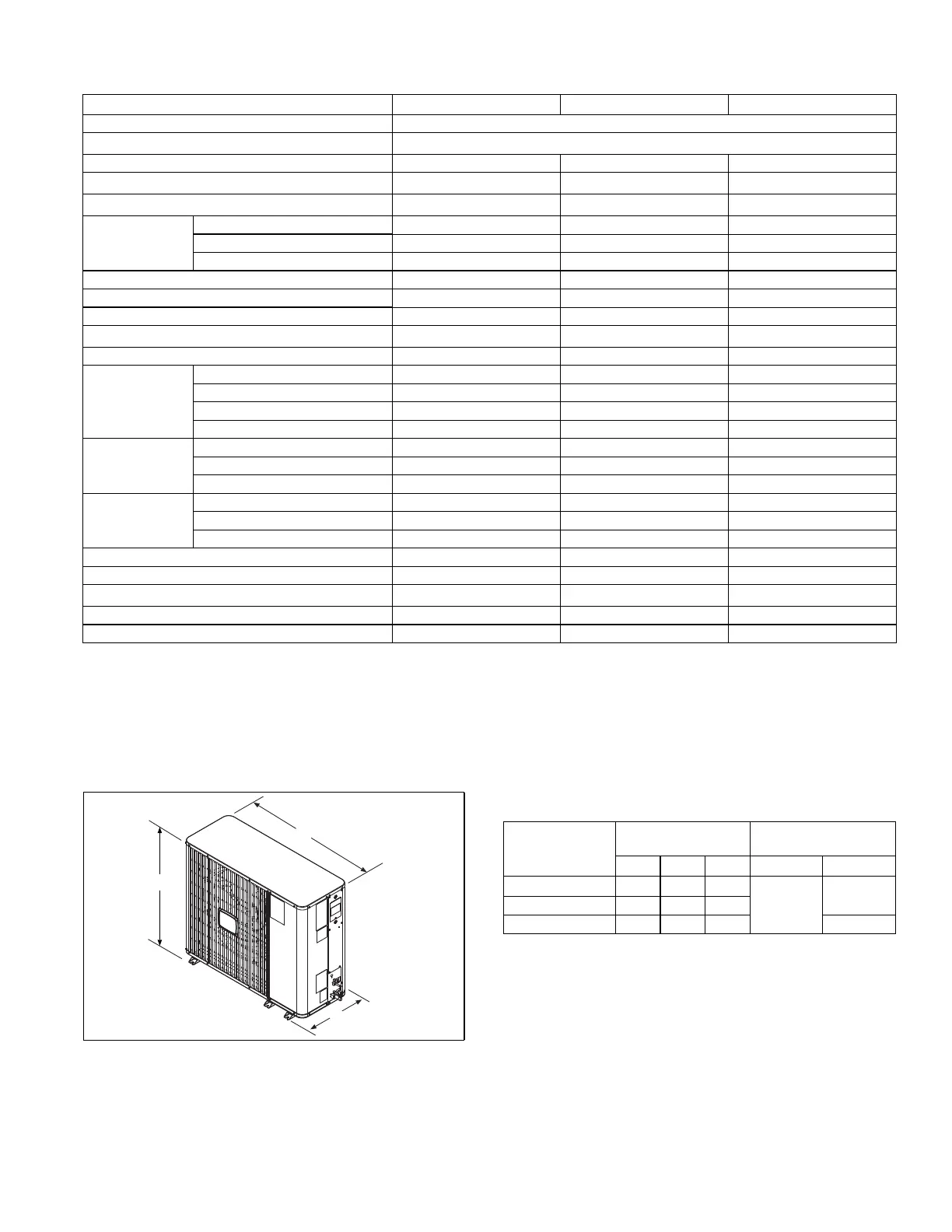

PHYSICAL AND ELECTRICAL DATA
MODEL
TCHE24S41S1 TCHE36S41S1 TCHE48S41S1
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range
1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252
Minimum Circuit Ampacity 18.3 19.1 24.6
Max. Overcurrent Device Amps
2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
30 30 40
Min. Overcurrent Device Amps
3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
20 20 25
Compressor Amps
Type Scroll Scroll Scroll
Rated Load 13.5 14.1 18.5
Locked Rotor 58.3 72.2 124.0
Crankcase Heater Yes Yes Yes
Factory External Discharge Muffler No No No
Factory External Check Valve No No No
HS Kit Required with TXV
4
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
No No No
Fan Diameter Inches 23 23 23
Fan Motor
Rated HP 1/4 1/4 1/4
Rated Load Amps 1.3 1.3 1.3
Nominal RPM 850 850 850
Nominal CFM 3200 3200 3050
Coil
Face Area Sq. Ft. 11.96 11.96 13.96
Rows Deep 1 1 1
Fins / Inch 23 23 23
Refrigerant Lines
5
5. When more than 50 feet of interconnecting tubing and more than 30 feet of vertical lift is used, consult the Application Data (part number 247077).
For long-line applications, interconnecting lines over 100 feet must be installed with liquid line solenoid.
Max. Length 200 200 200
Max. Lift 65 65 65
Max. Drop 150 150 150
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 7/8
Unit Charge (Lbs. - Oz.)
6
6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,
add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
5 - 0 6 - 6 7 - 4
Charge Per Foot, Oz. 0.62 0.62 0.67
Operating Weight Lbs. 195 215 240
B
C
A
DIMENSIONS
Unit
Model
Dimensions
(Inches)
Refrigerant Connection
Service Valve Size
A B C Liquid Vapor
TCHE24S41S1
37-1/4 20 45
3/8
3/4
TCHE36S41S1 37-1/4 20 45
TCHE48S41S1 43-1/4 20 45 7/8
