York YCAL0043 - Rooftop Locations; CHILLED LIQUID PIPING

JOHNSON CONTROLS
40
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
SECTION 5 – TECHNICAL DATA
NOTE: Water Pressure Drop Curves may extend past the minimum and maximum water ow ranges.
LD14085
OPERATION LIMITATIONS (ENGLISH)
YCAL0019-0033 HEAT EXCHANGER FLOW, GPM
YCAL COOLER CURVE
0019 A
0022 B
0028 D
0033 C
ENGLIS
H
0.1
1.0
10.0
100.0
1000.0
110 100 1000
FLOW, GPM
PRESSURE DROP, Ft H2O
A
C
B
D

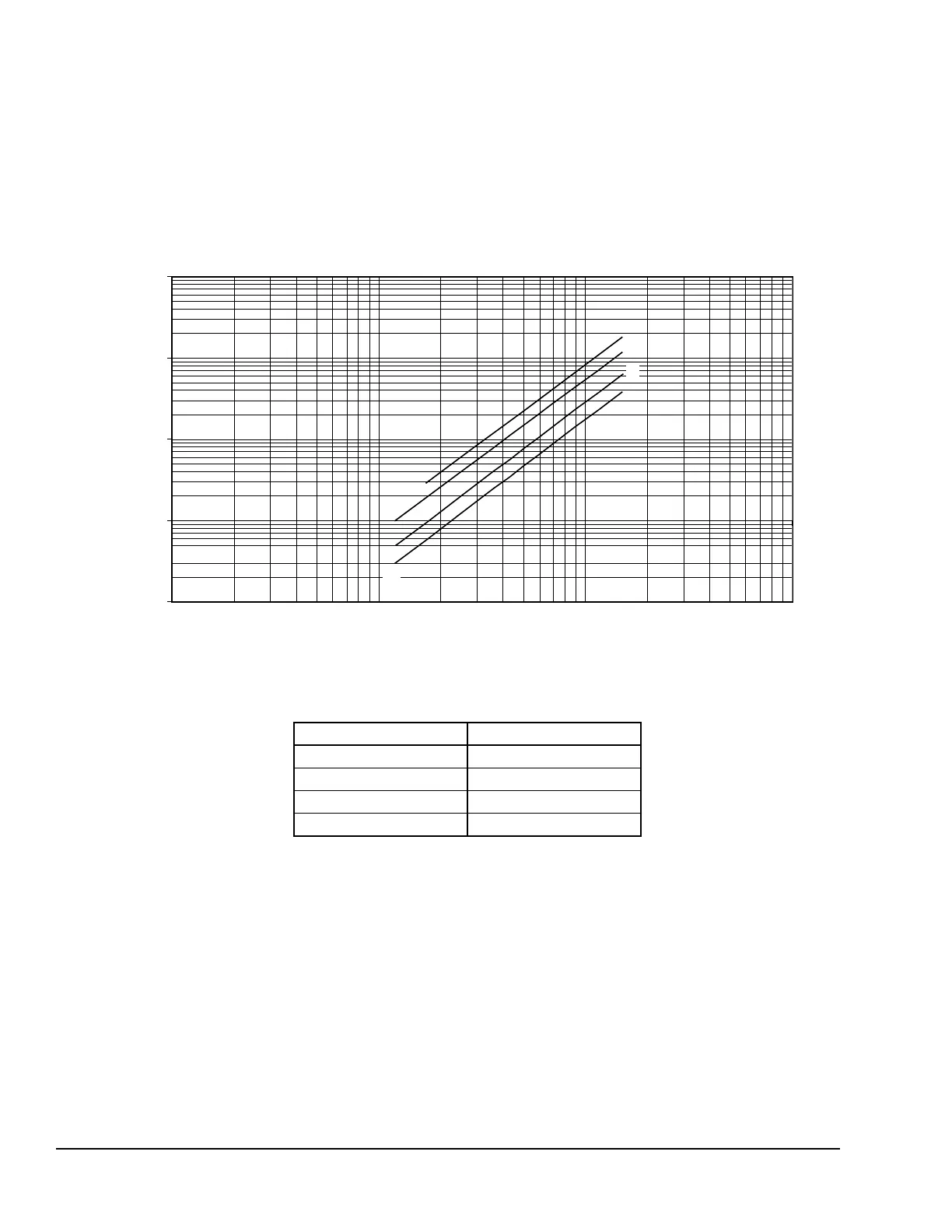

FIGURE 9 - YCAL0019-0033 HEAT EXCHANGER FLOW, GPM
