York YCAL0043 - FIGURE 12 - YCAL0043-0066 Heat Exchanger Flow, GPM

JOHNSON CONTROLS
45
SECTION 5 – TECHNICAL DATA
FORM 150.67-NM2
ISSUE DATE: 01/31/2019
5
SI
1
10
100
1000
110
100
FLOW, L/S
Press Drop, kPA
B
A
C
OPERATIONAL LIMITATIONS (SI)
NOTE: Water Pressure Drop Curves may extend past the minimum and maximum water ow ranges.
LD12452

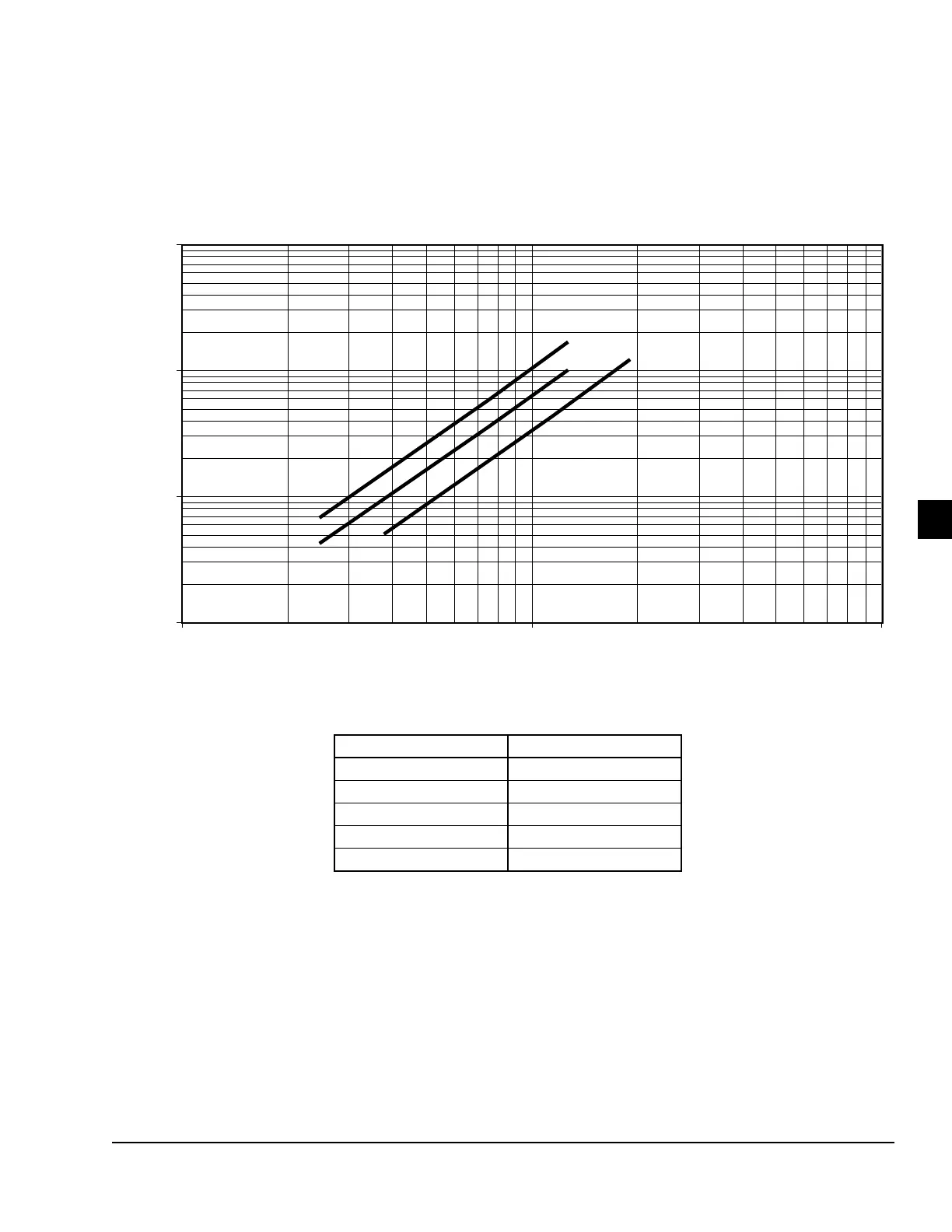

YCAL0043-0066 HEAT EXCHANGER FLOW, GPM
YCAL COOLER CURVE
0043 A
0046 B
0052 B
0056 C
0066 C
FIGURE 12 - YCAL0043-0066 HEAT EXCHANGER FLOW, GPM
