York YK Series - Q3-Q8 Compressors (with Falling Film)

Q3-Q8 compressors (with falling film)

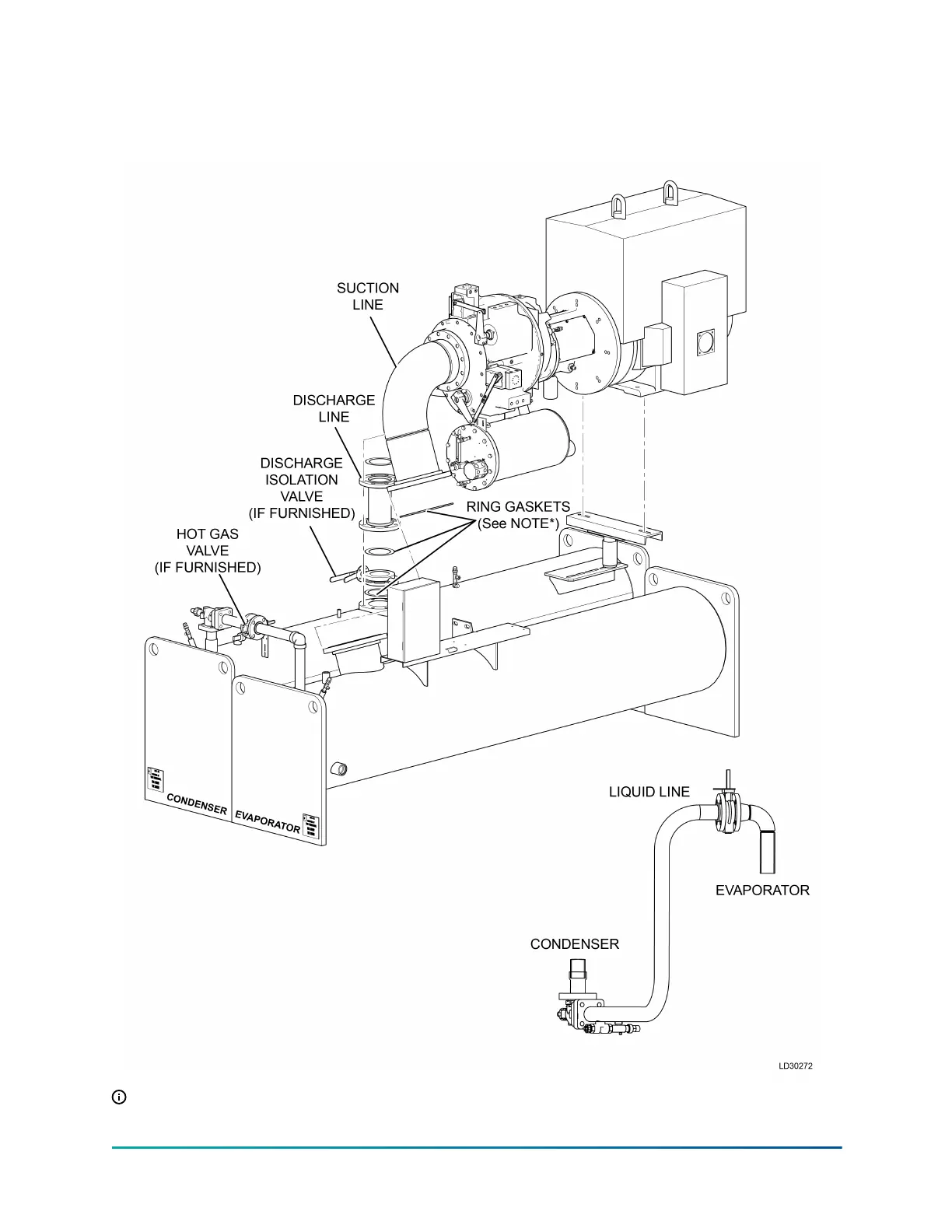

Figure 6: Form 3 shipment (Q3-Q8 compressors with falling film)
Note: * Ring Gaskets NOT used for elastomer-lined flange faces at the isolation valve.
17Model YK Chillers (Style H) Field Reassembly for Form 3, 7, 9, and 10 Shipment
