York YLUA Series - Isolator Location Diagrams

FORM 150.63-EG4 (1012)
31JOHNSON CONTROLS

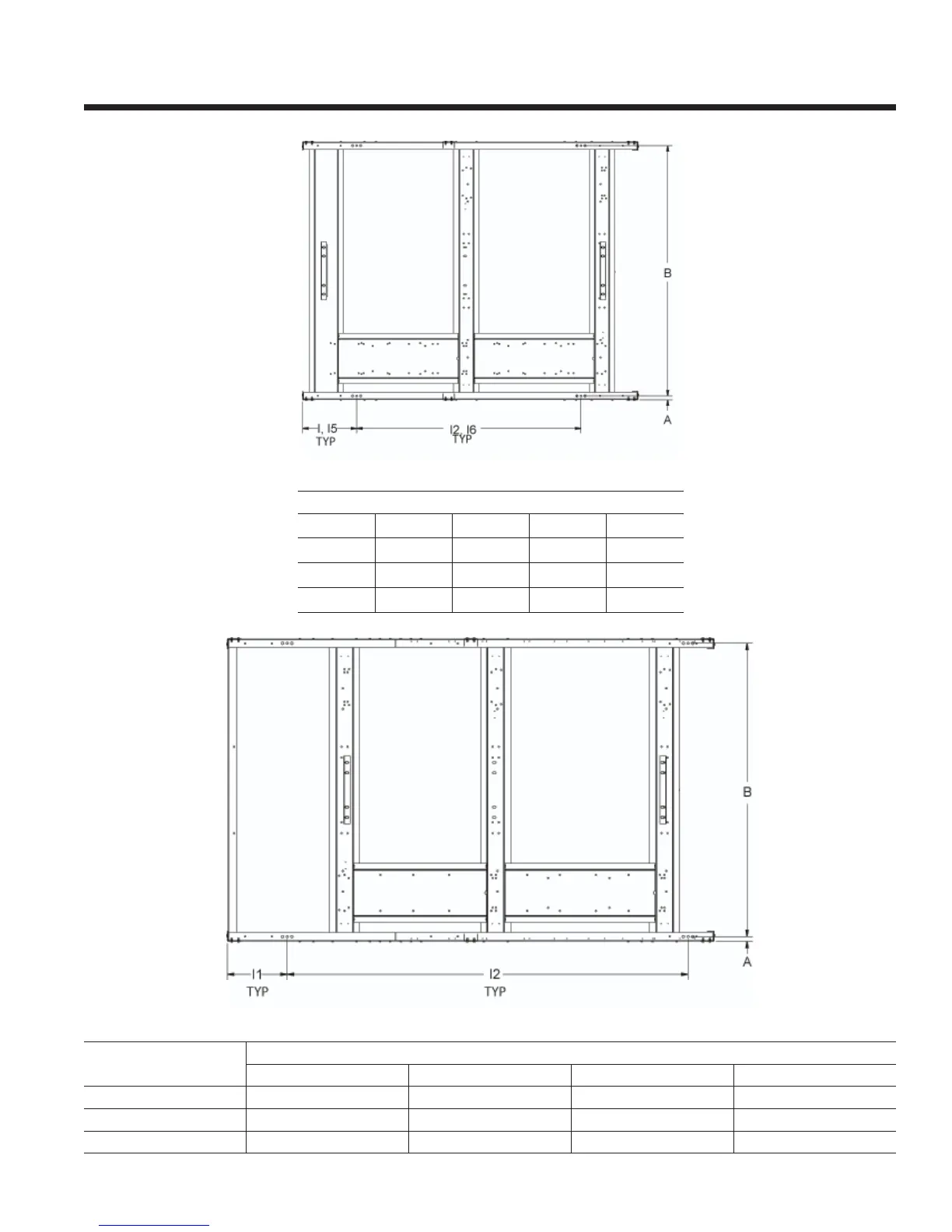

Isolator Locations
AVM LOCATIONS
YLUA
MODEL
I1 I2 A B
YLU-
A0248YE
19.5 76.6 1.36 85.5
YLU-
A0278YE
19.5 76.6 1.36 85.5
YLU-
A0298YE
19.5 76.6 1.36 85.5
YLUA MODEL
AVM LOCATIONS
I1 I2 A B
YLUA0308YE 7.6 117.2 1.4 85.5
YLUA0338YE 7.6 117.2 1.4 85.5
YLUA0408YE 7.6 117.2 1.4 85.5
