York ZF SERIES Installation Manual

5725848-XIM-A-0319
Johnson Controls Ducted Systems 25

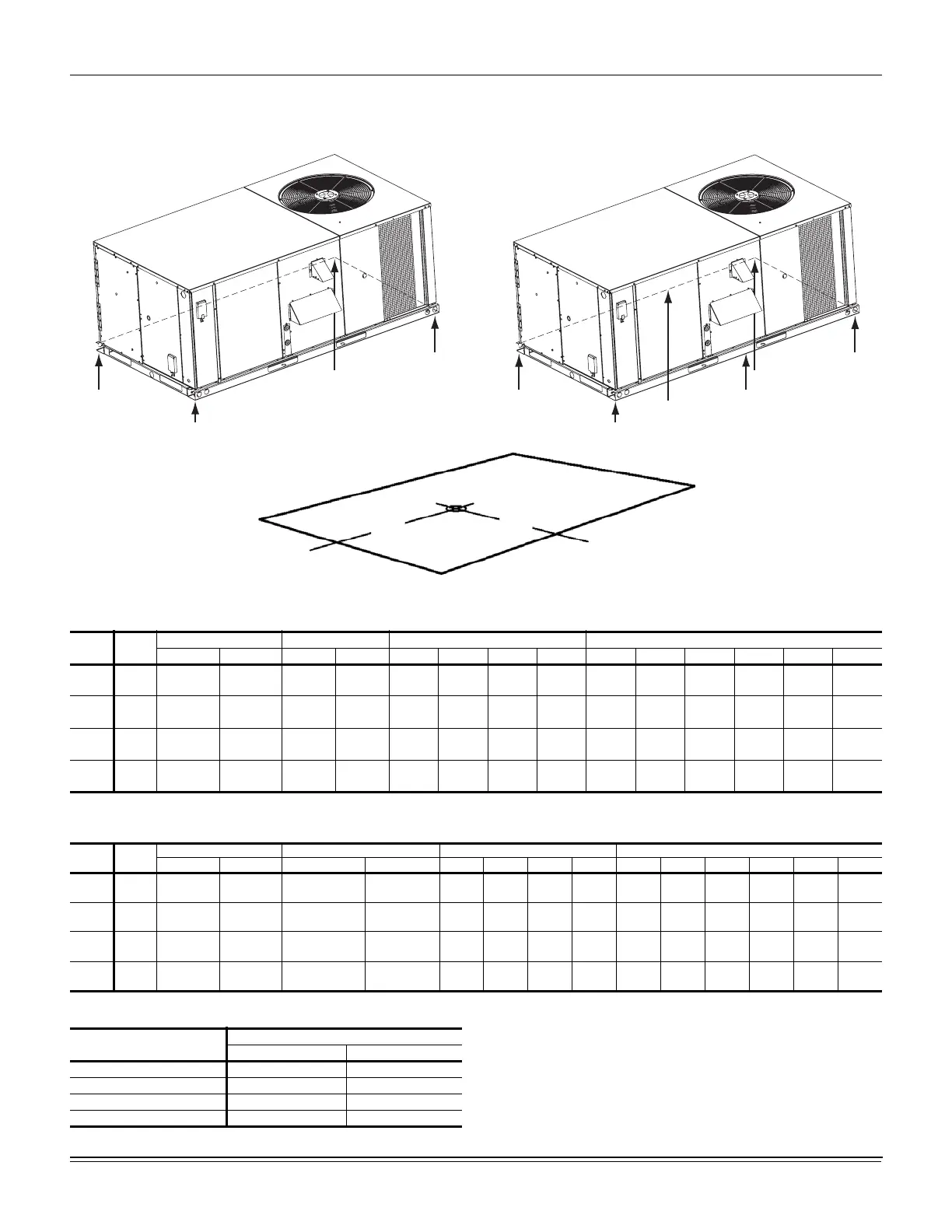

ZF036-076 unit weights
Figure 12: Unit 4 point load weight Figure 13: Unit 6 point load weight
A
D
B
Front
C
A
F
C
B
Front
D
E
Table 7: ZF036-076 imperial
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
036
(3.0)
ZF036
502 497 39.6 19.4 111 103 136 146 75 72 68 89 94 99
048
(4.0)
ZF048 520 515 40.1 19.2 114 108 145 152 77 74 72 96 99 102
060
(5.0)
ZF060
554 549 39.2 18.9 121 110 151 166 82 77 72 99 106 113
076
(6.3)
ZF076 584 579 37.7 18.4 128 109 156 185 88 79 71 101 113 127
X
Y
LEFT
FRONT
Table 8: ZF036-076 metric
Size
(Tons)
Model
Weight (kg.) Center of Gravity (mm) 4 point Load Location (kg.) 6 point Load Location (kg.)
ShippingOperating X Y ABCDABCDEF
036
(3.0)
ZF036 228 225 1005.8 492.8 50.3 46.7 61.7 61.7 34.0 32.7 30.8 40.4 42.6 44.9
048
(4.0)
ZF048 228.9 231.1 1018.5 487.7 50.7 48.2 64.5 67.8 34.1 32.9 31.9 42.6 44.1 45.6
060
(5.0)
ZF060 251 249 995.7 480.1 54.9 49.9 68.5 75.3 37.2 34.9 32.7 44.9 48.1 51.3
076
(6.3)
ZF076 265 263 957.6 467.4 58.1 49.4 70.8 83.9 39.9 35.8 32.2 45.8 51.3 57.6
Table 9: ZF036-076 unit accessory weights
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 55 50
Power Exhaust 55 50
Electric Heat
1
28 28
Gas Heat
2
70 70
1. Weight given is for the maximum heater size available
(30KW).
2. Weight given is for the maximum number of tube heat
exchangers available (5 tube).
